ATS-53330R-C1-R0

Active

Advanced Thermal Solutions Inc.

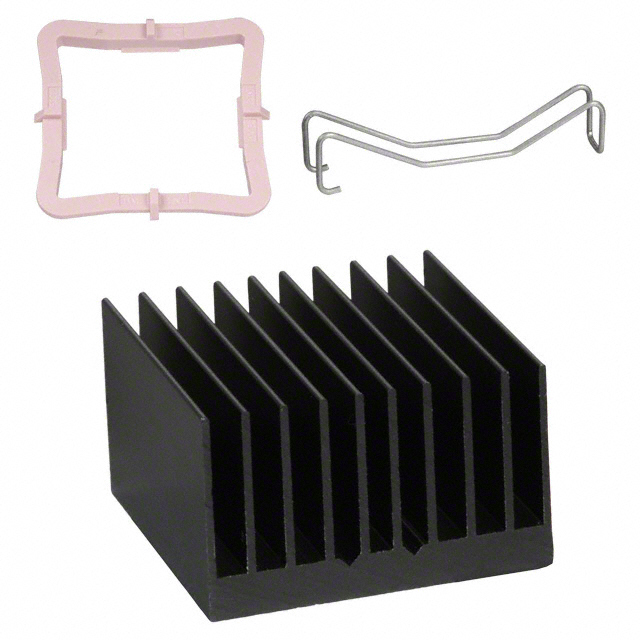

HEAT SINKS MAXIGRIP BGA HEAT SINK W/ATTACHMENT, STRAIGHT FIN, BLACK, T766, 33X33X19.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet maxiGRIP Installation Guide +1

ATS-53330R-C1-R0

Active

Advanced Thermal Solutions Inc.

HEAT SINKS MAXIGRIP BGA HEAT SINK W/ATTACHMENT, STRAIGHT FIN, BLACK, T766, 33X33X19.5MM

Deep-Dive with AI

DocumentsDatasheet maxiGRIP Installation Guide +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATS-53330R-C1-R0

Attachment Method	Clip, Thermal Material
Fin Height	0.768 in
Fin Height	19.5 mm
Length	32.99 mm
Length	1.299 in
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	BGA
Shape	Square, Fins
Thermal Resistance @ Forced Air Flow	200 LFM, 4.1 °C/W
Type	Top Mount
Width [x]	32.99 mm
Width [x]	1.299 in

ATS-531 Series

Heat Sinks maxiGRIP BGA Heat Sink w/Attachment, Straight Fin, Black, T766, 31x31x9.5mm

Part	Type	Attachment Method	Material	Thermal Resistance @ Forced Air Flow	Shape	Width [y]	Width [y]	Package Cooled	Material Finish	Fin Height	Fin Height	Length	Length	Fin Height [z]	Fin Height [z]	Length [x]	Length [x]	Width [x]	Width [x]	Width
Advanced Thermal Solutions Inc. ATS-53375R-C1-R0	Top Mount	Clip Thermal Material	Aluminum	3.5 °C/W	Fins Square	1.476 in	37.5 mm	BGA	Black Anodized	0.768 in	19.5 mm	37.5 mm	1.476 in
Advanced Thermal Solutions Inc. ATS-53425K-C1-R0	Top Mount	Clip Thermal Material	Aluminum	4.3 °C/W 200 LFM	Fins Square			BGA	Black Anodized			42.5 mm	1.673 in	0.571 in	14.5 mm
Advanced Thermal Solutions Inc. ATS-53230D-C1-R0	Top Mount	Clip Thermal Material	Aluminum	16.8 °C/W 200 LFM	Fins Square	0.906 in	23.01 mm	BGA	Black Anodized	0.374 in	9.5 mm					23 mm	0.9 in
Advanced Thermal Solutions Inc. ATS-53330R-C1-R0	Top Mount	Clip Thermal Material	Aluminum	4.1 °C/W 200 LFM	Fins Square			BGA	Black Anodized	0.768 in	19.5 mm	32.99 mm	1.299 in					32.99 mm	1.299 in
Advanced Thermal Solutions Inc. ATS-53450K-C1-R0	Top Mount	Clip Thermal Material	Aluminum	4.1 °C/W 200 LFM	Fins Square			BGA	Black Anodized			45 mm		0.571 in	14.5 mm		1.772 "		1.772 in	45 mm
Advanced Thermal Solutions Inc. ATS-53450R-C1-R0	Top Mount	Clip Thermal Material	Aluminum	2.8 °C/W 200 LFM	Fins Square			BGA	Black Anodized	0.768 in	19.5 mm	45 mm					1.772 "		1.772 in	45 mm
Advanced Thermal Solutions Inc. ATS-53325D-C1-R0	Top Mount	Clip Thermal Material	Aluminum	11.3 °C/W 200 LFM	Fins Square	1.28 in	32.51 mm	BGA	Black Anodized	0.374 in	9.5 mm	32.51 mm	1.28 in
Advanced Thermal Solutions Inc. ATS-53350R-C1-R0	Top Mount	Clip Thermal Material	Aluminum	3.8 °C/W 200 LFM	Fins Square			BGA	Black Anodized	0.768 in	19.5 mm					35 mm	1.378 in		1.378 in	35 mm
Advanced Thermal Solutions Inc. ATS-53190D-C1-R0	Top Mount	Clip Thermal Material	Aluminum	22 °C/W 200 LFM	Fins Square	0.748 in	19 mm	BGA	Black Anodized	0.374 in	9.5 mm	19 mm	0.748 in
Advanced Thermal Solutions Inc. ATS-53230K-C1-R0	Top Mount	Clip Thermal Material	Aluminum	8.8 °C/W 200 LFM	Fins Square	0.906 in	23.01 mm	BGA	Black Anodized					0.571 in	14.5 mm	23 mm	0.9 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.96
		10	$ 13.19
		25	$ 12.41
		50	$ 11.64
		100	$ 10.86
		250	$ 10.08
		500	$ 9.89
		1000	$ 9.70
Sager	N/A	1	$ 15.03
		5	$ 14.03
		10	$ 13.58
		25	$ 12.76
		50	$ 12.03
		100	$ 11.22
		500	$ 10.93

Description

General part information

ATS-531 Series

Heat Sinks maxiGRIP BGA Heat Sink w/Attachment, Straight Fin, Black, T766, 31x31x9.5mm

ATS-53330R-C1-R0

Deep-Dive with AI

ATS-53330R-C1-R0

Deep-Dive with AI

Technical Specifications

ATS-531 Series

Pricing

Description

ATS-531 Series

Documents

Datasheet

maxiGRIP Installation Guide

maxiGRIP Clearance Guideline

ATS-531 Series
