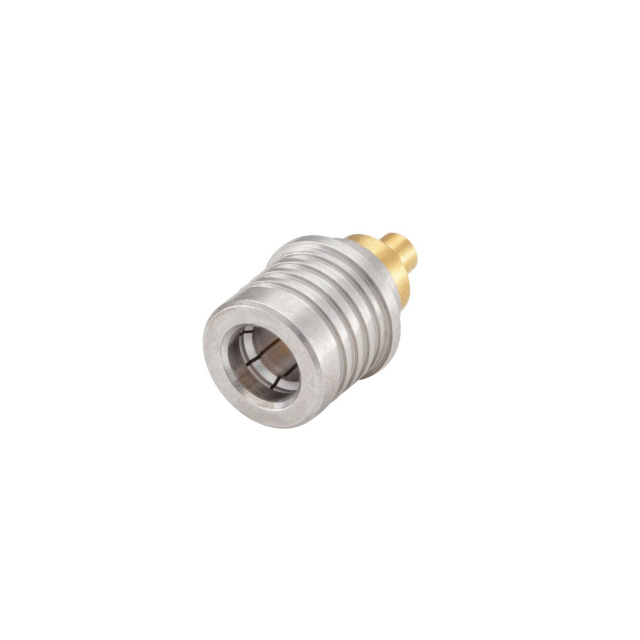

28S107-271N5

Active

Rosenberger

QMA STRAIGHT PLUG

Search across all available documentation for this part.

Active

Rosenberger

QMA STRAIGHT PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	28S107-271N5

Body Material	Brass, Bronze
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp
Voltage Rating	250 VDC

Part	Cable Group	Cable Group	Number of Ports	Center Contact Plating	Body Material	Dielectric Material	Shield Termination	Body Finish	Connector Type	Mounting Type	Frequency - Max [Max]	Center Contact Material	Housing Color	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Voltage Rating	Fastening Type
Rosenberger 28S107-307N5	223 400	RG-142B	1	Gold	Brass Bronze	Polytetrafluoroethylene (PTFE)	Crimp	White Bronze	Male Pin Plug	Free Hanging (In-Line)	18 GHz	Brass	Silver	Solder	85 °C	-40 °C	50 Ohms	480 V	Snap-On
Rosenberger 28S107-271N5		RG-405 (.085" Semi Rigid)	1	Gold	Brass Bronze	Polytetrafluoroethylene (PTFE)	Crimp		Male Pin Plug	Free Hanging (In-Line)	18 GHz	Beryllium Copper	Gold	Solder	85 °C	-40 °C	50 Ohms	250 VDC	Snap-On
Rosenberger 28S107-303N5		RG-316	1	Gold	Brass Bronze	Polytetrafluoroethylene (PTFE)	Crimp	White Bronze	Male Pin Plug	Free Hanging (In-Line)	18 GHz	Brass	Silver	Solder	85 °C	-40 °C	50 Ohms	350 V	Snap-On
Rosenberger 28S107-103N5		RG-316	1	Gold	Brass Bronze	Polytetrafluoroethylene (PTFE)	Crimp	White Bronze	Male Pin Plug	Free Hanging (In-Line)	18 GHz	Brass	Silver	Solder	85 °C	-40 °C	50 Ohms	350 V	Snap-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	400	$ 9.89

General part information

QMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
