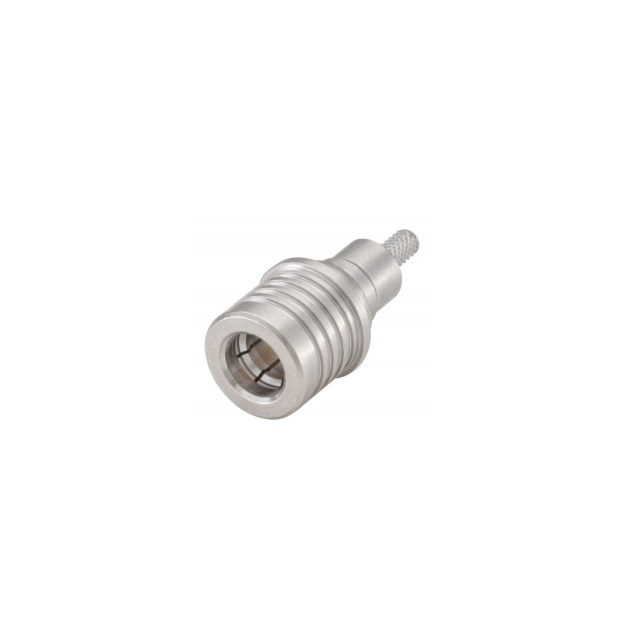

28S107-103N5

Active

Rosenberger

QMA STRAIGHT PLUG

Search across all available documentation for this part.

Active

Rosenberger

QMA STRAIGHT PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	28S107-103N5

Body Finish	White Bronze
Body Material	Brass, Bronze
Cable Group	RG-316
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp
Voltage Rating	350 V

Part	Cable Group	Cable Group	Number of Ports	Center Contact Plating	Body Material	Dielectric Material	Shield Termination	Body Finish	Connector Type	Mounting Type	Frequency - Max [Max]	Center Contact Material	Housing Color	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Voltage Rating	Fastening Type
Rosenberger 28S107-307N5	223 400	RG-142B	1	Gold	Brass Bronze	Polytetrafluoroethylene (PTFE)	Crimp	White Bronze	Male Pin Plug	Free Hanging (In-Line)	18 GHz	Brass	Silver	Solder	85 °C	-40 °C	50 Ohms	480 V	Snap-On
Rosenberger 28S107-271N5		RG-405 (.085" Semi Rigid)	1	Gold	Brass Bronze	Polytetrafluoroethylene (PTFE)	Crimp		Male Pin Plug	Free Hanging (In-Line)	18 GHz	Beryllium Copper	Gold	Solder	85 °C	-40 °C	50 Ohms	250 VDC	Snap-On
Rosenberger 28S107-303N5		RG-316	1	Gold	Brass Bronze	Polytetrafluoroethylene (PTFE)	Crimp	White Bronze	Male Pin Plug	Free Hanging (In-Line)	18 GHz	Brass	Silver	Solder	85 °C	-40 °C	50 Ohms	350 V	Snap-On
Rosenberger 28S107-103N5		RG-316	1	Gold	Brass Bronze	Polytetrafluoroethylene (PTFE)	Crimp	White Bronze	Male Pin Plug	Free Hanging (In-Line)	18 GHz	Brass	Silver	Solder	85 °C	-40 °C	50 Ohms	350 V	Snap-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 7.80

General part information

QMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder

Technical documentation and resources

No documents available
