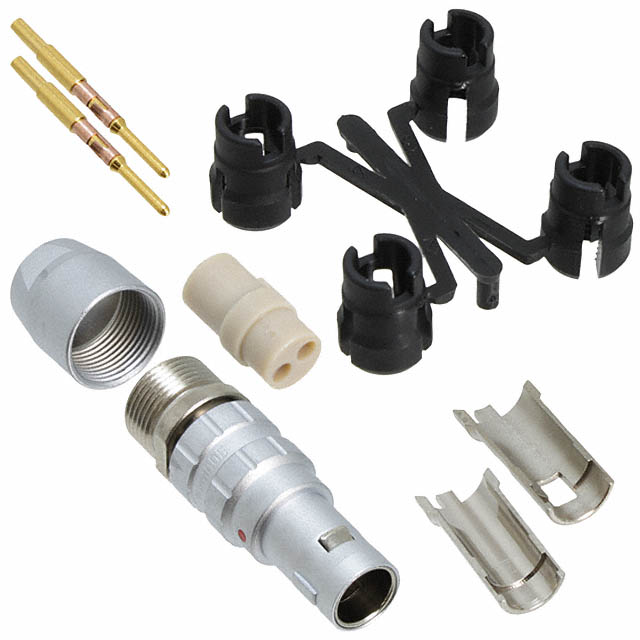

JBXFD0G02MSSDSR

Active

Souriau-Sunbank by Eaton

CONN PLUG MALE 2P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

JBXFD0G02MSSDSR

Active

Souriau-Sunbank by Eaton

CONN PLUG MALE 2P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JBXFD0G02MSSDSR

Applications	Instrumentation, Medical, Telecommunications, Industrial
Backshell Material, Plating	Brass, Chrome over Nickel
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.5 µm
Contact Finish Thickness - Mating	19.7 µin
Current Rating (Amps)	10 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP40
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	0
Shielding	Shielded
Voltage Rating	660 V

JBXFD0G Series

Part	Applications	Shell Finish	Orientation	Number of Positions	Shielding	Material Flammability Rating	Fastening Type	Shell Material	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insert Material	Connector Type	Mounting Type	Backshell Material, Plating	Current Rating (Amps)	Voltage Rating	Features	Color	Contact Finish - Mating	Termination
Souriau-Sunbank by Eaton JBXFD0G07MSS35PR	Industrial Instrumentation Medical Telecommunications	Chrome over Nickel	G	7	Shielded	UL94 V-0	Push-Pull	Brass	Metal	125 °C	-40 °C	IP40	0.5 µm	19.7 µin	Polyetheretherketone (PEEK)	Male Pins Plug	Free Hanging (In-Line)	Brass Chrome over Nickel	2.5 A	320 V	Backshell	Silver	Gold
Souriau-Sunbank by Eaton JBXFD0G02MCSDSMR	Industrial Instrumentation Medical Telecommunications	Chrome over Nickel	G	2	Shielded	UL94 V-0	Push-Pull	Brass	Metal	125 °C	-40 °C	IP40	0.5 µm	19.7 µin	Polyetheretherketone (PEEK)	Male Pins Plug	Free Hanging (In-Line)	Brass Chrome over Nickel	10 A	660 V	Backshell Boot Adapter	Silver	Gold	Crimp
Souriau-Sunbank by Eaton JBXFD0G04MSSDSR	Industrial Instrumentation Medical Telecommunications	Chrome over Nickel	G	4	Shielded	UL94 V-0	Push-Pull	Brass	Metal	125 °C	-40 °C	IP40	0.5 µm	19.7 µin	Polyetheretherketone (PEEK)	Male Pins Plug	Free Hanging (In-Line)	Brass Chrome over Nickel	7 A	660 V	Backshell	Silver	Gold
Souriau-Sunbank by Eaton JBXFD0G04MSS35SR	Industrial Instrumentation Medical Telecommunications	Chrome over Nickel	G	4	Shielded	UL94 V-0	Push-Pull	Brass	Metal	125 °C	-40 °C	IP40	0.5 µm	19.7 µin	Polyetheretherketone (PEEK)	Male Pins Plug	Free Hanging (In-Line)	Brass Chrome over Nickel	7 A	660 V	Backshell	Silver	Gold
Souriau-Sunbank by Eaton JBXFD0G02FCSDSMR	Industrial Instrumentation Medical Telecommunications	Chrome over Nickel	G	2	Shielded	UL94 V-0	Push-Pull	Brass	Metal	125 °C	-40 °C	IP40	0.5 µm	19.7 µin	Polyetheretherketone (PEEK)	Female Sockets Plug	Free Hanging (In-Line)	Brass Chrome over Nickel	10 A	660 V	Backshell Boot Adapter	Silver	Gold	Crimp
Souriau-Sunbank by Eaton JBXFD0G05MSSDSR	Industrial Instrumentation Medical Telecommunications	Chrome over Nickel	G		Shielded	UL94 V-0	Push-Pull	Brass	Metal	125 °C	-40 °C	IP40	0.5 µm	19.7 µin	Polyetheretherketone (PEEK)	Male Pins Plug	Free Hanging (In-Line)	Brass Chrome over Nickel	6.5 A	400 V	Backshell	Silver	Gold
Souriau-Sunbank by Eaton JBXFD0G02MSSDSR	Industrial Instrumentation Medical Telecommunications	Chrome over Nickel	G	2	Shielded	UL94 V-0	Push-Pull	Brass	Metal	125 °C	-40 °C	IP40	0.5 µm	19.7 µin	Polyetheretherketone (PEEK)	Male Pins Plug	Free Hanging (In-Line)	Brass Chrome over Nickel	10 A	660 V	Backshell	Silver	Gold
Souriau-Sunbank by Eaton JBXFD0G02FCSDSR	Industrial Instrumentation Medical Telecommunications	Chrome over Nickel	G	2	Shielded	UL94 V-0	Push-Pull	Brass	Metal	125 °C	-40 °C	IP40	0.5 µm	19.7 µin	Polyetheretherketone (PEEK)	Female Sockets Plug	Free Hanging (In-Line)	Brass Chrome over Nickel	10 A	660 V	Backshell	Silver	Gold	Crimp
Souriau-Sunbank by Eaton JBXFD0G04MCSDSMR	Industrial Instrumentation Medical Telecommunications	Chrome over Nickel	G	4	Shielded	UL94 V-0	Push-Pull	Brass	Metal	125 °C	-40 °C	IP40	0.5 µm	19.7 µin	Polyetheretherketone (PEEK)	Male Pins Plug	Free Hanging (In-Line)	Brass Chrome over Nickel	7 A	660 V	Backshell Boot Adapter	Silver	Gold	Crimp
Souriau-Sunbank by Eaton JBXFD0G05MSSDSMR	Industrial Instrumentation Medical Telecommunications	Chrome over Nickel	G		Shielded	UL94 V-0	Push-Pull	Brass	Metal	125 °C	-40 °C	IP40	0.5 µm	19.7 µin	Polyetheretherketone (PEEK)	Male Pins Plug	Free Hanging (In-Line)	Brass Chrome over Nickel	6.5 A	400 V	Backshell Boot Adapter	Silver	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.96
		10	$ 28.86
		25	$ 27.62
		50	$ 26.72
		100	$ 25.83
		250	$ 24.41

Description

General part information

JBXFD0G Series

2 Position Circular Connector Plug, Male Pins Solder Cup
