JBXFD0G02MCSDSMR
ActiveSouriau-Sunbank by Eaton

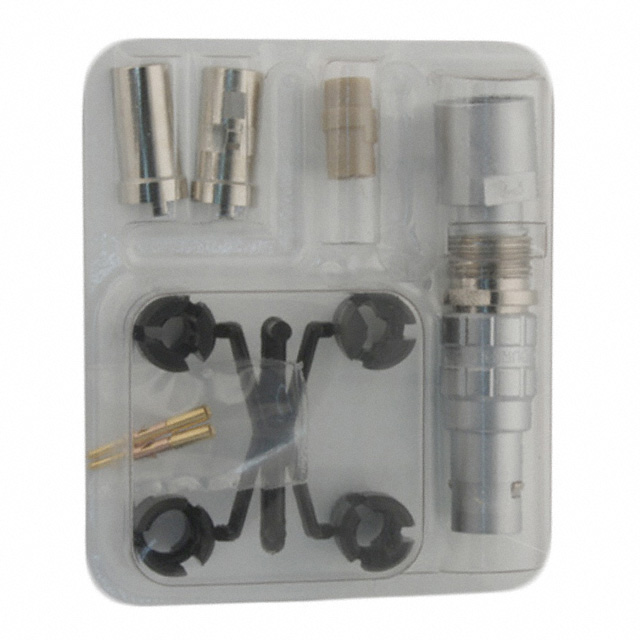

CONN PLUG MALE 2POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
JBXFD0G02MCSDSMR
ActiveSouriau-Sunbank by Eaton
CONN PLUG MALE 2POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JBXFD0G02MCSDSMR |
|---|---|
| Applications | Instrumentation, Medical, Telecommunications, Industrial |
| Backshell Material, Plating | Brass, Chrome over Nickel |
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 0.5 µm |
| Contact Finish Thickness - Mating | 19.7 µin |
| Current Rating (Amps) | 10 A |
| Fastening Type | Push-Pull |
| Features | Boot Adapter, Backshell |
| Ingress Protection | IP40 |
| Insert Material | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | G |
| Primary Material | Metal |
| Shell Finish | Chrome over Nickel |
| Shell Material | Brass |
| Shell Size - Insert | 0 |
| Shielding | Shielded |
| Termination | Crimp |
| Voltage Rating | 660 V |
JBXFD0G Series
| Part | Applications | Shell Finish | Orientation | Number of Positions | Shielding | Material Flammability Rating | Fastening Type | Shell Material | Primary Material | Shell Size - Insert | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insert Material | Connector Type | Mounting Type | Backshell Material, Plating | Current Rating (Amps) | Voltage Rating | Features | Color | Contact Finish - Mating | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Souriau-Sunbank by Eaton | Industrial Instrumentation Medical Telecommunications | Chrome over Nickel | G | 7 | Shielded | UL94 V-0 | Push-Pull | Brass | Metal | 0 | 125 °C | -40 °C | IP40 | 0.5 µm | 19.7 µin | Polyetheretherketone (PEEK) | Male Pins Plug | Free Hanging (In-Line) | Brass Chrome over Nickel | 2.5 A | 320 V | Backshell | Silver | Gold | |
Souriau-Sunbank by Eaton | Industrial Instrumentation Medical Telecommunications | Chrome over Nickel | G | 2 | Shielded | UL94 V-0 | Push-Pull | Brass | Metal | 0 | 125 °C | -40 °C | IP40 | 0.5 µm | 19.7 µin | Polyetheretherketone (PEEK) | Male Pins Plug | Free Hanging (In-Line) | Brass Chrome over Nickel | 10 A | 660 V | Backshell Boot Adapter | Silver | Gold | Crimp |
Souriau-Sunbank by Eaton | Industrial Instrumentation Medical Telecommunications | Chrome over Nickel | G | 4 | Shielded | UL94 V-0 | Push-Pull | Brass | Metal | 0 | 125 °C | -40 °C | IP40 | 0.5 µm | 19.7 µin | Polyetheretherketone (PEEK) | Male Pins Plug | Free Hanging (In-Line) | Brass Chrome over Nickel | 7 A | 660 V | Backshell | Silver | Gold | |
Souriau-Sunbank by Eaton | Industrial Instrumentation Medical Telecommunications | Chrome over Nickel | G | 4 | Shielded | UL94 V-0 | Push-Pull | Brass | Metal | 0 | 125 °C | -40 °C | IP40 | 0.5 µm | 19.7 µin | Polyetheretherketone (PEEK) | Male Pins Plug | Free Hanging (In-Line) | Brass Chrome over Nickel | 7 A | 660 V | Backshell | Silver | Gold | |
Souriau-Sunbank by Eaton | Industrial Instrumentation Medical Telecommunications | Chrome over Nickel | G | 2 | Shielded | UL94 V-0 | Push-Pull | Brass | Metal | 0 | 125 °C | -40 °C | IP40 | 0.5 µm | 19.7 µin | Polyetheretherketone (PEEK) | Female Sockets Plug | Free Hanging (In-Line) | Brass Chrome over Nickel | 10 A | 660 V | Backshell Boot Adapter | Silver | Gold | Crimp |
Souriau-Sunbank by Eaton | Industrial Instrumentation Medical Telecommunications | Chrome over Nickel | G | Shielded | UL94 V-0 | Push-Pull | Brass | Metal | 0 | 125 °C | -40 °C | IP40 | 0.5 µm | 19.7 µin | Polyetheretherketone (PEEK) | Male Pins Plug | Free Hanging (In-Line) | Brass Chrome over Nickel | 6.5 A | 400 V | Backshell | Silver | Gold | ||
Souriau-Sunbank by Eaton | Industrial Instrumentation Medical Telecommunications | Chrome over Nickel | G | 2 | Shielded | UL94 V-0 | Push-Pull | Brass | Metal | 0 | 125 °C | -40 °C | IP40 | 0.5 µm | 19.7 µin | Polyetheretherketone (PEEK) | Male Pins Plug | Free Hanging (In-Line) | Brass Chrome over Nickel | 10 A | 660 V | Backshell | Silver | Gold | |
Souriau-Sunbank by Eaton | Industrial Instrumentation Medical Telecommunications | Chrome over Nickel | G | 2 | Shielded | UL94 V-0 | Push-Pull | Brass | Metal | 0 | 125 °C | -40 °C | IP40 | 0.5 µm | 19.7 µin | Polyetheretherketone (PEEK) | Female Sockets Plug | Free Hanging (In-Line) | Brass Chrome over Nickel | 10 A | 660 V | Backshell | Silver | Gold | Crimp |
Souriau-Sunbank by Eaton | Industrial Instrumentation Medical Telecommunications | Chrome over Nickel | G | 4 | Shielded | UL94 V-0 | Push-Pull | Brass | Metal | 0 | 125 °C | -40 °C | IP40 | 0.5 µm | 19.7 µin | Polyetheretherketone (PEEK) | Male Pins Plug | Free Hanging (In-Line) | Brass Chrome over Nickel | 7 A | 660 V | Backshell Boot Adapter | Silver | Gold | Crimp |
Souriau-Sunbank by Eaton | Industrial Instrumentation Medical Telecommunications | Chrome over Nickel | G | Shielded | UL94 V-0 | Push-Pull | Brass | Metal | 0 | 125 °C | -40 °C | IP40 | 0.5 µm | 19.7 µin | Polyetheretherketone (PEEK) | Male Pins Plug | Free Hanging (In-Line) | Brass Chrome over Nickel | 6.5 A | 400 V | Backshell Boot Adapter | Silver | Gold |
