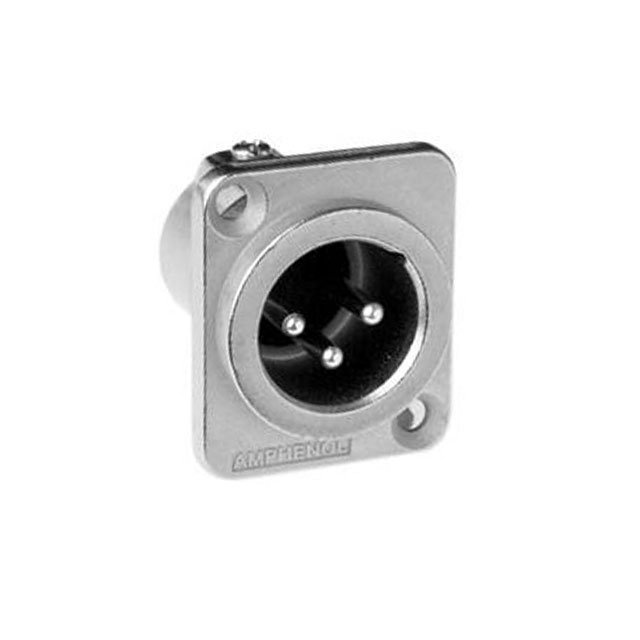

AC3MMDZ - AC3MMDZ

AC3MMDZ

Active
AMPHENOL AUDIO

XLR CONNECTOR, 3 CONTACTS, PLUG, PANEL MOUNT, SILVER PLATED CONTACTS, ZINC ALLOY BODY, AC SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAudio XLR CatalogDatasheet+2
AC3MMDZ - AC3MMDZ

AC3MMDZ

Active
AMPHENOL AUDIO

XLR CONNECTOR, 3 CONTACTS, PLUG, PANEL MOUNT, SILVER PLATED CONTACTS, ZINC ALLOY BODY, AC SERIES

Deep-Dive with AI

DocumentsAudio XLR CatalogDatasheet+2

Technical Specifications

Parameters and characteristics for this part

SpecificationAC3MMDZ
ColorSilver
Connector TypeReceptacle, Male Pins
Contact Finish - MatingSilver
Fastening TypePush-Pull
FeaturesGround
Ingress ProtectionIP40
Mounting FeatureFlange
Operating Temperature [Max]75 ░C
Operating Temperature [Min]-25 °C
OrientationKeyed
Primary MaterialMetal
Shell FinishNickel
Shell MaterialZinc Die Cast
Shell Size - InsertXLR
ShieldingShielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 4.82
10$ 4.38
25$ 4.15
50$ 4.05
100$ 3.86
250$ 3.38
500$ 3.28
1000$ 2.80
2500$ 2.60
NewarkEach 500$ 3.08
1000$ 2.77

Description

General part information

AC3M Series

The AC series Musician range XLR Cable Connector complies with IEC268-12 and AES 14-1992 standards. It features the unique Australian design and patented "Jaws" cable retention system. The AC series connector can be quickly and easily assembled without screws just by hand or portable termination tool (part number T2860).
