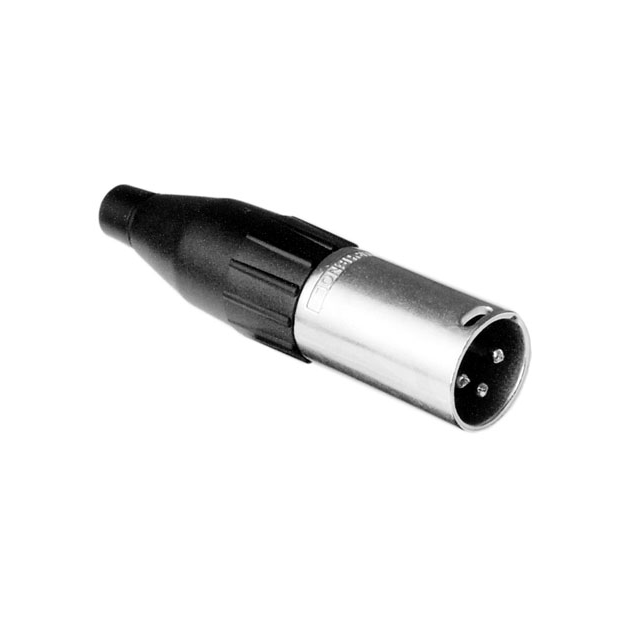

AC3M
ActiveAMPHENOL AUDIO
CONN RCPT MALE XLR 3P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
AC3M
ActiveAMPHENOL AUDIO
CONN RCPT MALE XLR 3P SOLDER CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AC3M |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Silver |
| Fastening Type | Latch Holder |
| Features | Cable Clamp, Backshell |
| Ingress Protection | IP40 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -25 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | XLR |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.00 | |
| 10 | $ 4.54 | |||
| 25 | $ 4.30 | |||
| 50 | $ 4.20 | |||
| 100 | $ 4.00 | |||
| 250 | $ 3.50 | |||
| 500 | $ 3.40 | |||
| 1000 | $ 2.90 | |||
| 2500 | $ 2.70 | |||
Description
General part information
AC3M Series
3 Position Circular Connector Receptacle, Male Pins Solder Cup
