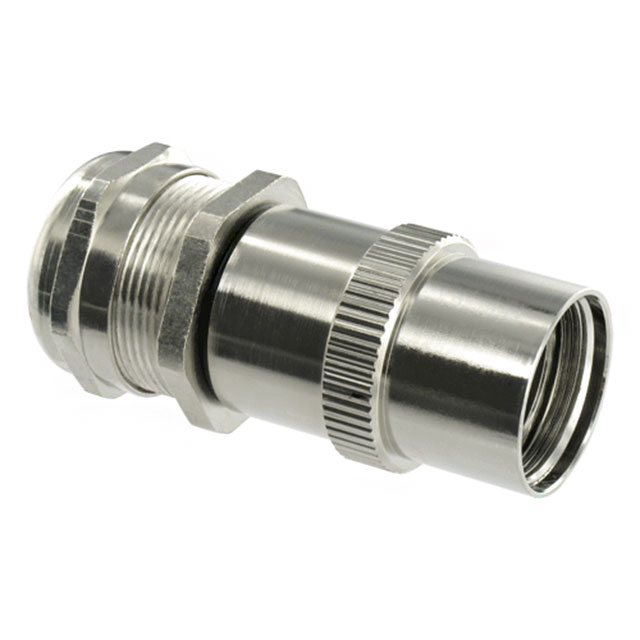

UT024JCL
ActiveSouriau-Sunbank by Eaton
LONG CABLE CLAMP W/LARGE STR. RELIEF NUT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
UT024JCL
ActiveSouriau-Sunbank by Eaton
LONG CABLE CLAMP W/LARGE STR. RELIEF NUT
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | UT024JCL |
|---|---|
| Cable Exit | 180 ° |
| Cable Opening [Max] [diameter] | 24 mm |
| Cable Opening [Max] [diameter] | 0.945 in |
| Cable Opening [Min] [diameter] | 0.591 in |
| Cable Opening [Min] [diameter] | 15 mm |
| Color | Silver |
| Features | Strain Relief, Sealing Gland |
| For Use With/Related Products | Trim Trio® UTO and UTOW Connectors |
| Ingress Protection | IP68, IP69K |
| Material | Brass |
| Material Flammability Rating | UL94 V-0 |
| Shell Size - Insert | 24 |
| Shielding | Unshielded |
| Thread Size | PG29 |
| Type | Backshell, Cable Clamp |
UT024 Series
| Part | Material | For Use With/Related Products | Type | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Shell Size - Insert | Color | Cable Exit | Thread Size | Shielding | Ingress Protection | Features | Material Flammability Rating | Accessory Type | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Includes | Plating | Cable Opening [custom] | Cable Opening [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Souriau-Sunbank by Eaton | Metal | Trim Trio® UTO and UTOW Connectors | Backshell Heat Shrink Adapter | 42.9 mm | 1.689 in | 24 | Silver | 180 ° | 1 7/16-18 UNEF | |||||||||||||
Souriau-Sunbank by Eaton | Brass | Trim Trio® UTO and UTOW Connectors | Backshell Cable Clamp | 24 | Silver | 180 ° | PG29 | Unshielded | IP68 IP69K | Sealing Gland Strain Relief | UL94 V-0 | |||||||||||
Souriau-Sunbank by Eaton | Metal | Trim Trio® UTG Trim Trio® UTO Trim Trio® UTOW Trim Trio® UTP Receptacles | 24 | Silver | Dust Tight Metal Chain Waterproof | Cap (Cover) Dust | ||||||||||||||||
Souriau-Sunbank by Eaton | Brass | Trim Trio® UTO and UTOW Connectors | Backshell Cable Clamp | 24 | Silver | 180 ° | PG29 | Unshielded | IP68 IP69K | Sealing Gland Strain Relief | UL94 V-0 | 24 mm | 0.591 in | 0.945 in | 15 mm | |||||||
Souriau-Sunbank by Eaton | Brass | Trim Trio® UTO and UTOW Connectors | Backshell Cable Clamp | 24 | Silver | 180 ° | Unshielded | IP68 IP69K | Sealing Gland Strain Relief | UL94 V-0 | ||||||||||||
Souriau-Sunbank by Eaton | Aluminum Alloy | Trim Trio® UTO and UTOW Connectors | Backshell Cable Clamp | 24 | Silver | 180 ° | PG29 | Unshielded | IP65 - Dust Tight Water Resistant | Clamp Screws Strain Relief | UL94 V-0 | 1 Backshell 1 Cable Clamp 1 Grommet 2 Screws 2 Washers | Nickel | 1.161 in | 29.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
UT024 Series
Silver Connector Backshell, Cable Clamp PG29 24
