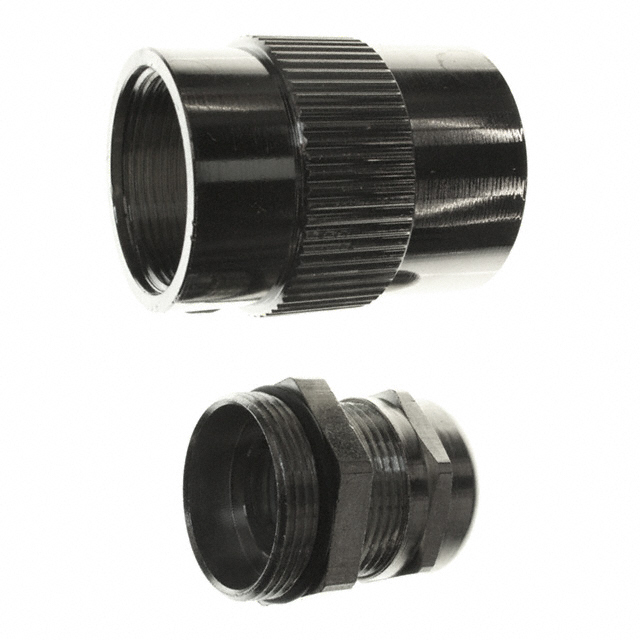

UT024JCS

Active

Souriau-Sunbank by Eaton

CONN BACKSH W/CLMP SZ24 SIL PG29

Deep-Dive with AI

Search across all available documentation for this part.

UT024JCS

Active

Souriau-Sunbank by Eaton

CONN BACKSH W/CLMP SZ24 SIL PG29

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UT024JCS

Cable Exit	180 °
Color	Silver
Features	Strain Relief, Sealing Gland
For Use With/Related Products	Trim Trio® UTO and UTOW Connectors
Ingress Protection	IP68, IP69K
Material	Brass
Material Flammability Rating	UL94 V-0
Shell Size - Insert	24
Shielding	Unshielded
Thread Size	PG29
Type	Backshell, Cable Clamp

UT024 Series

Part	Material	For Use With/Related Products	Type	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Shell Size - Insert	Color	Cable Exit	Thread Size	Shielding	Ingress Protection	Features	Material Flammability Rating	Accessory Type	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Includes	Plating	Cable Opening [custom]	Cable Opening [custom]
Souriau-Sunbank by Eaton UT024AD	Metal	Trim Trio® UTO and UTOW Connectors	Backshell Heat Shrink Adapter	42.9 mm	1.689 in	24	Silver	180 °	1 7/16-18 UNEF
Souriau-Sunbank by Eaton UT024JCS	Brass	Trim Trio® UTO and UTOW Connectors	Backshell Cable Clamp			24	Silver	180 °	PG29	Unshielded	IP68 IP69K	Sealing Gland Strain Relief	UL94 V-0
Souriau-Sunbank by Eaton UT024DCG	Metal	Trim Trio® UTG Trim Trio® UTO Trim Trio® UTOW Trim Trio® UTP Receptacles				24	Silver					Dust Tight Metal Chain Waterproof		Cap (Cover) Dust
Souriau-Sunbank by Eaton UT024JCL	Brass	Trim Trio® UTO and UTOW Connectors	Backshell Cable Clamp			24	Silver	180 °	PG29	Unshielded	IP68 IP69K	Sealing Gland Strain Relief	UL94 V-0		24 mm	0.591 in	0.945 in	15 mm
Souriau-Sunbank by Eaton UT024JCSL	Brass	Trim Trio® UTO and UTOW Connectors	Backshell Cable Clamp			24	Silver	180 °		Unshielded	IP68 IP69K	Sealing Gland Strain Relief	UL94 V-0
Souriau-Sunbank by Eaton UT024JCPGN	Aluminum Alloy	Trim Trio® UTO and UTOW Connectors	Backshell Cable Clamp			24	Silver	180 °	PG29	Unshielded	IP65 - Dust Tight Water Resistant	Clamp Screws Strain Relief	UL94 V-0						1 Backshell 1 Cable Clamp 1 Grommet 2 Screws 2 Washers	Nickel	1.161 in	29.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 28.66

Description

General part information

UT024 Series

Silver Connector Backshell, Cable Clamp PG29 24

Documents

Technical documentation and resources

No documents available
