3025-1511-011
ActiveRadiall USA, Inc.
SLB F STR BHD
Deep-Dive with AI
Search across all available documentation for this part.
3025-1511-011
ActiveRadiall USA, Inc.
SLB F STR BHD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3025-1511-011 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SLB |
| Connector Type | Plug, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Housing Color | Gold |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.38 | |
| 10 | $ 12.74 | |||
| 25 | $ 12.25 | |||
| 50 | $ 11.76 | |||
| 100 | $ 11.11 | |||
| 250 | $ 10.13 | |||
| 500 | $ 9.48 | |||
| 1000 | $ 8.69 | |||
Description
General part information
3025-1511 Series

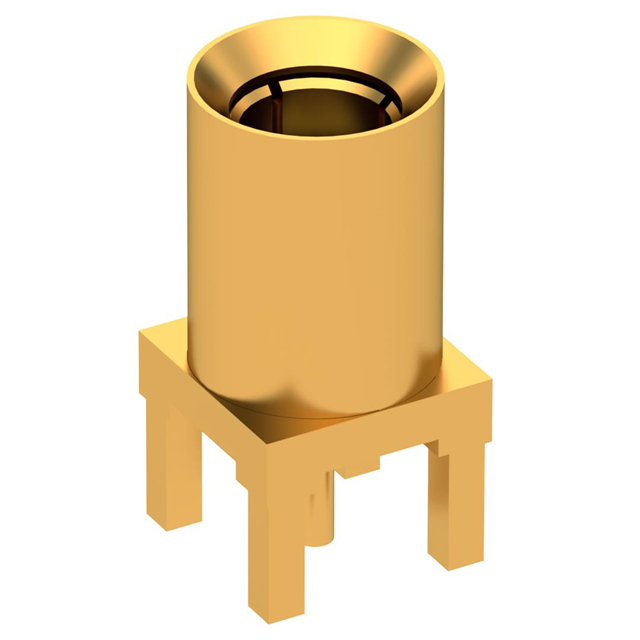

SLB Connector Plug, Female Socket Through Hole Solder
Documents
Technical documentation and resources
No documents available
