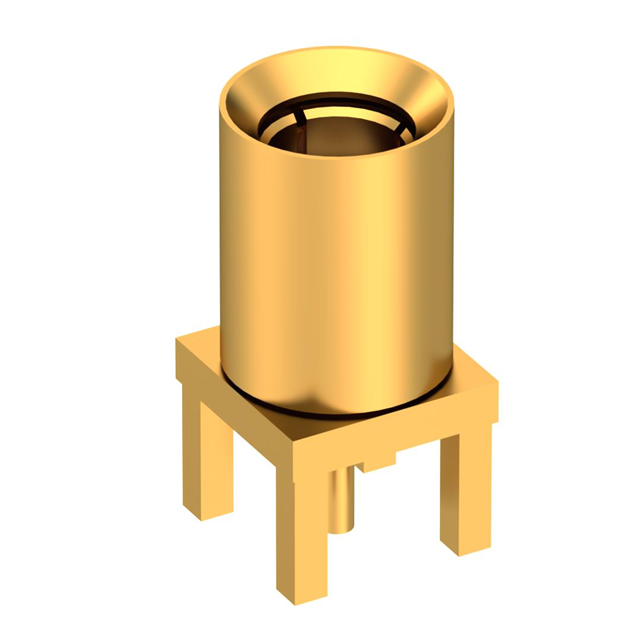

3025-1511-005

Active

Radiall USA, Inc.

SLB F STR NA

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SLB F STR NA

Technical Specifications

Parameters and characteristics for this part

Specification	3025-1511-005

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SLB
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Housing Color	Gold
Mounting Type	Through Hole
Number of Ports	1
Shield Termination	Solder

Part	Shield Termination	Connector Type	Mounting Type	Center Contact Plating	Body Material	Body Finish	Housing Color	Fastening Type	Number of Ports	Center Contact Material	Contact Termination	Dielectric Material	Connector Style	Frequency - Max [Max]	Insertion Loss	Mating Cycles	Impedance	Operating Temperature [Min]	Operating Temperature [Max]
Radiall USA, Inc. 3025-1511-014	Solder	Female Socket Plug	Board Edge End Launch	Gold	Brass	Gold	Gold	Snap-On	1	Beryllium Copper	Solder	Polytetrafluoroethylene (PTFE)	SLB
Radiall USA, Inc. 3025-1511-005	Solder	Female Socket Plug	Through Hole	Gold	Brass	Gold	Gold	Snap-On	1	Beryllium Copper	Solder	Polytetrafluoroethylene (PTFE)	SLB
Radiall USA, Inc. 3025-1511-011	Solder	Female Socket Plug	Through Hole	Gold	Brass	Gold	Gold	Snap-On	1	Beryllium Copper	Solder	Polytetrafluoroethylene (PTFE)	SLB
Radiall USA, Inc. 3025-1511-016	Solder	Female Socket Plug	Board Edge End Launch	Gold	Brass	Gold	Gold	Snap-On	1	Beryllium Copper	Solder	Polytetrafluoroethylene (PTFE)	SLB
Radiall USA, Inc. 3025-1511-000	Solder	Female Socket Plug	Through Hole	Gold	Brass	Gold	Gold	Snap-On	1	Beryllium Copper	Solder	Polytetrafluoroethylene (PTFE)	SLB	4 GHz	0.3 dB	500	50 Ohms	-65 ░C	165 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 13.97

General part information

SLB Connector Plug, Female Socket Through Hole Solder

Technical documentation and resources

No documents available
