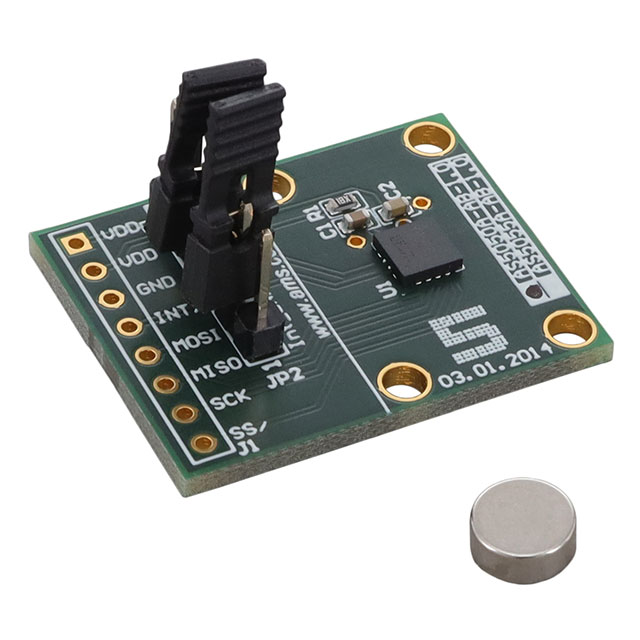

AS5050A ADAPTERBOARD

Active

ams-OSRAM USA INC.

EVAL BOARD ROTARY ENCODER

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

EVAL BOARD ROTARY ENCODER

Technical Specifications

Parameters and characteristics for this part

Part	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Actuator Type	For Measuring	Package / Case	Mounting Type	Rotation Angle - Electrical, Mechanical [Max]	Rotation Angle - Electrical, Mechanical [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Linearity	Output	Technology	Utilized IC / Part	Supplied Contents	Interface	Sensor Type
ams-OSRAM USA INC. AS5050A-BQFM QFN16 LF T&RDP	16-QFN (4x4)	85 °C	-40 °C	SMD (SMT) Tab	External Magnet Not Included	Rotary Position	16-VQFN Exposed Pad	Surface Mount	360 °	0 °	3.6 V	3 V	1.41 °	SPI	Hall Effect
ams-OSRAM USA INC. AS5050A ADAPTERBOARD											3.6 V	3 V				AS5050A	Board(s)	SPI	Magnetic Rotary Position

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 16.76

General part information

AS5050A - Magnetic, Rotary Position Sensor Evaluation Board

Technical documentation and resources

No documents available
