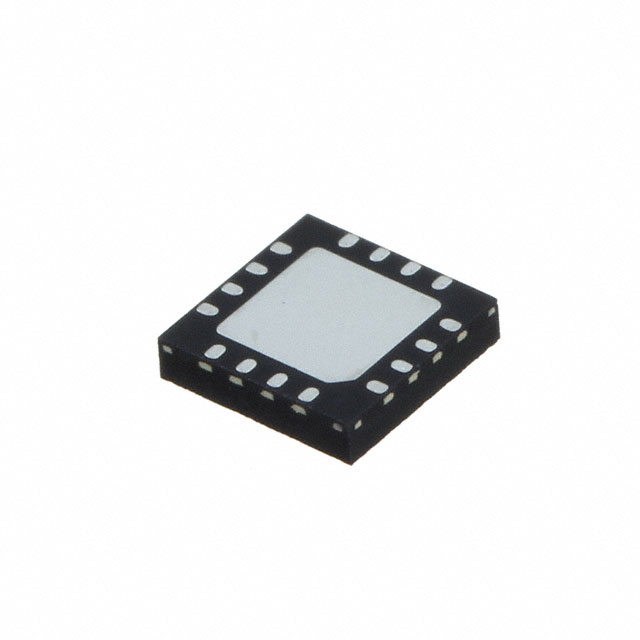

AS5050A-BQFM QFN16 LF T&RDP
Activeams-OSRAM USA INC.
SENSOR ROTARY 360DEG SMD
Deep-Dive with AI
Search across all available documentation for this part.
AS5050A-BQFM QFN16 LF T&RDP
Activeams-OSRAM USA INC.
SENSOR ROTARY 360DEG SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AS5050A-BQFM QFN16 LF T&RDP |
|---|---|
| Actuator Type | External Magnet, Not Included |
| For Measuring | Rotary Position |
| Linearity | 1.41 ° |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | SPI |
| Package / Case | 16-VQFN Exposed Pad |
| Rotation Angle - Electrical, Mechanical [Max] | 360 ° |
| Rotation Angle - Electrical, Mechanical [Min] | 0 ° |
| Supplier Device Package | 16-QFN (4x4) |
| Technology | Hall Effect |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 8.18 | |
| 10 | $ 5.49 | |||
| 25 | $ 4.78 | |||
| 100 | $ 3.99 | |||
| 250 | $ 3.60 | |||
| Digi-Reel® | 1 | $ 8.18 | ||
| 10 | $ 5.49 | |||
| 25 | $ 4.78 | |||
| 100 | $ 3.99 | |||
| 250 | $ 3.60 | |||
| Tape & Reel (TR) | 500 | $ 3.49 | ||
Description
General part information
AS5050 Series
Hall Effect Sensor Rotary Position External Magnet, Not Included SMD (SMT) Tab
