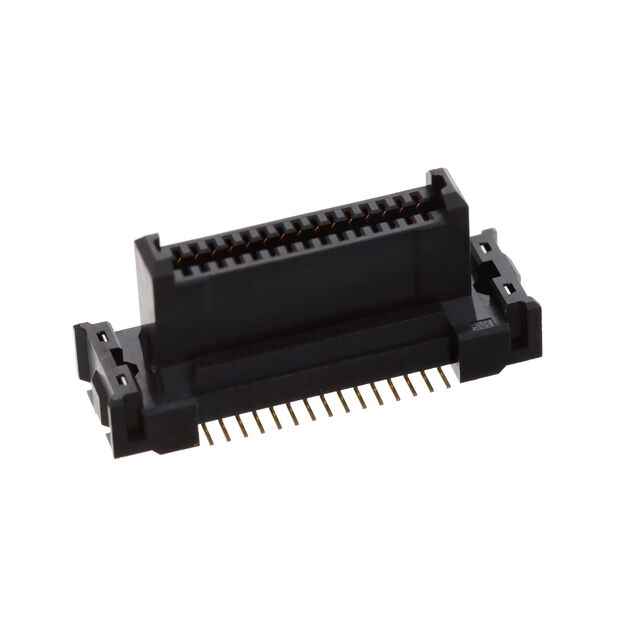

FX26-30S-1SV15

Active

Hirose Electric USA, Inc.

30 POSITION CONNECTOR RECEPTACLE

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

30 POSITION CONNECTOR RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	FX26-30S-1SV15

Connector Type	Floating, Receptacle
Contact Finish	Gold
Contact Finish Thickness	3.94 µin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention, Board Guide
Height Above Board	0.461 in
Height Above Board	11.7 mm
Mated Stacking Heights	15 mm
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	2
Pitch [x]	0.039 in
Pitch [x]	1 mm

Part	Pitch [x]	Pitch [x]	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Mated Stacking Heights	Mounting Type	Features	Height Above Board [z]	Height Above Board [z]	Contact Finish	Number of Rows	Height Above Board	Height Above Board
Hirose Electric USA, Inc. FX26-60P-1SV	0.039 in	1 mm	Floating Plug	3.94 µin	0.1 Ám	60	15 mm 18 mm 20 mm	Surface Mount	Board Guide Solder Retention	10.16 mm	0.4 "	Gold	2
Hirose Electric USA, Inc. FX26-30S-1SV15	0.039 in	1 mm	Floating Receptacle	3.94 µin	0.1 Ám	30	15 mm	Surface Mount	Board Guide Solder Retention			Gold	2	0.461 in	11.7 mm
Hirose Electric USA, Inc. FX26-50P-1SV	0.039 in	1 mm	Floating Plug	3.94 µin	0.1 Ám	50	15 mm 18 mm 20 mm	Surface Mount	Board Guide Solder Retention	10.16 mm	0.4 "	Gold	2
Hirose Electric USA, Inc. FX26-40P-1SV	0.039 in	1 mm	Floating Plug	3.94 µin	0.1 Ám	40	15 mm 18 mm 20 mm	Surface Mount	Board Guide Solder Retention	10.16 mm	0.4 "	Gold	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30 Position Connector Receptacle, Floating Surface Mount Gold
