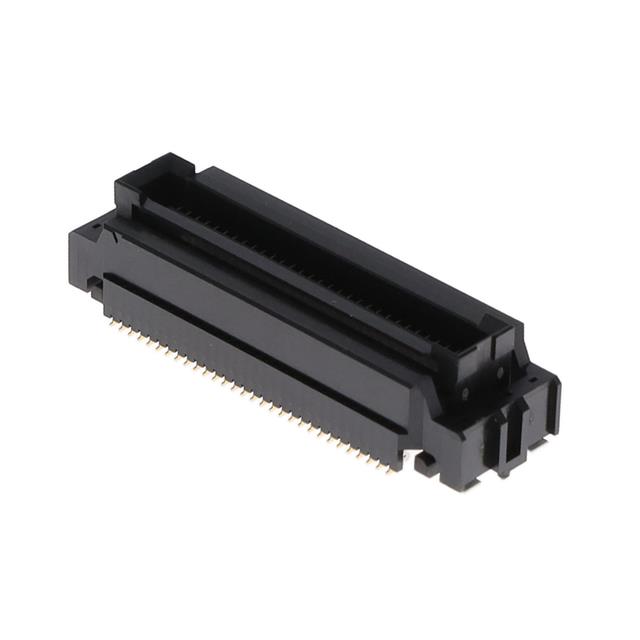

FX26-60P-1SV

Active

Hirose Electric USA, Inc.

CONN HDR 1MM VERT SMD 60POS

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN HDR 1MM VERT SMD 60POS

Technical Specifications

Parameters and characteristics for this part

Specification	FX26-60P-1SV

Connector Type	Plug, Floating
Contact Finish	Gold
Contact Finish Thickness	3.94 µin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention, Board Guide
Height Above Board [z]	10.16 mm
Height Above Board [z]	0.4 "
Mated Stacking Heights	18 mm, 15 mm, 20 mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	2
Pitch [x]	0.039 in
Pitch [x]	1 mm

Part	Pitch [x]	Pitch [x]	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Mated Stacking Heights	Mounting Type	Features	Height Above Board [z]	Height Above Board [z]	Contact Finish	Number of Rows	Height Above Board	Height Above Board
Hirose Electric USA, Inc. FX26-60P-1SV	0.039 in	1 mm	Floating Plug	3.94 µin	0.1 Ám	60	15 mm 18 mm 20 mm	Surface Mount	Board Guide Solder Retention	10.16 mm	0.4 "	Gold	2
Hirose Electric USA, Inc. FX26-30S-1SV15	0.039 in	1 mm	Floating Receptacle	3.94 µin	0.1 Ám	30	15 mm	Surface Mount	Board Guide Solder Retention			Gold	2	0.461 in	11.7 mm
Hirose Electric USA, Inc. FX26-50P-1SV	0.039 in	1 mm	Floating Plug	3.94 µin	0.1 Ám	50	15 mm 18 mm 20 mm	Surface Mount	Board Guide Solder Retention	10.16 mm	0.4 "	Gold	2
Hirose Electric USA, Inc. FX26-40P-1SV	0.039 in	1 mm	Floating Plug	3.94 µin	0.1 Ám	40	15 mm 18 mm 20 mm	Surface Mount	Board Guide Solder Retention	10.16 mm	0.4 "	Gold	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

60 Position Connector Plug, Floating Surface Mount Gold
