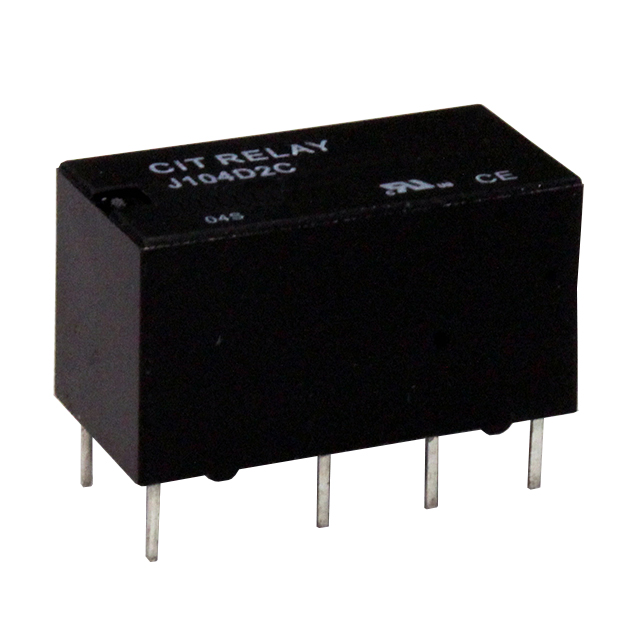

J104D2C5VDC.20S

Active

CIT Relay and Switch

RELAY GENERAL PURPOSE DPDT 2A 5V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

J104D2C5VDC.20S

Active

CIT Relay and Switch

RELAY GENERAL PURPOSE DPDT 2A 5V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	J104D2C5VDC.20S

Coil Current	40 mA
Coil Resistance	125 Ohms
Coil Type	Non Latching
Coil Voltage	5 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	2 A
Load - Max Switching	500 VA, 200 W
Mounting Type	Through Hole
Must Operate Voltage	3.75 VDC
Must Release Voltage	0.5 VDC
Operate Time	6 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	4 ms
Seal Rating	Sealed - Fully
Switching Voltage	250 VAC, 100 VDC
Termination Style	PC Pin

J104D Series

Part	Mounting Type	Contact Rating (Current)	Contact Material	Relay Type	Load - Max Switching	Must Operate Voltage	Coil Type	Release Time	Coil Voltage	Must Release Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Coil Current	Switching Voltage	Seal Rating	Operate Time	Termination Style	Coil Resistance	Contact Form
CIT Relay and Switch J104D2C12VDC.45S	Through Hole	2 A	Gold (Au) Silver Nickel (AgNi)	General Purpose	200 W 500 VA	9 VDC	Non Latching	4 ms	12 VDC	1.2 VDC	85 °C	-40 °C	37.5 mA	100 VDC 250 VAC	Sealed - Fully	6 ms	PC Pin	320 Ohms	DPDT (2 Form C)
CIT Relay and Switch J104D2C24VDC.45S	Through Hole	2 A	Gold (Au) Silver Nickel (AgNi)	General Purpose	200 W 500 VA	18 VDC	Non Latching	4 ms	24 VDC	2.4 VDC	85 °C	-40 °C	18.8 mA	100 VDC 250 VAC	Sealed - Fully	6 ms	PC Pin	1280 Ohms	DPDT (2 Form C)
CIT Relay and Switch J104D2C9VDC.45S	Through Hole	2 A	Gold (Au) Silver Nickel (AgNi)	General Purpose	200 W 500 VA	6.75 VDC	Non Latching	4 ms	9 VDC	0.9 VDC	85 °C	-40 °C	50 mA	100 VDC 250 VAC	Sealed - Fully	6 ms	PC Pin	180 Ohms	DPDT (2 Form C)
CIT Relay and Switch J104D2C12VDC.36S	Through Hole	2 A	Gold (Au) Silver Nickel (AgNi)	General Purpose	200 W 500 VA	9 VDC	Non Latching	4 ms	12 VDC	1.2 VDC	85 °C	-40 °C	30 mA	100 VDC 250 VAC	Sealed - Fully	6 ms	PC Pin	400 Ohms	DPDT (2 Form C)
CIT Relay and Switch J104D2C9VDC.15S	Through Hole	2 A	Gold (Au) Silver Nickel (AgNi)	General Purpose	200 W 500 VA	6.75 VDC	Non Latching	4 ms	9 VDC	0.9 VDC	85 °C	-40 °C	16.7 mA	100 VDC 250 VAC	Sealed - Fully	6 ms	PC Pin		DPDT (2 Form C)
CIT Relay and Switch J104D2C9VDC.20S	Through Hole	2 A	Gold (Au) Silver Nickel (AgNi)	General Purpose	200 W 500 VA	6.75 VDC	Non Latching	4 ms	9 VDC	0.9 VDC	85 °C	-40 °C	22.2 mA	100 VDC 250 VAC	Sealed - Fully	6 ms	PC Pin	405 Ohms	DPDT (2 Form C)
CIT Relay and Switch J104D2C24VDC.15S	Through Hole	2 A	Gold (Au) Silver Nickel (AgNi)	General Purpose	200 W 500 VA	18 VDC	Non Latching	4 ms	24 VDC	2.4 VDC	85 °C	-40 °C	6.3 mA	100 VDC 250 VAC	Sealed - Fully	6 ms	PC Pin	3.84 kOhms	DPDT (2 Form C)
CIT Relay and Switch J104D2C5VDC.20S	Through Hole	2 A	Gold (Au) Silver Nickel (AgNi)	General Purpose	200 W 500 VA	3.75 VDC	Non Latching	4 ms	5 VDC	0.5 VDC	85 °C	-40 °C	40 mA	100 VDC 250 VAC	Sealed - Fully	6 ms	PC Pin	125 Ohms	DPDT (2 Form C)
CIT Relay and Switch J104D2C12VDC.20S	Through Hole	2 A	Gold (Au) Silver Nickel (AgNi)	General Purpose	200 W 500 VA	9 VDC	Non Latching	4 ms	12 VDC	1.2 VDC	85 °C	-40 °C	16.7 mA	100 VDC 250 VAC	Sealed - Fully	6 ms	PC Pin	720 Ohms	DPDT (2 Form C)
CIT Relay and Switch J104D2C6VDC.20S	Through Hole	2 A	Gold (Au) Silver Nickel (AgNi)	General Purpose	200 W 500 VA	4.5 VDC	Non Latching	4 ms		0.6 VDC	85 °C	-40 °C	33.3 mA	100 VDC 250 VAC	Sealed - Fully	6 ms	PC Pin	180 Ohms	DPDT (2 Form C)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.26
		20	$ 1.18
		40	$ 1.00
		100	$ 0.95
		260	$ 0.84
		500	$ 0.79
		1000	$ 0.74
		5000	$ 0.71

Description

General part information

J104D Series

General Purpose Relay DPDT (2 Form C) Through Hole
