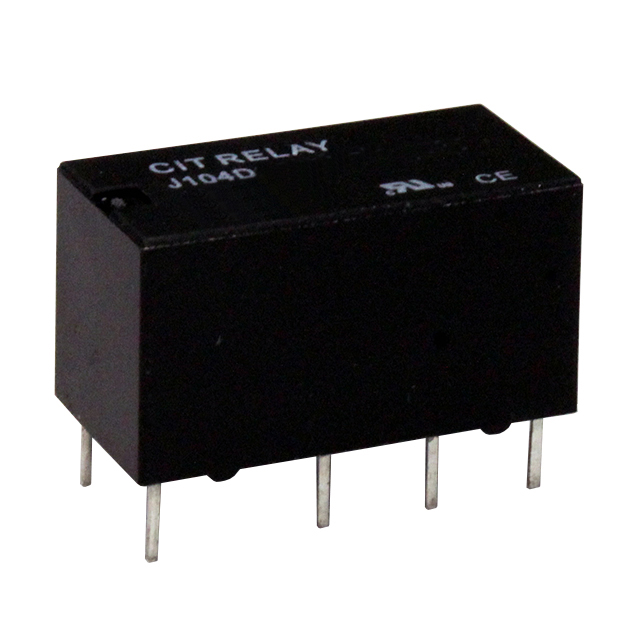

J104D2C9VDC.15S

Active

CIT Relay and Switch

RELAY GENERAL PURPOSE DPDT 2A 9V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

J104D2C9VDC.15S

Active

CIT Relay and Switch

RELAY GENERAL PURPOSE DPDT 2A 9V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	J104D2C9VDC.15S

Coil Current	16.7 mA
Coil Type	Non Latching
Coil Voltage	9 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	2 A
Load - Max Switching	500 VA, 200 W
Mounting Type	Through Hole
Must Operate Voltage	6.75 VDC
Must Release Voltage	0.9 VDC
Operate Time	6 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	4 ms
Seal Rating	Sealed - Fully
Switching Voltage	250 VAC, 100 VDC
Termination Style	PC Pin

J104D Series

Part	Mounting Type	Contact Rating (Current)	Contact Material	Relay Type	Load - Max Switching	Must Operate Voltage	Coil Type	Release Time	Coil Voltage	Must Release Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Coil Current	Switching Voltage	Seal Rating	Operate Time	Termination Style	Coil Resistance	Contact Form
CIT Relay and Switch J104D2C12VDC.45S	Through Hole	2 A	Gold (Au) Silver Nickel (AgNi)	General Purpose	200 W 500 VA	9 VDC	Non Latching	4 ms	12 VDC	1.2 VDC	85 °C	-40 °C	37.5 mA	100 VDC 250 VAC	Sealed - Fully	6 ms	PC Pin	320 Ohms	DPDT (2 Form C)
CIT Relay and Switch J104D2C24VDC.45S	Through Hole	2 A	Gold (Au) Silver Nickel (AgNi)	General Purpose	200 W 500 VA	18 VDC	Non Latching	4 ms	24 VDC	2.4 VDC	85 °C	-40 °C	18.8 mA	100 VDC 250 VAC	Sealed - Fully	6 ms	PC Pin	1280 Ohms	DPDT (2 Form C)
CIT Relay and Switch J104D2C9VDC.45S	Through Hole	2 A	Gold (Au) Silver Nickel (AgNi)	General Purpose	200 W 500 VA	6.75 VDC	Non Latching	4 ms	9 VDC	0.9 VDC	85 °C	-40 °C	50 mA	100 VDC 250 VAC	Sealed - Fully	6 ms	PC Pin	180 Ohms	DPDT (2 Form C)
CIT Relay and Switch J104D2C12VDC.36S	Through Hole	2 A	Gold (Au) Silver Nickel (AgNi)	General Purpose	200 W 500 VA	9 VDC	Non Latching	4 ms	12 VDC	1.2 VDC	85 °C	-40 °C	30 mA	100 VDC 250 VAC	Sealed - Fully	6 ms	PC Pin	400 Ohms	DPDT (2 Form C)
CIT Relay and Switch J104D2C9VDC.15S	Through Hole	2 A	Gold (Au) Silver Nickel (AgNi)	General Purpose	200 W 500 VA	6.75 VDC	Non Latching	4 ms	9 VDC	0.9 VDC	85 °C	-40 °C	16.7 mA	100 VDC 250 VAC	Sealed - Fully	6 ms	PC Pin		DPDT (2 Form C)
CIT Relay and Switch J104D2C9VDC.20S	Through Hole	2 A	Gold (Au) Silver Nickel (AgNi)	General Purpose	200 W 500 VA	6.75 VDC	Non Latching	4 ms	9 VDC	0.9 VDC	85 °C	-40 °C	22.2 mA	100 VDC 250 VAC	Sealed - Fully	6 ms	PC Pin	405 Ohms	DPDT (2 Form C)
CIT Relay and Switch J104D2C24VDC.15S	Through Hole	2 A	Gold (Au) Silver Nickel (AgNi)	General Purpose	200 W 500 VA	18 VDC	Non Latching	4 ms	24 VDC	2.4 VDC	85 °C	-40 °C	6.3 mA	100 VDC 250 VAC	Sealed - Fully	6 ms	PC Pin	3.84 kOhms	DPDT (2 Form C)
CIT Relay and Switch J104D2C5VDC.20S	Through Hole	2 A	Gold (Au) Silver Nickel (AgNi)	General Purpose	200 W 500 VA	3.75 VDC	Non Latching	4 ms	5 VDC	0.5 VDC	85 °C	-40 °C	40 mA	100 VDC 250 VAC	Sealed - Fully	6 ms	PC Pin	125 Ohms	DPDT (2 Form C)
CIT Relay and Switch J104D2C12VDC.20S	Through Hole	2 A	Gold (Au) Silver Nickel (AgNi)	General Purpose	200 W 500 VA	9 VDC	Non Latching	4 ms	12 VDC	1.2 VDC	85 °C	-40 °C	16.7 mA	100 VDC 250 VAC	Sealed - Fully	6 ms	PC Pin	720 Ohms	DPDT (2 Form C)
CIT Relay and Switch J104D2C6VDC.20S	Through Hole	2 A	Gold (Au) Silver Nickel (AgNi)	General Purpose	200 W 500 VA	4.5 VDC	Non Latching	4 ms		0.6 VDC	85 °C	-40 °C	33.3 mA	100 VDC 250 VAC	Sealed - Fully	6 ms	PC Pin	180 Ohms	DPDT (2 Form C)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	2000	$ 0.76

Description

General part information

J104D Series

General Purpose Relay DPDT (2 Form C) Through Hole
