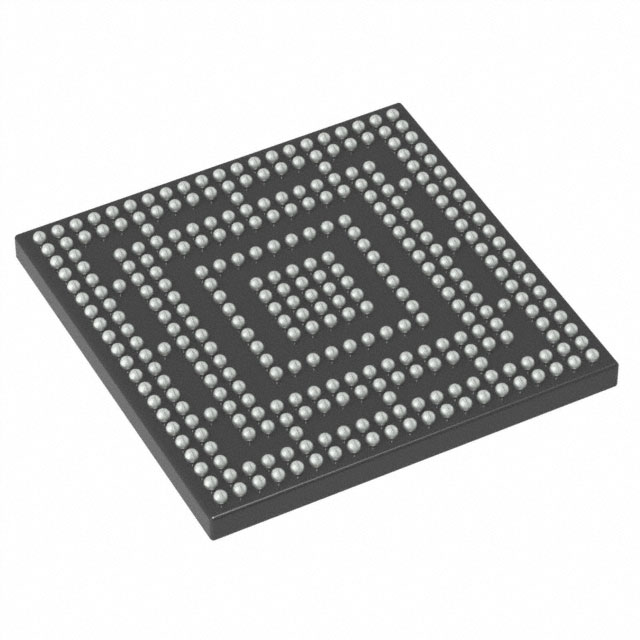

TMC8670-BI

Obsolete

Analog Devices Inc./Maxim Integrated

ETHERNET ICS SERVO CONTROLLER IC

Search across all available documentation for this part.

Obsolete

Analog Devices Inc./Maxim Integrated

ETHERNET ICS SERVO CONTROLLER IC

Technical Specifications

Parameters and characteristics for this part

Specification	TMC8670-BI

Applications	Industrial, General Purpose
Current - Output	8 mA
Function	Controller - Speed, Driver - Fully Integrated, Control and Power Stage
Interface	SPI, UART
Motor Type - AC, DC	Brushless DC (BLDC) Servo, PMSM, Stepper, Brushless DC (BLDC)
Motor Type - Stepper	Multiphase
Mounting Type	Surface Mount
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 C
Output Configuration	High Side, Low Side, Pre-Driver - Half Bridge (3)
Package / Case	325-TFBGA
Supplier Device Package	324-BGA (11x11), 325-BGA (11x11)
Technology	Power MOSFET, CMOS
Voltage - Load	1.2 V, 3.3 V
Voltage - Supply [Max]	3.45 V
Voltage - Supply [Min]	3.15 V

Part	Function	Type	Supplied Contents	Primary Attributes	Contents	Utilized IC / Part	Motor Type - AC, DC	Technology	Current - Output	Supplier Device Package	Applications	Mounting Type	Motor Type - Stepper	Interface	Output Configuration	Voltage - Supply [Max]	Voltage - Supply [Min]	Voltage - Load	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]
Analog Devices Inc./Maxim Integrated TMC8670-EVAL	Motor Controller/Driver	Power Management	Board(s)	Servo Controller	Board(s)	TMC8670
Analog Devices Inc./Maxim Integrated TMC8670-BI	Controller - Speed Driver - Fully Integrated Control and Power Stage						Brushless DC (BLDC) Brushless DC (BLDC) Servo PMSM Stepper	CMOS Power MOSFET	8 mA	324-BGA (11x11) 325-BGA (11x11)	General Purpose Industrial	Surface Mount	Multiphase	SPI UART	High Side Low Side Pre-Driver - Half Bridge (3)	3.45 V	3.15 V	1.2 V 3.3 V	325-TFBGA	100 °C	-40 C
