TMC8670-EVAL

Obsolete

Analog Devices Inc./Maxim Integrated

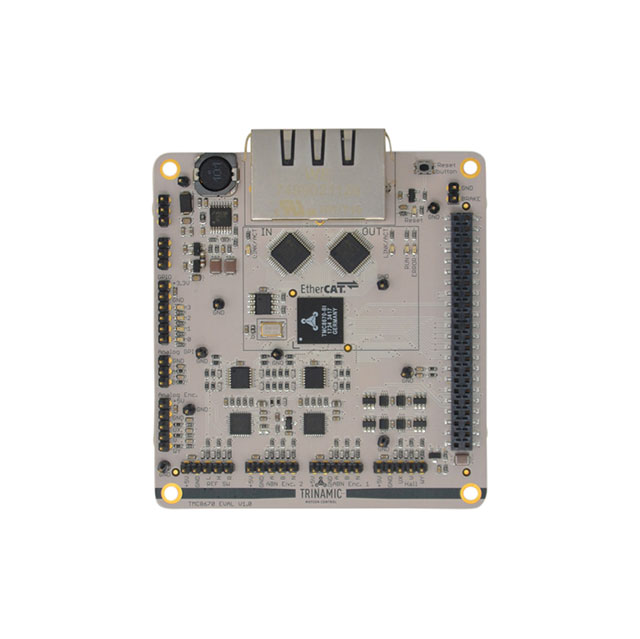

EVAL BOARD FOR TMC8670

Search across all available documentation for this part.

Obsolete

Analog Devices Inc./Maxim Integrated

EVAL BOARD FOR TMC8670

Technical Specifications

Parameters and characteristics for this part

Part	Function	Type	Supplied Contents	Primary Attributes	Contents	Utilized IC / Part	Motor Type - AC, DC	Technology	Current - Output	Supplier Device Package	Applications	Mounting Type	Motor Type - Stepper	Interface	Output Configuration	Voltage - Supply [Max]	Voltage - Supply [Min]	Voltage - Load	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]
Analog Devices Inc./Maxim Integrated TMC8670-EVAL	Motor Controller/Driver	Power Management	Board(s)	Servo Controller	Board(s)	TMC8670
Analog Devices Inc./Maxim Integrated TMC8670-BI	Controller - Speed Driver - Fully Integrated Control and Power Stage						Brushless DC (BLDC) Brushless DC (BLDC) Servo PMSM Stepper	CMOS Power MOSFET	8 mA	324-BGA (11x11) 325-BGA (11x11)	General Purpose Industrial	Surface Mount	Multiphase	SPI UART	High Side Low Side Pre-Driver - Half Bridge (3)	3.45 V	3.15 V	1.2 V 3.3 V	325-TFBGA	100 °C	-40 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 221.06

General part information

TMC8670 Motor Controller/Driver Power Management Evaluation Board

Technical documentation and resources
