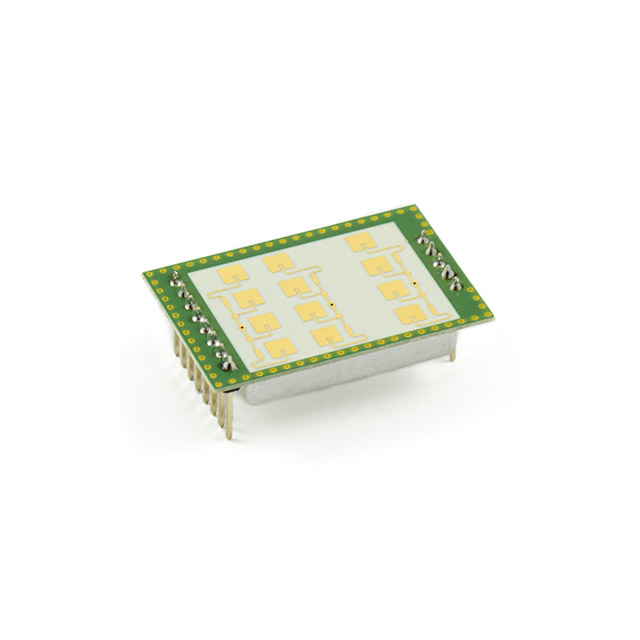

K-LD7-RFB-00H-01
ActiveRFbeam Microwave GmbH
RF TXRX MOD RADAR CER PATCH TH
Deep-Dive with AI
Search across all available documentation for this part.
K-LD7-RFB-00H-01
ActiveRFbeam Microwave GmbH
RF TXRX MOD RADAR CER PATCH TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | K-LD7-RFB-00H-01 |
|---|---|
| Antenna Type | Integrated, Ceramic Patch |
| Current - Receiving | 27 mA |
| Current - Transmitting | 27 mA |
| Data Rate | 115200 bps |
| Frequency [Max] | 24.25 GHz |
| Frequency [Min] | 24.05 GHz |
| Modulation | FSK |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 11-DIP Module |
| Power - Output | 6 dBm |
| Protocol | Serial |
| RF Family/Standard | Radar |
| Sensitivity | -127 dBc |
| Serial Interfaces | UART, GPO |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 3.2 V |
K-LD7 Series
| Part | Utilized IC / Part | Sensitivity | Interface | Voltage - Supply [Max] | Voltage - Supply [Min] | Sensing Range | Supplied Contents | Sensor Type | Protocol | Data Rate | Current - Transmitting | Serial Interfaces | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Antenna Type | Modulation | Mounting Type | RF Family/Standard | Current - Receiving | Power - Output | Frequency [Max] | Frequency [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RFbeam Microwave GmbH | K-LD7 | 24 GHz | Serial USB | 5.5 V | 3.2 V | 30 m | Accessories Board(s) Cable(s) | Radar | |||||||||||||||
RFbeam Microwave GmbH | -127 dBc | 5.5 V | 3.2 V | Serial | 115200 bps | 27 mA | GPO UART | 11-DIP Module | 85 °C | -20 C | Integrated Ceramic Patch | FSK | Through Hole | Radar | 27 mA | 6 dBm | 24.25 GHz | 24.05 GHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 85.78 | |
| 10 | $ 72.23 | |||
| 25 | $ 67.72 | |||
| 100 | $ 65.46 | |||
Description
General part information
K-LD7 Series
Radar Serial Transceiver Module 24.05GHz ~ 24.25GHz Integrated, Ceramic Patch Through Hole
Documents
Technical documentation and resources
No documents available
