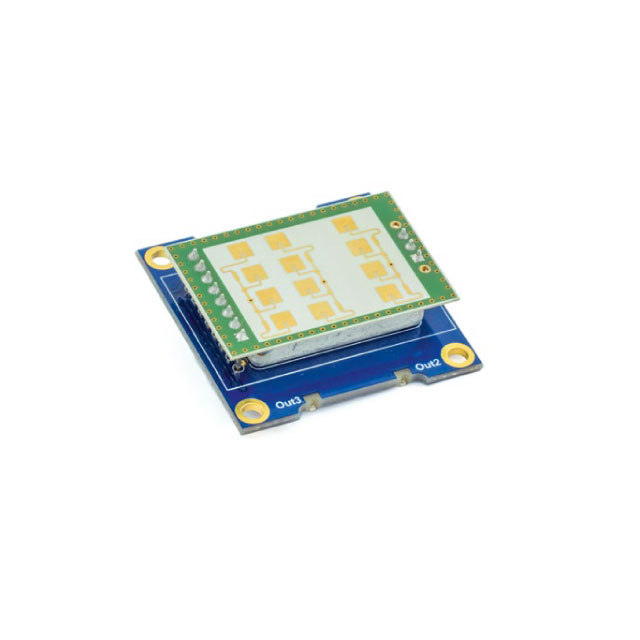

K-LD7-EVAL-RFB-01H

Active

RFbeam Microwave GmbH

EVAL BOARD FOR K-LD7

Search across all available documentation for this part.

Active

RFbeam Microwave GmbH

EVAL BOARD FOR K-LD7

Technical Specifications

Parameters and characteristics for this part

Part	Utilized IC / Part	Sensitivity	Interface	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Range	Supplied Contents	Sensor Type	Protocol	Data Rate	Current - Transmitting	Serial Interfaces	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Antenna Type	Modulation	Mounting Type	RF Family/Standard	Current - Receiving	Power - Output	Frequency [Max]	Frequency [Min]
RFbeam Microwave GmbH K-LD7-EVAL-RFB-01H	K-LD7	24 GHz	Serial USB	5.5 V	3.2 V	30 m	Accessories Board(s) Cable(s)	Radar
RFbeam Microwave GmbH K-LD7-RFB-00H-01		-127 dBc		5.5 V	3.2 V				Serial	115200 bps	27 mA	GPO UART	11-DIP Module	85 °C	-20 C	Integrated Ceramic Patch	FSK	Through Hole	Radar	27 mA	6 dBm	24.25 GHz	24.05 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 189.92

General part information

K-LD7 - Radar Sensor Evaluation Board
