0193230004
ActiveMolex

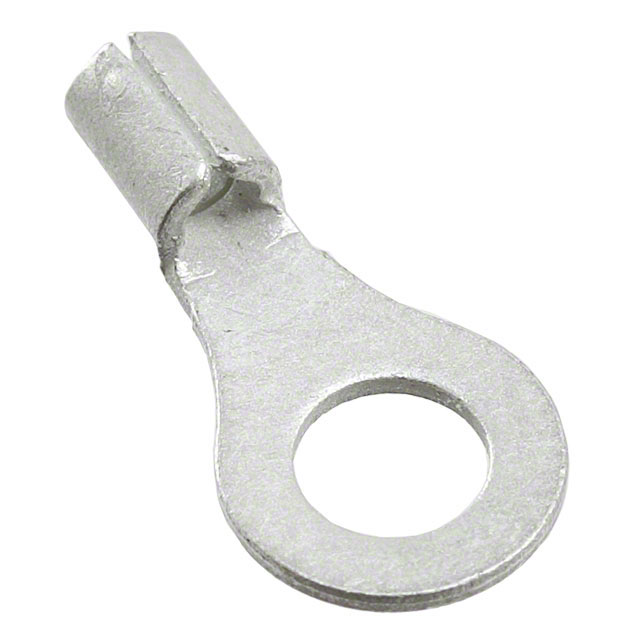

RING TERMINAL 18-21AWG COPPER 16.46MM TIN VERSAKRIMP™ BAG
Deep-Dive with AI
Search across all available documentation for this part.
0193230004
ActiveMolex
RING TERMINAL 18-21AWG COPPER 16.46MM TIN VERSAKRIMP™ BAG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0193230004 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Brazed Seam |
| Insulation | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | M4 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.71 mm |
| Thickness | 0.028 in |
| Width - Outer Edges [y] | 7.92 mm |
| Width - Outer Edges [y] | 0.312 in |
| Wire Gauge [Max] | 1 mm² |
| Wire Gauge [Min] | 0.5 mm² |
019323 Series
| Part | Thickness | Thickness | Insulation | Wire Gauge [Max] | Wire Gauge [Min] | Terminal Type | Termination | Contact Material | Contact Finish | Features | Mounting Type | Stud/Tab Size | Width - Outer Edges [x] | Width - Outer Edges [x] | Width - Outer Edges [y] | Width - Outer Edges [y] | Width - Outer Edges | Stud/Tab Size | Wire Gauge [Min] [diameter] | Wire Gauge [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | 0.04 in | 1.02 mm | Non-Insulated | 6 mm² | 2.5 mm² | Circular | Crimp | Copper | Tin | Brazed Seam | Free Hanging (In-Line) | M4 Stud | 0.282 in | 7.16 mm | ||||||
Molex | 0.028 in | 0.71 mm | Non-Insulated | 1 mm² | 0.5 mm² | Circular | Crimp | Copper | Tin | Brazed Seam | Free Hanging (In-Line) | M4 Stud | 7.92 mm | 0.312 in | ||||||
Molex | 0.04 in | 1.02 mm | Non-Insulated | 14 AWG | 10 AWG | Circular | Crimp | Copper | Tin | Free Hanging (In-Line) | 0.53 in | 13.46 mm | 6 Stud | |||||||
Molex | 0.04 in | 1.02 mm | Non-Insulated | 6 mm² | 2.5 mm² | Circular | Crimp | Copper | Tin | Brazed Seam | Free Hanging (In-Line) | M6 Stud | 0.53 in | 13.46 mm | ||||||
Molex | 0.04 in | 1.02 mm | Non-Insulated | Circular | Crimp | Copper | Tin | Free Hanging (In-Line) | 14.94 mm | 0.588 in | 10 Stud | |||||||||
Molex | 0.031 in | 0.79 mm | Non-Insulated | Circular | Crimp | Copper | Tin | Brazed Seam | Free Hanging (In-Line) | M5 Stud | 8.69 mm | 0.342 in | 1.5 mm˛ | 2.5 mm˛ | ||||||
Molex | 0.028 in | 0.71 mm | Non-Insulated | 1 mm² | 0.5 mm² | Circular | Crimp | Copper | Tin | Brazed Seam | Free Hanging (In-Line) | M3.5 Stud | 6.45 mm | 0.254 in | ||||||
Molex | 0.04 in | 1.02 mm | Non-Insulated | 6 mm² | 2.5 mm² | Circular | Crimp | Copper | Tin | Brazed Seam | Free Hanging (In-Line) | M10 Stud | 14.94 mm | 0.588 in | ||||||
Molex | 0.031 in | 0.79 mm | Non-Insulated | Circular | Crimp | Copper | Tin | Free Hanging (In-Line) | 7.92 mm | 0.312 in | 4 Stud | |||||||||
Molex |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.30 | |
| 10 | $ 0.26 | |||
| 100 | $ 0.20 | |||
| 1000 | $ 0.17 | |||
Description
General part information
019323 Series
Ring Terminal Connector M4 Stud Circular 0.5 ~ 1.0mm² Crimp
