0193230003

Active

Molex

CONN RING CIRC 0.5-1MM M3.5

Search across all available documentation for this part.

Active

Molex

CONN RING CIRC 0.5-1MM M3.5

Technical Specifications

Parameters and characteristics for this part

Part	Thickness	Thickness	Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Terminal Type	Termination	Contact Material	Contact Finish	Features	Mounting Type	Stud/Tab Size	Width - Outer Edges [x]	Width - Outer Edges [x]	Width - Outer Edges [y]	Width - Outer Edges [y]	Width - Outer Edges	Stud/Tab Size	Wire Gauge [Min] [diameter]	Wire Gauge [Max] [diameter]
Molex 0193230012	0.04 in	1.02 mm	Non-Insulated	6 mm²	2.5 mm²	Circular	Crimp	Copper	Tin	Brazed Seam	Free Hanging (In-Line)	M4 Stud	0.282 in	7.16 mm
Molex 0193230004	0.028 in	0.71 mm	Non-Insulated	1 mm²	0.5 mm²	Circular	Crimp	Copper	Tin	Brazed Seam	Free Hanging (In-Line)	M4 Stud			7.92 mm	0.312 in
Molex 0193230221	0.04 in	1.02 mm	Non-Insulated	14 AWG	10 AWG	Circular	Crimp	Copper	Tin		Free Hanging (In-Line)					0.53 in	13.46 mm	6 Stud
Molex 0193230014	0.04 in	1.02 mm	Non-Insulated	6 mm²	2.5 mm²	Circular	Crimp	Copper	Tin	Brazed Seam	Free Hanging (In-Line)	M6 Stud				0.53 in	13.46 mm
Molex 0193230223	0.04 in	1.02 mm	Non-Insulated			Circular	Crimp	Copper	Tin		Free Hanging (In-Line)				14.94 mm	0.588 in		10 Stud
Molex 0193230009	0.031 in	0.79 mm	Non-Insulated			Circular	Crimp	Copper	Tin	Brazed Seam	Free Hanging (In-Line)	M5 Stud			8.69 mm	0.342 in			1.5 mm˛	2.5 mm˛
Molex 0193230003	0.028 in	0.71 mm	Non-Insulated	1 mm²	0.5 mm²	Circular	Crimp	Copper	Tin	Brazed Seam	Free Hanging (In-Line)	M3.5 Stud			6.45 mm	0.254 in
Molex 0193230016	0.04 in	1.02 mm	Non-Insulated	6 mm²	2.5 mm²	Circular	Crimp	Copper	Tin	Brazed Seam	Free Hanging (In-Line)	M10 Stud			14.94 mm	0.588 in
Molex 0193230214	0.031 in	0.79 mm	Non-Insulated			Circular	Crimp	Copper	Tin		Free Hanging (In-Line)				7.92 mm	0.312 in		4 Stud
Molex 0193230207

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

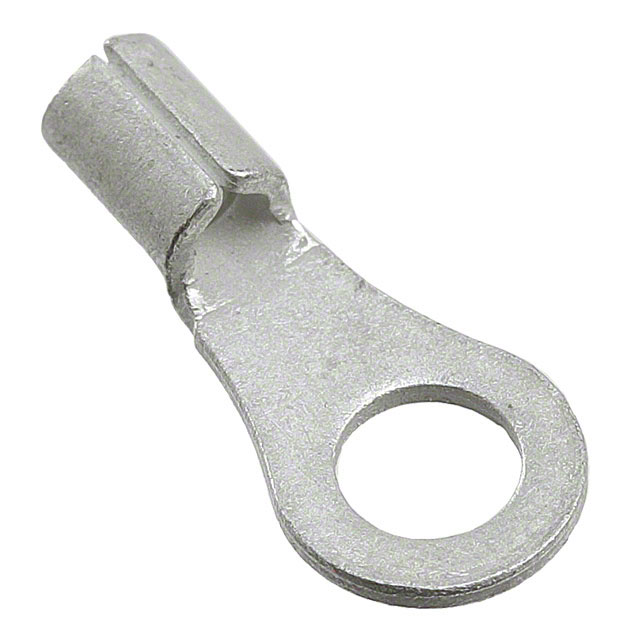

Ring Terminal Connector M3.5 Stud Circular 0.5 ~ 1.0mm² Crimp
