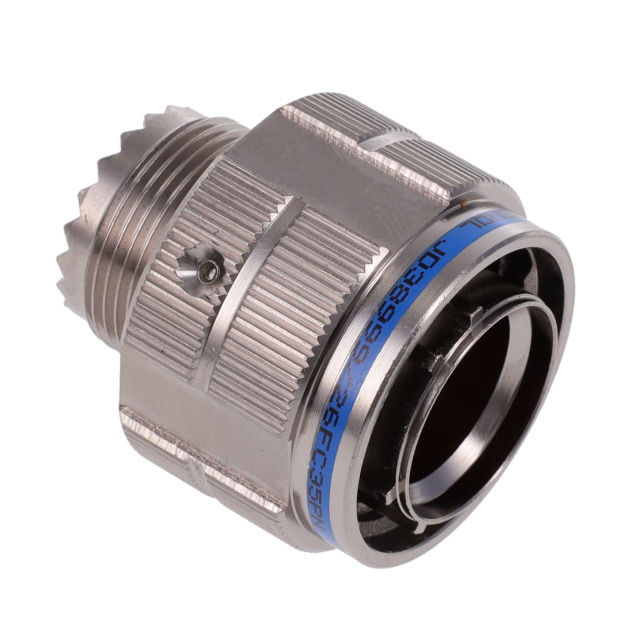

D38999/26FC35PNLC

Active

Amphenol Aerospace Operations

CONN PLUG HSG MALE 22POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/26FC35PNLC

Active

Amphenol Aerospace Operations

CONN PLUG HSG MALE 22POS INLINE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/26FC35PNLC

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	22D
Contact Type	Crimp
Features	Coupling Nut, Self Locking
Grade	Military
Housing Color	Silver
Ingress Protection	Environment Resistant
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	22 positions
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Electroless Nickel
Shell Material	Aluminum
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	13
Shell Size, MIL	C
Shielding	Shielded
Type	For Male Pins

D38999/26FC Series

Part	Ingress Protection	Termination	Color	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Grade	Shielding	Orientation	Contact Finish - Mating	Shell Size, MIL	Shell Finish	Features	Number of Positions	Qualification	Applications	Contact Material	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Shell Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Size	Type	Housing Color	Note	Insert Material	Contact Type	Contact Shape	Contact Size	Shell Size - Insert
Amphenol Aerospace Operations D38999/26FC35JN	Environment Resistant	Crimp	Silver	35	13	Military	Shielded	N	Gold	C	Electroless Nickel	Coupling Nut	22 positions	MIL-DTL-38999 Series III	Aerospace Aviation Military	Copper Alloy	Metal	2.54 çm	100 çin	Female Sockets Plug	Aluminum	Free Hanging (In-Line)	-65 ░C	200 °C
Amphenol Aerospace Operations D38999/26FC35PA	Environment Resistant	Crimp	Silver	35	13	Military	Shielded	A	Gold	C	Electroless Nickel	Coupling Nut	22 positions	MIL-DTL-38999 Series III	Aerospace Aviation Marine Military	Copper Alloy	Metal	1.27 µm	50 µin	Male Pins Plug	Aluminum	Free Hanging (In-Line)	-65 ░C	200 °C
Amphenol Aerospace Operations D38999/26FC35SB	Environment Resistant	Crimp	Silver	35	13	Military	Shielded	B	Gold	C	Electroless Nickel	Coupling Nut	22 positions	MIL-DTL-38999 Series III	Aerospace Aviation Marine Military	Copper Alloy	Metal	1.27 µm	50 µin	Female Sockets Plug	Aluminum	Free Hanging (In-Line)	-65 ░C	200 °C
Amphenol Aerospace Operations D38999/26FC98PN	Environment Resistant	Crimp	Silver			Military	Shielded	N	Gold	C	Electroless Nickel	Coupling Nut	10	MIL-DTL-38999 Series III	Aerospace Aviation Marine Military	Copper Alloy	Metal	1.27 µm	50 µin	Male Pins Plug	Aluminum	Free Hanging (In-Line)	-65 ░C	200 °C
Amphenol Aerospace Operations D38999/26FC35SA	Environment Resistant	Crimp	Silver	35	13	Military	Shielded	A	Gold	C	Electroless Nickel	Coupling Nut	22 positions	MIL-DTL-38999 Series III	Aerospace Aviation Marine Military	Copper Alloy	Metal	1.27 µm	50 µin	Female Sockets Plug	Aluminum	Free Hanging (In-Line)	-65 ░C	200 °C
Amphenol Aerospace Operations D38999/26FC35PNLC	Environment Resistant			35	13	Military	Shielded	N		C	Electroless Nickel	Coupling Nut Self Locking	22 positions	MIL-DTL-38999 Series III			Metal			Plug Housing	Aluminum	Free Hanging (In-Line)	-65 ░C	200 °C	22D	For Male Pins	Silver	Contacts Not Included	Thermoplastic	Crimp	Circular
Amphenol Aerospace Operations D38999/26FC98PA-LC	Environment Resistant					Military	Shielded	A		C	Electroless Nickel	Coupling Nut Self Locking	10	MIL-DTL-38999 Series III						Plug Housing	Aluminum	Free Hanging (In-Line)	-65 ░C	200 °C		For Male Pins	Silver	Contacts Not Included		Crimp	Circular	20
Amphenol Aerospace Operations D38999/26FC35PN	Environment Resistant	Crimp	Silver	35	13	Military	Shielded	N	Gold	C	Electroless Nickel	Coupling Nut	22 positions	MIL-DTL-38999 Series III	Aerospace Aviation Marine Military	Copper Alloy	Metal	1.27 µm	50 µin	Male Pins Plug	Aluminum	Free Hanging (In-Line)	-65 ░C	200 °C
Amphenol Aerospace Operations D38999/26FC4SN	Environment Resistant	Crimp	Silver			Military	Shielded	N	Gold	C	Electroless Nickel	Coupling Nut	4	MIL-DTL-38999 Series III	Aerospace Aviation Marine Military	Copper Alloy	Metal	1.27 µm	50 µin	Female Sockets Plug	Aluminum	Free Hanging (In-Line)	-65 ░C	200 °C									13-4
Amphenol Aerospace Operations D38999/26FC35SN	Environment Resistant	Crimp	Silver	35	13	Military	Shielded	N	Gold	C	Electroless Nickel	Coupling Nut	22 positions	MIL-DTL-38999 Series III	Aerospace Aviation Marine Military	Copper Alloy	Metal	1.27 µm	50 µin	Female Sockets Plug	Aluminum	Free Hanging (In-Line)	-65 ░C	200 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 166.02
		10	$ 151.51

Description

General part information

D38999/26FC Series

22 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut, Self Locking
