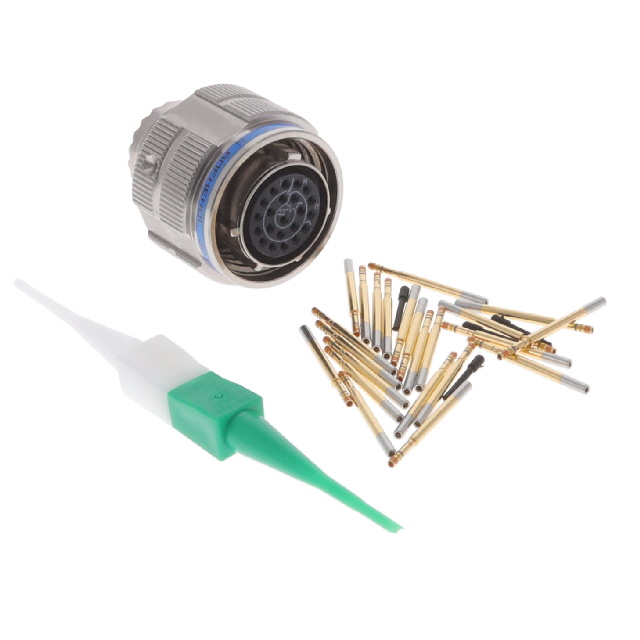

D38999/26FC35SB
ActiveAmphenol Aerospace Operations
CONN PLUG FMALE 22POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D38999/26FC35SB
ActiveAmphenol Aerospace Operations
CONN PLUG FMALE 22POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | D38999/26FC35SB |
|---|---|
| Applications | Aviation, Aerospace, Marine, Military |
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.27 µm |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Copper Alloy |
| Features | Coupling Nut |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 22 positions |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -65 ░C |
| Orientation | B |
| Primary Material | Metal |
| Qualification | MIL-DTL-38999 Series III |
| Shell Finish | Electroless Nickel |
| Shell Material | Aluminum |
| Shell Size - Insert [Max] | 35 |
| Shell Size - Insert [Min] | 13 |
| Shell Size, MIL | C |
| Shielding | Shielded |
| Termination | Crimp |
D38999/26FC Series
| Part | Ingress Protection | Termination | Color | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Grade | Shielding | Orientation | Contact Finish - Mating | Shell Size, MIL | Shell Finish | Features | Number of Positions | Qualification | Applications | Contact Material | Primary Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Shell Material | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Size | Type | Housing Color | Note | Insert Material | Contact Type | Contact Shape | Contact Size | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Aerospace Operations | Environment Resistant | Crimp | Silver | 35 | 13 | Military | Shielded | N | Gold | C | Electroless Nickel | Coupling Nut | 22 positions | MIL-DTL-38999 Series III | Aerospace Aviation Military | Copper Alloy | Metal | 2.54 çm | 100 çin | Female Sockets Plug | Aluminum | Free Hanging (In-Line) | -65 ░C | 200 °C | |||||||||
Amphenol Aerospace Operations | Environment Resistant | Crimp | Silver | 35 | 13 | Military | Shielded | A | Gold | C | Electroless Nickel | Coupling Nut | 22 positions | MIL-DTL-38999 Series III | Aerospace Aviation Marine Military | Copper Alloy | Metal | 1.27 µm | 50 µin | Male Pins Plug | Aluminum | Free Hanging (In-Line) | -65 ░C | 200 °C | |||||||||
Amphenol Aerospace Operations | Environment Resistant | Crimp | Silver | 35 | 13 | Military | Shielded | B | Gold | C | Electroless Nickel | Coupling Nut | 22 positions | MIL-DTL-38999 Series III | Aerospace Aviation Marine Military | Copper Alloy | Metal | 1.27 µm | 50 µin | Female Sockets Plug | Aluminum | Free Hanging (In-Line) | -65 ░C | 200 °C | |||||||||
Amphenol Aerospace Operations | Environment Resistant | Crimp | Silver | Military | Shielded | N | Gold | C | Electroless Nickel | Coupling Nut | 10 | MIL-DTL-38999 Series III | Aerospace Aviation Marine Military | Copper Alloy | Metal | 1.27 µm | 50 µin | Male Pins Plug | Aluminum | Free Hanging (In-Line) | -65 ░C | 200 °C | |||||||||||
Amphenol Aerospace Operations | Environment Resistant | Crimp | Silver | 35 | 13 | Military | Shielded | A | Gold | C | Electroless Nickel | Coupling Nut | 22 positions | MIL-DTL-38999 Series III | Aerospace Aviation Marine Military | Copper Alloy | Metal | 1.27 µm | 50 µin | Female Sockets Plug | Aluminum | Free Hanging (In-Line) | -65 ░C | 200 °C | |||||||||
Amphenol Aerospace Operations | Environment Resistant | 35 | 13 | Military | Shielded | N | C | Electroless Nickel | Coupling Nut Self Locking | 22 positions | MIL-DTL-38999 Series III | Metal | Plug Housing | Aluminum | Free Hanging (In-Line) | -65 ░C | 200 °C | 22D | For Male Pins | Silver | Contacts Not Included | Thermoplastic | Crimp | Circular | |||||||||
Amphenol Aerospace Operations | Environment Resistant | Military | Shielded | A | C | Electroless Nickel | Coupling Nut Self Locking | 10 | MIL-DTL-38999 Series III | Plug Housing | Aluminum | Free Hanging (In-Line) | -65 ░C | 200 °C | For Male Pins | Silver | Contacts Not Included | Crimp | Circular | 20 | |||||||||||||
Amphenol Aerospace Operations | Environment Resistant | Crimp | Silver | 35 | 13 | Military | Shielded | N | Gold | C | Electroless Nickel | Coupling Nut | 22 positions | MIL-DTL-38999 Series III | Aerospace Aviation Marine Military | Copper Alloy | Metal | 1.27 µm | 50 µin | Male Pins Plug | Aluminum | Free Hanging (In-Line) | -65 ░C | 200 °C | |||||||||
Amphenol Aerospace Operations | Environment Resistant | Crimp | Silver | Military | Shielded | N | Gold | C | Electroless Nickel | Coupling Nut | 4 | MIL-DTL-38999 Series III | Aerospace Aviation Marine Military | Copper Alloy | Metal | 1.27 µm | 50 µin | Female Sockets Plug | Aluminum | Free Hanging (In-Line) | -65 ░C | 200 °C | 13-4 | ||||||||||
Amphenol Aerospace Operations | Environment Resistant | Crimp | Silver | 35 | 13 | Military | Shielded | N | Gold | C | Electroless Nickel | Coupling Nut | 22 positions | MIL-DTL-38999 Series III | Aerospace Aviation Marine Military | Copper Alloy | Metal | 1.27 µm | 50 µin | Female Sockets Plug | Aluminum | Free Hanging (In-Line) | -65 ░C | 200 °C |
