PFB1224GHE
ActiveDelta Electronics

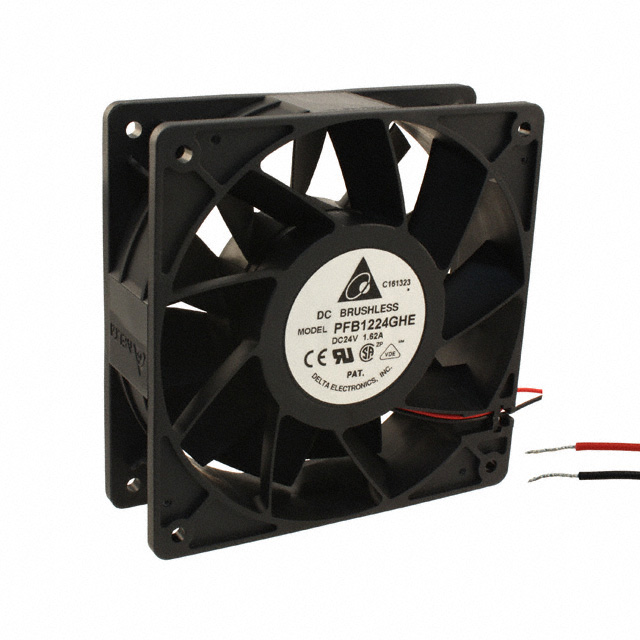

FAN AXIAL 120X38MM 24VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
PFB1224GHE
ActiveDelta Electronics
FAN AXIAL 120X38MM 24VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PFB1224GHE |
|---|---|
| Air Flow | 6.1 m³/min |
| Air Flow | 217.8 CFM |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 1.35 A |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 64 dB(A) |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 32.4 W |
| RPM | 4800 RPM |
| Size / Dimension [x] | 120 mm |
| Size / Dimension [y] | 120 mm |
| Static Pressure | 1.075 in H2O |
| Static Pressure | 267.8 Pa |
| Termination | 2 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 26.5 VDC |
| Voltage Range [Min] | 14 VDC |
| Weight | 0.838 lb |
| Weight | 380.11 g |
| Width [y] | 38 mm |
PFB1224 Series
| Part | Size / Dimension [y] | Size / Dimension [x] | Weight | Weight | Noise | Width [y] | Air Flow | Air Flow | Voltage Range [Min] | Voltage Range [Max] | Lifetime @ Temp. | Approval Agency | Material - Blade | Static Pressure | Static Pressure | RPM | Features | Fan Type | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Max] | Material - Frame | Voltage - Rated | Power (Watts) | Termination | Bearing Type | Current Rating (Amps) | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics | 120 mm | 120 mm | 0.838 lb | 380.11 g | 66.5 dB(A) | 38 mm | 252.9 CFM | 7.08 m³/min | 14 VDC | 26.5 VDC | 70000 Hrs | CE CSA UL VDE | Plastic | 351.7 Pa | 1.412 in H2O | 5500 RPM | Locked Rotor Sensor | Tubeaxial | -10 °C | -10 °C | 60 °C | 60 °C | Plastic | 24 VDC | 48 W | 3 Wire Leads | Ball | ||
Delta Electronics | 120 mm | 120 mm | 0.838 lb | 380.11 g | 66.5 dB(A) | 38 mm | 252.9 CFM | 7.08 m³/min | 14 VDC | 26.5 VDC | 70000 Hrs | CE CSA UL VDE | Plastic | 351.7 Pa | 1.412 in H2O | 5500 RPM | Tubeaxial | -10 °C | -10 °C | 60 °C | 60 °C | Plastic | 24 VDC | 48 W | 2 Wire Leads | Ball | |||
Delta Electronics | 120 mm | 120 mm | 0.838 lb | 380.11 g | 64 dB(A) | 38 mm | 217.8 CFM | 6.1 m³/min | 14 VDC | 26.5 VDC | 70000 Hrs | CE CSA UL VDE | Plastic | 267.8 Pa | 1.075 in H2O | 4800 RPM | Tubeaxial | -10 °C | -10 °C | 60 °C | 60 °C | Plastic | 24 VDC | 32.4 W | 2 Wire Leads | Ball | 1.35 A | ||
Delta Electronics | 120 mm | 120 mm | 0.838 lb | 380.11 g | 66.5 dB(A) | 38 mm | 252.9 CFM | 7.08 m³/min | 14 VDC | 26.5 VDC | 70000 Hrs | CE CSA UL VDE | Plastic | 351.7 Pa | 1.412 in H2O | 5500 RPM | Locked Rotor Protection Speed Sensor (Tach) | Tubeaxial | -10 °C | -10 °C | 60 °C | 60 °C | Plastic | 24 VDC | 48 W | 3 Wire Leads | Ball | IP55 - Dust Protected Water Resistant | |
Delta Electronics | 120 mm | 120 mm | 0.838 lb | 380.11 g | 64 dB(A) | 38 mm | 217.8 CFM | 6.1 m³/min | 14 VDC | 26.5 VDC | 70000 Hrs | CE CSA UL VDE | Plastic | 267.8 Pa | 1.075 in H2O | 4800 RPM | Tubeaxial | -10 °C | -10 °C | 60 °C | 60 °C | Plastic | 24 VDC | 32.4 W | 2 Wire Leads | Ball | 1.35 A | IP55 - Dust Protected Water Resistant | |
Delta Electronics | 120 mm | 120 mm | 0.838 lb | 380.11 g | 59 dB(A) | 38 mm | 181.3 CFM | 5.08 mł/min | 14 VDC | 26.5 VDC | 70000 Hrs | CE CSA UL VDE | Plastic | 187 Pa | 0.751 in H2O | 4000 RPM | Locked Rotor Sensor | Tubeaxial | -10 °C | -10 °C | 60 °C | 60 °C | Plastic | 24 VDC | 21.6 W | 3 Wire Leads | Ball | 900 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 40.98 | |
| 10 | $ 33.59 | |||
| 25 | $ 31.03 | |||
| 50 | $ 29.22 | |||
| 100 | $ 27.51 | |||
| 250 | $ 27.23 | |||
Description
General part information
PFB1224 Series
Fan Tubeaxial 24VDC Square - 120mm L x 120mm H Ball 217.8 CFM (6.10m³/min) 2 Wire Leads
