PFB1224UHE

Active

Delta Electronics

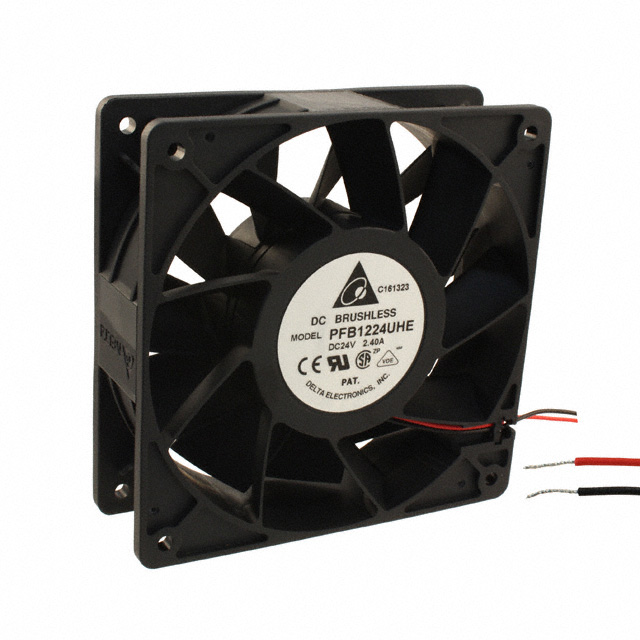

FAN AXIAL 120X38MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans, Blowers CSA Cert Datasheet +2

PFB1224UHE

Active

Delta Electronics

FAN AXIAL 120X38MM 24VDC WIRE

Deep-Dive with AI

DocumentsFans, Blowers CSA Cert Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PFB1224UHE

Air Flow	252.9 CFM
Air Flow	7.08 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Fan Type	Tubeaxial
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	66.5 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	48 W
RPM	5500 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	351.7 Pa
Static Pressure	1.412 in H2O
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	26.5 VDC
Voltage Range [Min]	14 VDC
Weight	0.838 lb
Weight	380.11 g
Width [y]	38 mm

PFB1224 Series

Part	Size / Dimension [y]	Size / Dimension [x]	Weight	Weight	Noise	Width [y]	Air Flow	Air Flow	Voltage Range [Min]	Voltage Range [Max]	Lifetime @ Temp.	Approval Agency	Material - Blade	Static Pressure	Static Pressure	RPM	Features	Fan Type	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Material - Frame	Voltage - Rated	Power (Watts)	Termination	Bearing Type	Current Rating (Amps)	Ingress Protection
Delta Electronics PFB1224UHE-R00	120 mm	120 mm	0.838 lb	380.11 g	66.5 dB(A)	38 mm	252.9 CFM	7.08 m³/min	14 VDC	26.5 VDC	70000 Hrs	CE CSA UL VDE	Plastic	351.7 Pa	1.412 in H2O	5500 RPM	Locked Rotor Sensor	Tubeaxial	-10 °C	-10 °C	60 °C	60 °C	Plastic	24 VDC	48 W	3 Wire Leads	Ball
Delta Electronics PFB1224UHE	120 mm	120 mm	0.838 lb	380.11 g	66.5 dB(A)	38 mm	252.9 CFM	7.08 m³/min	14 VDC	26.5 VDC	70000 Hrs	CE CSA UL VDE	Plastic	351.7 Pa	1.412 in H2O	5500 RPM		Tubeaxial	-10 °C	-10 °C	60 °C	60 °C	Plastic	24 VDC	48 W	2 Wire Leads	Ball
Delta Electronics PFB1224GHE	120 mm	120 mm	0.838 lb	380.11 g	64 dB(A)	38 mm	217.8 CFM	6.1 m³/min	14 VDC	26.5 VDC	70000 Hrs	CE CSA UL VDE	Plastic	267.8 Pa	1.075 in H2O	4800 RPM		Tubeaxial	-10 °C	-10 °C	60 °C	60 °C	Plastic	24 VDC	32.4 W	2 Wire Leads	Ball	1.35 A
Delta Electronics PFB1224UHE-T50F	120 mm	120 mm	0.838 lb	380.11 g	66.5 dB(A)	38 mm	252.9 CFM	7.08 m³/min	14 VDC	26.5 VDC	70000 Hrs	CE CSA UL VDE	Plastic	351.7 Pa	1.412 in H2O	5500 RPM	Locked Rotor Protection Speed Sensor (Tach)	Tubeaxial	-10 °C	-10 °C	60 °C	60 °C	Plastic	24 VDC	48 W	3 Wire Leads	Ball		IP55 - Dust Protected Water Resistant
Delta Electronics PFB1224GHE-T500	120 mm	120 mm	0.838 lb	380.11 g	64 dB(A)	38 mm	217.8 CFM	6.1 m³/min	14 VDC	26.5 VDC	70000 Hrs	CE CSA UL VDE	Plastic	267.8 Pa	1.075 in H2O	4800 RPM		Tubeaxial	-10 °C	-10 °C	60 °C	60 °C	Plastic	24 VDC	32.4 W	2 Wire Leads	Ball	1.35 A	IP55 - Dust Protected Water Resistant
Delta Electronics PFB1224EHE-R00	120 mm	120 mm	0.838 lb	380.11 g	59 dB(A)	38 mm	181.3 CFM	5.08 mł/min	14 VDC	26.5 VDC	70000 Hrs	CE CSA UL VDE	Plastic	187 Pa	0.751 in H2O	4000 RPM	Locked Rotor Sensor	Tubeaxial	-10 °C	-10 °C	60 °C	60 °C	Plastic	24 VDC	21.6 W	3 Wire Leads	Ball	900 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 48.69
		10	$ 45.29
		36	$ 40.76
		72	$ 37.36
		108	$ 35.10
		252	$ 30.57

Description

General part information

PFB1224 Series

Fan Tubeaxial 24VDC Square - 120mm L x 120mm H Ball 252.9 CFM (7.08m³/min) 2 Wire Leads
