T4113011081-000

Active

TE Connectivity Raychem Cable Protection

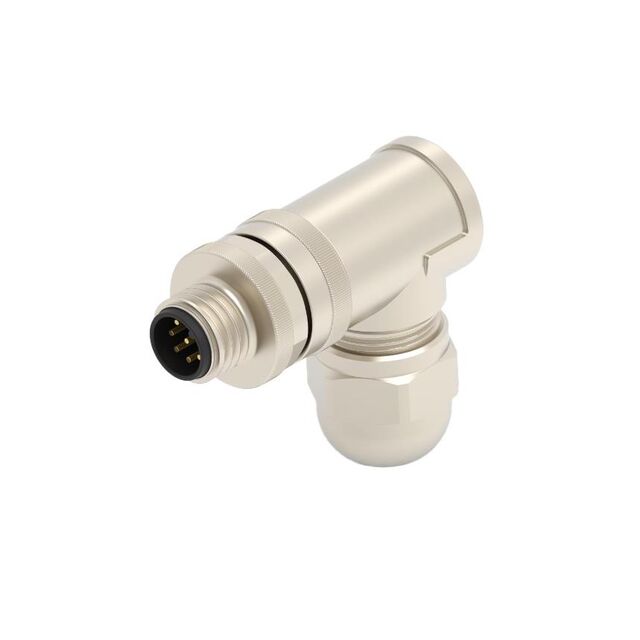

CONN RCPT MALE 8POS GOLD SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

T4113011081-000

Active

TE Connectivity Raychem Cable Protection

CONN RCPT MALE 8POS GOLD SCREW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T4113011081-000

Applications	Industrial
Backshell Material, Plating	Nickel, Brass
Cable Opening [diameter]	6 mm, 4 mm
Cable Opening [diameter]	0.236 in, 0.157 in
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Material	Zinc Alloy
Current Rating (Amps)	2 A
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M12-8
Shielding	Shielded
Termination	Screw
Voltage Rating	30 VDC

T41130 Series

Part	Voltage Rating	Features	Shell Finish	Orientation	Cable Opening [diameter]	Cable Opening [diameter]	Shell Size - Insert	Shell Material	Termination	Shielding	Applications	Insert Material	Contact Finish - Mating	Contact Material	Backshell Material, Plating	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Color	Current Rating (Amps)	Ingress Protection	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Primary Material	Number of Positions	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]
TE Connectivity Raychem Cable Protection T4113001032-000	250 VDC	Backshell	Nickel	A	4 mm 6 mm	0.157 in 0.236 in	M12-3	Brass	Screw	Unshielded	Industrial	Nylon Polyamide (PA)	Silver	Brass	Glass Filled Polybutylene Terephthalate (PBT)	Male Pins Receptacle	85 °C	-40 °C	Black Silver	4 A	IP67 - Dust Tight Waterproof	Free Hanging (In-Line) Right Angle	2.03 µm	80 µin	Metal
TE Connectivity Raychem Cable Protection T4113001042-000	250 VDC	Backshell	Nickel	A	4 mm 6 mm	0.157 in 0.236 in	M12-4	Brass	Screw	Unshielded	Industrial	Nylon Polyamide (PA)	Silver	Brass	Glass Filled Polybutylene Terephthalate (PBT)	Male Pins Receptacle	85 °C	-40 °C	Black Silver	4 A	IP67 - Dust Tight Waterproof	Free Hanging (In-Line) Right Angle	2.03 µm	80 µin	Metal	4
TE Connectivity Raychem Cable Protection T4113011031-000	250 VDC	Backshell	Nickel	A	4 mm 6 mm	0.157 in 0.236 in	M12-3	Brass	Screw	Shielded	Industrial	Nylon Polyamide (PA)	Gold	Brass	Brass Nickel	Male Pins Receptacle	85 °C	-40 °C	Silver	4 A	IP67 - Dust Tight Waterproof	Free Hanging (In-Line) Right Angle	0.076 µm	3 µin	Metal
TE Connectivity Raychem Cable Protection T4113002051-000	60 VDC	Backshell	Nickel	A			M12-5	Brass	Screw	Unshielded	Industrial	Nylon Polyamide (PA)	Gold	Zinc Alloy	Glass Filled Polybutylene Terephthalate (PBT)	Male Pins Receptacle	85 °C	-40 °C	Black Silver	4 A	IP67 - Dust Tight Waterproof	Free Hanging (In-Line) Right Angle	0.076 µm	3 µin	Metal		8 mm	6 mm	0.315 in	0.236 in
TE Connectivity Raychem Cable Protection T4113002052-000	60 VDC	Backshell	Nickel	A			M12-5	Brass	Screw	Unshielded	Industrial	Nylon Polyamide (PA)	Silver	Brass	Glass Filled Polybutylene Terephthalate (PBT)	Male Pins Receptacle	85 °C	-40 °C	Black Silver	4 A	IP67 - Dust Tight Waterproof	Free Hanging (In-Line) Right Angle	2.03 µm	80 µin	Metal		8 mm	6 mm	0.315 in	0.236 in
TE Connectivity Raychem Cable Protection T4113002041-000	250 VDC	Backshell	Nickel	A			M12-4	Brass	Screw	Unshielded	Industrial	Nylon Polyamide (PA)	Gold	Zinc Alloy	Glass Filled Polybutylene Terephthalate (PBT)	Male Pins Receptacle	85 °C	-40 °C	Black Silver	4 A	IP67 - Dust Tight Waterproof	Free Hanging (In-Line) Right Angle	0.076 µm	3 µin	Metal	4	8 mm	6 mm	0.315 in	0.236 in
TE Connectivity Raychem Cable Protection T4113011081-000	30 VDC	Backshell	Nickel	A	4 mm 6 mm	0.157 in 0.236 in	M12-8	Brass	Screw	Shielded	Industrial	Nylon Polyamide (PA)	Gold	Zinc Alloy	Brass Nickel	Male Pins Receptacle	85 °C	-40 °C	Silver	2 A	IP67 - Dust Tight Waterproof	Free Hanging (In-Line) Right Angle	0.076 µm	3 µin	Metal	8
TE Connectivity Raychem Cable Protection T4113012021-000	250 VDC	Backshell	Nickel	A			M12-2	Brass	Screw	Shielded	Industrial	Nylon Polyamide (PA)	Gold	Brass	Brass Nickel	Male Pins Receptacle	85 °C	-40 °C	Silver	4 A	IP67 - Dust Tight Waterproof	Free Hanging (In-Line) Right Angle	0.076 µm	3 µin	Metal	2	8 mm	6 mm	0.315 in	0.236 in
TE Connectivity Raychem Cable Protection T4113001052-000	60 VDC	Backshell	Nickel	A	4 mm 6 mm	0.157 in 0.236 in	M12-5	Brass	Screw	Unshielded	Industrial	Nylon Polyamide (PA)	Silver	Brass	Glass Filled Polybutylene Terephthalate (PBT)	Male Pins Receptacle	85 °C	-40 °C	Black Silver	4 A	IP67 - Dust Tight Waterproof	Free Hanging (In-Line) Right Angle	2.03 µm	80 µin	Metal
TE Connectivity Raychem Cable Protection T4113012051-000	60 VDC	Backshell	Nickel	A			M12-5	Brass	Screw	Shielded	Industrial	Nylon Polyamide (PA)	Gold	Zinc Alloy	Brass Nickel	Male Pins Receptacle	85 °C	-40 °C	Silver	4 A	IP67 - Dust Tight Waterproof	Free Hanging (In-Line) Right Angle	0.076 µm	3 µin	Metal		8 mm	6 mm	0.315 in	0.236 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.76
		10	$ 14.45
		100	$ 12.07

Description

General part information

T41130 Series

8 Position Circular Connector Receptacle, Male Pins Screw
