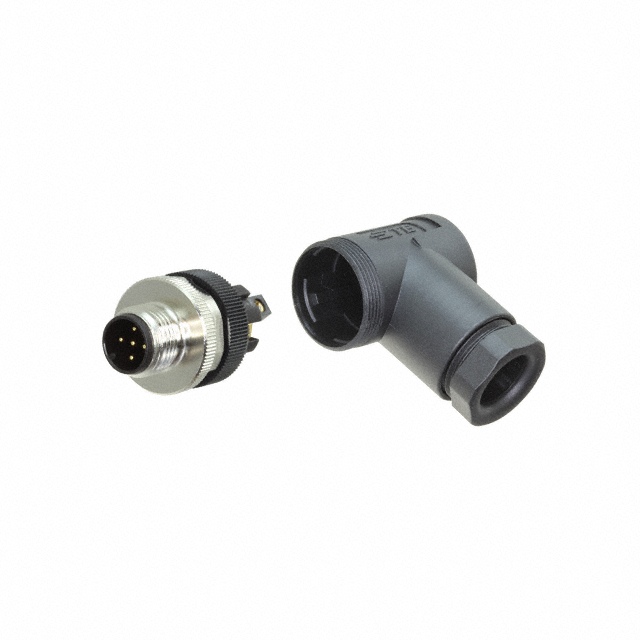

T4113002051-000
ActiveTE Connectivity Raychem Cable Protection
CONN RCPT MALE 5POS GOLD SCREW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T4113002051-000
ActiveTE Connectivity Raychem Cable Protection
CONN RCPT MALE 5POS GOLD SCREW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T4113002051-000 |
|---|---|
| Applications | Industrial |
| Backshell Material, Plating | Glass Filled, Polybutylene Terephthalate (PBT) |
| Cable Opening [Max] [custom] | 8 mm |
| Cable Opening [Max] [custom] | 0.315 in |
| Cable Opening [Min] [custom] | 6 mm |
| Cable Opening [Min] [custom] | 0.236 in |
| Color | Black, Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 3 µin |
| Contact Finish Thickness - Mating | 0.076 µm |
| Contact Material | Zinc Alloy |
| Current Rating (Amps) | 4 A |
| Features | Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shell Size - Insert | M12-5 |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 60 VDC |
T41130 Series
| Part | Voltage Rating | Features | Shell Finish | Orientation | Cable Opening [diameter] | Cable Opening [diameter] | Shell Size - Insert | Shell Material | Termination | Shielding | Applications | Insert Material | Contact Finish - Mating | Contact Material | Backshell Material, Plating | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Color | Current Rating (Amps) | Ingress Protection | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Primary Material | Number of Positions | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 250 VDC | Backshell | Nickel | A | 4 mm 6 mm | 0.157 in 0.236 in | M12-3 | Brass | Screw | Unshielded | Industrial | Nylon Polyamide (PA) | Silver | Brass | Glass Filled Polybutylene Terephthalate (PBT) | Male Pins Receptacle | 85 °C | -40 °C | Black Silver | 4 A | IP67 - Dust Tight Waterproof | Free Hanging (In-Line) Right Angle | 2.03 µm | 80 µin | Metal | |||||
TE Connectivity Raychem Cable Protection | 250 VDC | Backshell | Nickel | A | 4 mm 6 mm | 0.157 in 0.236 in | M12-4 | Brass | Screw | Unshielded | Industrial | Nylon Polyamide (PA) | Silver | Brass | Glass Filled Polybutylene Terephthalate (PBT) | Male Pins Receptacle | 85 °C | -40 °C | Black Silver | 4 A | IP67 - Dust Tight Waterproof | Free Hanging (In-Line) Right Angle | 2.03 µm | 80 µin | Metal | 4 | ||||
TE Connectivity Raychem Cable Protection | 250 VDC | Backshell | Nickel | A | 4 mm 6 mm | 0.157 in 0.236 in | M12-3 | Brass | Screw | Shielded | Industrial | Nylon Polyamide (PA) | Gold | Brass | Brass Nickel | Male Pins Receptacle | 85 °C | -40 °C | Silver | 4 A | IP67 - Dust Tight Waterproof | Free Hanging (In-Line) Right Angle | 0.076 µm | 3 µin | Metal | |||||
TE Connectivity Raychem Cable Protection | 60 VDC | Backshell | Nickel | A | M12-5 | Brass | Screw | Unshielded | Industrial | Nylon Polyamide (PA) | Gold | Zinc Alloy | Glass Filled Polybutylene Terephthalate (PBT) | Male Pins Receptacle | 85 °C | -40 °C | Black Silver | 4 A | IP67 - Dust Tight Waterproof | Free Hanging (In-Line) Right Angle | 0.076 µm | 3 µin | Metal | 8 mm | 6 mm | 0.315 in | 0.236 in | |||
TE Connectivity Raychem Cable Protection | 60 VDC | Backshell | Nickel | A | M12-5 | Brass | Screw | Unshielded | Industrial | Nylon Polyamide (PA) | Silver | Brass | Glass Filled Polybutylene Terephthalate (PBT) | Male Pins Receptacle | 85 °C | -40 °C | Black Silver | 4 A | IP67 - Dust Tight Waterproof | Free Hanging (In-Line) Right Angle | 2.03 µm | 80 µin | Metal | 8 mm | 6 mm | 0.315 in | 0.236 in | |||
TE Connectivity Raychem Cable Protection | 250 VDC | Backshell | Nickel | A | M12-4 | Brass | Screw | Unshielded | Industrial | Nylon Polyamide (PA) | Gold | Zinc Alloy | Glass Filled Polybutylene Terephthalate (PBT) | Male Pins Receptacle | 85 °C | -40 °C | Black Silver | 4 A | IP67 - Dust Tight Waterproof | Free Hanging (In-Line) Right Angle | 0.076 µm | 3 µin | Metal | 4 | 8 mm | 6 mm | 0.315 in | 0.236 in | ||
TE Connectivity Raychem Cable Protection | 30 VDC | Backshell | Nickel | A | 4 mm 6 mm | 0.157 in 0.236 in | M12-8 | Brass | Screw | Shielded | Industrial | Nylon Polyamide (PA) | Gold | Zinc Alloy | Brass Nickel | Male Pins Receptacle | 85 °C | -40 °C | Silver | 2 A | IP67 - Dust Tight Waterproof | Free Hanging (In-Line) Right Angle | 0.076 µm | 3 µin | Metal | 8 | ||||
TE Connectivity Raychem Cable Protection | 250 VDC | Backshell | Nickel | A | M12-2 | Brass | Screw | Shielded | Industrial | Nylon Polyamide (PA) | Gold | Brass | Brass Nickel | Male Pins Receptacle | 85 °C | -40 °C | Silver | 4 A | IP67 - Dust Tight Waterproof | Free Hanging (In-Line) Right Angle | 0.076 µm | 3 µin | Metal | 2 | 8 mm | 6 mm | 0.315 in | 0.236 in | ||
TE Connectivity Raychem Cable Protection | 60 VDC | Backshell | Nickel | A | 4 mm 6 mm | 0.157 in 0.236 in | M12-5 | Brass | Screw | Unshielded | Industrial | Nylon Polyamide (PA) | Silver | Brass | Glass Filled Polybutylene Terephthalate (PBT) | Male Pins Receptacle | 85 °C | -40 °C | Black Silver | 4 A | IP67 - Dust Tight Waterproof | Free Hanging (In-Line) Right Angle | 2.03 µm | 80 µin | Metal | |||||
TE Connectivity Raychem Cable Protection | 60 VDC | Backshell | Nickel | A | M12-5 | Brass | Screw | Shielded | Industrial | Nylon Polyamide (PA) | Gold | Zinc Alloy | Brass Nickel | Male Pins Receptacle | 85 °C | -40 °C | Silver | 4 A | IP67 - Dust Tight Waterproof | Free Hanging (In-Line) Right Angle | 0.076 µm | 3 µin | Metal | 8 mm | 6 mm | 0.315 in | 0.236 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.89 | |
| 10 | $ 7.37 | |||
| 25 | $ 6.84 | |||
| 50 | $ 6.46 | |||
| 100 | $ 6.11 | |||
| 250 | $ 5.67 | |||
| 500 | $ 5.36 | |||
| 1000 | $ 5.07 | |||
Description
General part information
T41130 Series
5 Position Circular Connector Receptacle, Male Pins Screw
