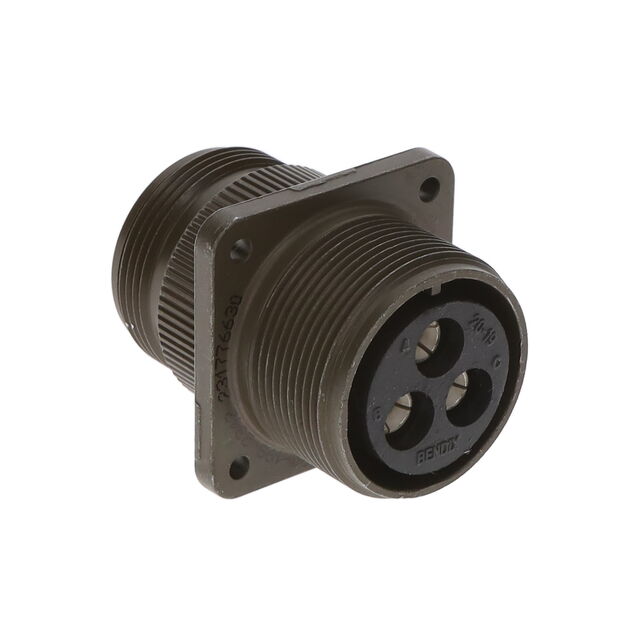

MS3100A20-19S

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3100A20-19S

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3100A20-19S

Applications	Military, Marine
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	46 A
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	19
Shell Size - Insert [Min]	20
Shielding	Unshielded
Voltage Rating	700 VDC, 500 VAC

MS3100A20 Series

Part	Current Rating (Amps)	Number of Positions	Contact Finish - Mating	Mounting Feature	Primary Material	Color	Contact Material	Insert Material	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Shell Finish	Ingress Protection	Qualification	Shell Material	Connector Type	Shielding	Voltage Rating	Features	Shell Size - Insert	Shell Size - Insert [Max] [diameter]	Shell Size - Insert [Min] [diameter]
Amphenol Industrial Operations MS3100A20-8S	13 A 46 A	6	Silver	Flange	Metal	Olive Drab	Copper Alloy	Neoprene	20	8	Marine Military	-55 °C	125 °C	N	Olive Drab Chromate over Cadmium	Environment Resistant	MIL-5015	Aluminum Alloy	Receptacle Female Sockets	Unshielded	200 VAC 250 VDC
Amphenol Industrial Operations MS3100A20-15S	23 A	7	Silver	Flange	Metal	Olive Drab	Copper Alloy	Neoprene	20	15	Marine Military	-55 °C	125 °C	N	Olive Drab Chromate over Cadmium	Environment Resistant	MIL-5015	Aluminum Alloy	Receptacle Female Sockets	Unshielded	500 VAC 700 VDC	Backshell
Amphenol Industrial Operations MS3100A20-19S	46 A		Silver	Flange	Metal	Olive Drab	Copper Alloy	Neoprene	20	19	Marine Military	-55 °C	125 °C	N	Olive Drab Chromate over Cadmium	Environment Resistant	MIL-5015	Aluminum Alloy	Receptacle Female Sockets	Unshielded	500 VAC 700 VDC
Amphenol Industrial Operations MS3100A20-8P	13 A 46 A	6	Silver	Flange	Metal	Olive Drab	Copper Alloy	Neoprene	20	8	Marine Military	-55 °C	125 °C	N	Olive Drab Chromate over Cadmium	Environment Resistant	MIL-5015	Aluminum Alloy	Male Pins Receptacle	Unshielded	200 VAC 250 VDC
Amphenol Industrial Operations MS3100A20-7S	13 A	8	Silver	Flange	Metal	Olive Drab	Copper Alloy	Neoprene			Marine Military	-55 °C	125 °C	N	Olive Drab Chromate over Cadmium	Environment Resistant	MIL-5015	Aluminum Alloy	Receptacle Female Sockets	Unshielded			20-7
Amphenol Industrial Operations MS3100A20-15P	23 A	7	Silver	Flange	Metal	Olive Drab	Copper Alloy	Neoprene	20	15	Marine Military	-55 °C	125 °C	N	Olive Drab Chromate over Cadmium	Environment Resistant	MIL-5015	Aluminum Alloy	Male Pins Receptacle	Unshielded	500 VAC 700 VDC
Amphenol Industrial Operations MS3100A20-16S	13 A 23 A	9	Silver	Flange	Metal	Olive Drab	Copper Alloy	Neoprene			Marine Military	-55 °C	125 °C	N	Olive Drab Chromate over Cadmium	Environment Resistant	MIL-5015	Aluminum Alloy	Receptacle Female Sockets	Unshielded	500 VAC 700 VDC			20	16
Amphenol Industrial Operations MS3100A20-29S	13 A		Silver	Flange	Metal	Olive Drab	Copper Alloy	Neoprene	20	29	Marine Military	-55 °C	125 °C	N	Olive Drab Chromate over Cadmium	Environment Resistant	MIL-5015	Aluminum Alloy	Receptacle Female Sockets	Unshielded	500 VAC 700 VDC
Amphenol Industrial Operations MS3100A20-4S	23 A	4	Silver	Flange	Metal	Olive Drab	Copper Alloy	Neoprene			Marine Military	-55 °C	125 °C	N	Olive Drab Chromate over Cadmium	Environment Resistant	MIL-5015	Aluminum Alloy	Receptacle Female Sockets	Unshielded	900 VAC 1250 VDC	Backshell	20-4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 41.09
		10	$ 35.98
		25	$ 34.43
		50	$ 33.31
		100	$ 32.20
		250	$ 30.43

Description

General part information

MS3100A20 Series

3 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources
