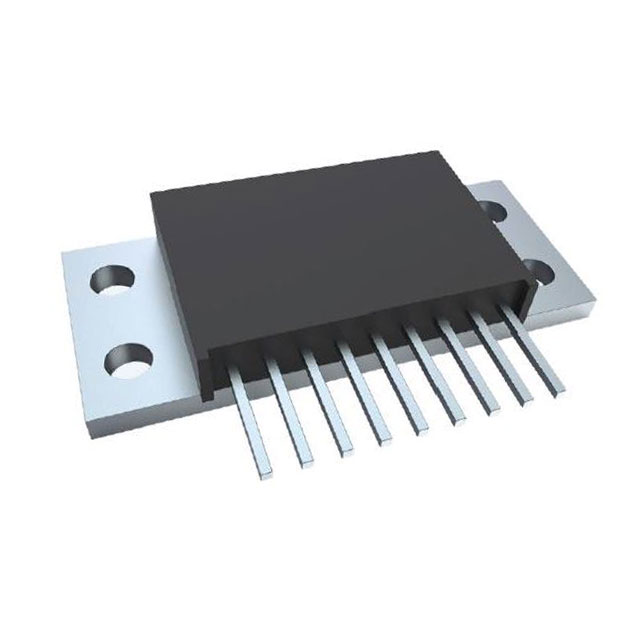

153CMQ100

Active

SMC Diode Solutions

DIODE MOD SCHOTT 100V 150A TO249

Search across all available documentation for this part.

Active

SMC Diode Solutions

DIODE MOD SCHOTT 100V 150A TO249

Technical Specifications

Parameters and characteristics for this part

Specification	153CMQ100

Current - Average Rectified (Io) (per Diode)	150 A
Current - Reverse Leakage @ Vr	1.5 mA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C
Package / Case	D-60, TO-249AA (Modified)
Speed	200 mA, 500 ns
Supplier Device Package	TO-249
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	100 V
Voltage - Forward (Vf) (Max) @ If	1.19 V

Part	Current - Average Rectified (Io) (per Diode)	Technology	Voltage - Forward (Vf) (Max) @ If [Max]	Package / Case	Diode Configuration	Current - Reverse Leakage @ Vr	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - Forward (Vf) (Max) @ If
SMC Diode Solutions 153CMQ080	75 A	Schottky	960 mV	D-60 TO-249AA (Modified)	1 Pair Common Cathode	1.5 mA	TO-249	80 V	Chassis Mount	200 mA 500 ns	175 ░C	-55 C
SMC Diode Solutions 153CMQ100	150 A	Schottky		D-60 TO-249AA (Modified)	1 Pair Common Cathode	1.5 mA	TO-249	100 V	Chassis Mount	200 mA 500 ns	175 ░C	-55 C	1.19 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	24	$ 33.59

General part information

Diode Array 1 Pair Common Cathode 100 V 150A Chassis Mount TO-249AA (Modified), D-60
