153CMQ080

Active

SMC Diode Solutions

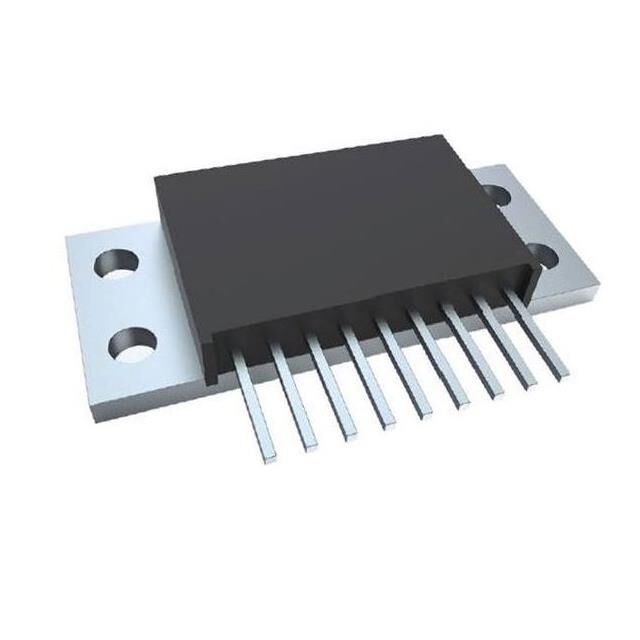

DIODE MOD SCHOTT 80V 75A TO-249

Search across all available documentation for this part.

Active

SMC Diode Solutions

DIODE MOD SCHOTT 80V 75A TO-249

Technical Specifications

Parameters and characteristics for this part

Specification	153CMQ080

Current - Average Rectified (Io) (per Diode)	75 A
Current - Reverse Leakage @ Vr	1.5 mA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C
Package / Case	D-60, TO-249AA (Modified)
Speed	200 mA, 500 ns
Supplier Device Package	TO-249
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	80 V
Voltage - Forward (Vf) (Max) @ If [Max]	960 mV

Part	Current - Average Rectified (Io) (per Diode)	Technology	Voltage - Forward (Vf) (Max) @ If [Max]	Package / Case	Diode Configuration	Current - Reverse Leakage @ Vr	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - Forward (Vf) (Max) @ If
SMC Diode Solutions 153CMQ080	75 A	Schottky	960 mV	D-60 TO-249AA (Modified)	1 Pair Common Cathode	1.5 mA	TO-249	80 V	Chassis Mount	200 mA 500 ns	175 ░C	-55 C
SMC Diode Solutions 153CMQ100	150 A	Schottky		D-60 TO-249AA (Modified)	1 Pair Common Cathode	1.5 mA	TO-249	100 V	Chassis Mount	200 mA 500 ns	175 ░C	-55 C	1.19 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode Array 1 Pair Common Cathode 80 V 75A Chassis Mount TO-249AA (Modified), D-60
