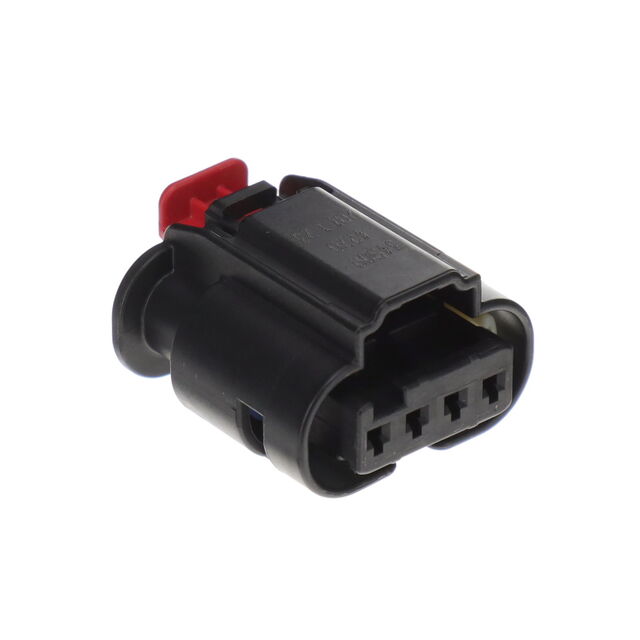

0349004220

Active

Molex

CONN RCPT HSG 4POS 4.00MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0349004220

Active

Molex

CONN RCPT HSG 4POS 4.00MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0349004220

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Blade Socket
Fastening Type	Latch Holder
Features	Connector Position Assurance (CPA), Sealed
Insulation Material	Glass Filled, Nylon, Syndiotactic Polystyrene (SPS), Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	4 mm
Pitch [x]	0.157 in

034900 Series

Part	Color	Pitch [x]	Pitch [x]	Number of Positions	Mounting Type	Note	Contact Termination	Connector Type	Number of Rows	Features	Contact Type	Fastening Type	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]
Molex 0349002122
Molex 0349002001	Yellow	4 mm	0.157 in	2	Free Hanging (In-Line)	Contacts Not Included	Crimp	Receptacle	1	Sealed	Female Blade Socket	Latch Holder
Molex 0349006121	Gray	4 mm	0.157 in	6	Free Hanging (In-Line)	Contacts Not Included	Crimp	Receptacle	1	Sealed	Female Blade Socket	Latch Holder	Glass Filled Nylon Polyamide (PA) Syndiotatic Polystyrene (SPS)	125 °C	-40 °C
Molex 0349003002	Yellow	4 mm	0.157 in		Free Hanging (In-Line)	Contacts Not Included	Crimp	Receptacle	1	Sealed	Female Blade Socket	Latch Holder
Molex 0349004122	Black	4 mm	0.157 in	4	Free Hanging (In-Line)		Crimp	Receptacle	1		Female Socket	Latch Holder	Glass Filled Nylon Polyamide (PA) Syndiotatic Polystyrene (SPS)	125 °C	-40 °C
Molex 0349006010	Yellow	4 mm	0.157 in	6	Free Hanging (In-Line)	Contacts Not Included	Crimp	Receptacle	1	Sealed	Female Blade Socket	Latch Holder
Molex 0349004220	Black	4 mm	0.157 in	4	Free Hanging (In-Line)		Crimp	Receptacle	1	Connector Position Assurance (CPA) Sealed	Female Blade Socket	Latch Holder	Glass Filled Nylon Polyamide (PA) Syndiotactic Polystyrene (SPS)	125 °C	-40 °C
Molex 0349006228
Molex 0349002120	Black	4 mm	0.157 in	2	Free Hanging (In-Line)	Contacts Not Included	Crimp	Receptacle	1	Sealed	Female Blade Socket	Latch Holder	Glass Filled Nylon Polyamide (PA) Syndiotatic Polystyrene (SPS)	155 °C	-40 °C
Molex 0349002101	Yellow	4 mm	0.157 in	2	Free Hanging (In-Line)	Contacts Not Included	Crimp	Receptacle	1	Sealed	Female Blade Socket	Latch Holder	Glass Filled Nylon Polyamide (PA) Syndiotatic Polystyrene (SPS)	125 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.78
		10	$ 0.64
		100	$ 0.54
		1400	$ 0.43
		2800	$ 0.39

Description

General part information

034900 Series

4 Rectangular Connectors - Housings Receptacle Black 0.157" (4.00mm)
