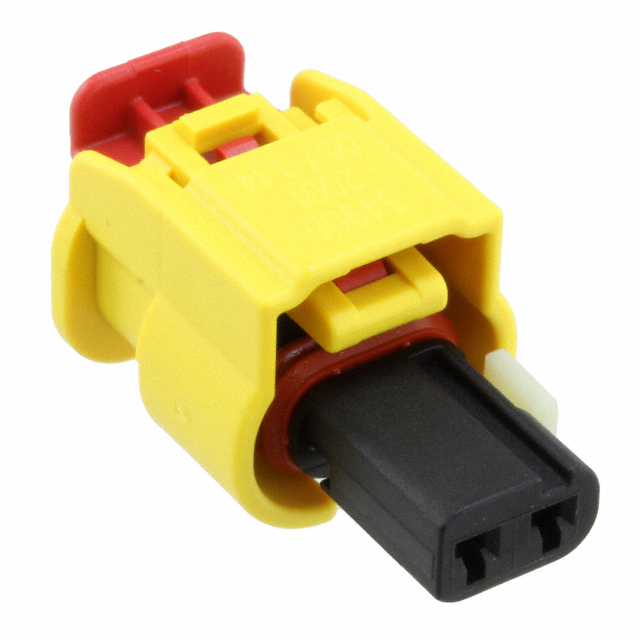

0349002001

Obsolete

Molex

CONN RCPT HSG 2POS 4.00MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMXP120 Sealed Connection System Datasheet +1

0349002001

Obsolete

Molex

CONN RCPT HSG 2POS 4.00MM

Deep-Dive with AI

DocumentsMXP120 Sealed Connection System Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0349002001

Color	Yellow
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Blade Socket
Fastening Type	Latch Holder
Features	Sealed
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Pitch [x]	4 mm
Pitch [x]	0.157 in

034900 Series

Part	Color	Pitch [x]	Pitch [x]	Number of Positions	Mounting Type	Note	Contact Termination	Connector Type	Number of Rows	Features	Contact Type	Fastening Type	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]
Molex 0349002122
Molex 0349002001	Yellow	4 mm	0.157 in	2	Free Hanging (In-Line)	Contacts Not Included	Crimp	Receptacle	1	Sealed	Female Blade Socket	Latch Holder
Molex 0349006121	Gray	4 mm	0.157 in	6	Free Hanging (In-Line)	Contacts Not Included	Crimp	Receptacle	1	Sealed	Female Blade Socket	Latch Holder	Glass Filled Nylon Polyamide (PA) Syndiotatic Polystyrene (SPS)	125 °C	-40 °C
Molex 0349003002	Yellow	4 mm	0.157 in		Free Hanging (In-Line)	Contacts Not Included	Crimp	Receptacle	1	Sealed	Female Blade Socket	Latch Holder
Molex 0349004122	Black	4 mm	0.157 in	4	Free Hanging (In-Line)		Crimp	Receptacle	1		Female Socket	Latch Holder	Glass Filled Nylon Polyamide (PA) Syndiotatic Polystyrene (SPS)	125 °C	-40 °C
Molex 0349006010	Yellow	4 mm	0.157 in	6	Free Hanging (In-Line)	Contacts Not Included	Crimp	Receptacle	1	Sealed	Female Blade Socket	Latch Holder
Molex 0349004220	Black	4 mm	0.157 in	4	Free Hanging (In-Line)		Crimp	Receptacle	1	Connector Position Assurance (CPA) Sealed	Female Blade Socket	Latch Holder	Glass Filled Nylon Polyamide (PA) Syndiotactic Polystyrene (SPS)	125 °C	-40 °C
Molex 0349006228
Molex 0349002120	Black	4 mm	0.157 in	2	Free Hanging (In-Line)	Contacts Not Included	Crimp	Receptacle	1	Sealed	Female Blade Socket	Latch Holder	Glass Filled Nylon Polyamide (PA) Syndiotatic Polystyrene (SPS)	155 °C	-40 °C
Molex 0349002101	Yellow	4 mm	0.157 in	2	Free Hanging (In-Line)	Contacts Not Included	Crimp	Receptacle	1	Sealed	Female Blade Socket	Latch Holder	Glass Filled Nylon Polyamide (PA) Syndiotatic Polystyrene (SPS)	125 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

034900 Series

2 Rectangular Connectors - Housings Receptacle Yellow 0.157" (4.00mm)

Documents

Technical documentation and resources

MXP120 Sealed Connection System

Datasheet

MXP120 Series Overview

Datasheet
