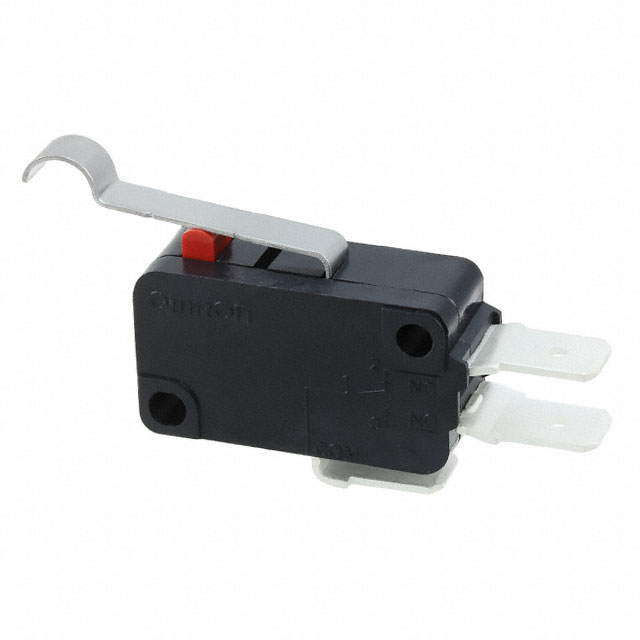

V-16G4-1C25-K(R)

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 16A 250V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

V-16G4-1C25-K(R)

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 16A 250V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V-16G4-1C25-K(R)

Actuator Type	Simulated Roller, Lever
Circuit	SPDT
Current Rating (Amps)	100 mA, 16 A
Differential Travel	1.5 mm
Differential Travel	0.06 "
Electrical Life	100000 Cycles
Ingress Protection	IP40
Mechanical Life	50000000 Cycles
Mounting Type	Chassis Mount
Operating Force	125 gf
Operating Position	18.7 mm
Operating Position [custom]	0.738 in
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-25 °C
Overtravel	1.6 mm
Overtravel	0.062 in
Pretravel	4 mm
Pretravel	0.157 in
Release Force	14 gf
Switch Function	On-Mom
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	250 V
Voltage Rating - DC	125 VDC

V-16 Series

Part	Voltage Rating - DC	Mounting Type	Switch Function	Actuator Type	Termination Style	Electrical Life	Operating Force	Pretravel	Pretravel	Ingress Protection	Mechanical Life	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Operating Position	Operating Position	Differential Travel	Differential Travel	Overtravel	Overtravel	Circuit	Current Rating (Amps)	Release Force	Operating Position [custom]
Omron Electronics Inc-EMC Div V-16-1C24(R)	125 VDC	Chassis Mount	On-Mom	Round (Pin Plunger)	Quick Connect - 0.187" (4.7mm)	100000 Cycles	100 gf	0.047 in	1.2 mm	IP40	50000000 Cycles	250 V	-25 °C	80 C	0.579 in	14.7 mm	0.016 "	0.4 mm	0.04 in	1 mm	SPDT	16 A 600 mA	20 gf
Omron Electronics Inc-EMC Div V-16G-1C24(R)	125 VDC	Chassis Mount	On-Mom	Round (Pin Plunger)	Quick Connect - 0.187" (4.7mm)	100000 Cycles	100 gf	0.047 in	1.2 mm	IP40	50000000 Cycles	250 V	-25 °C	80 C	0.579 in	14.7 mm	0.016 "	0.4 mm	0.04 in	1 mm	SPDT	16 A 100 mA	20 gf
Omron Electronics Inc-EMC Div V-16G523-2C25-K-1	125 VDC	Chassis Mount	On-Mom	Lever Roller	Quick Connect - 0.187" (4.7mm)	100000 Cycles	240 gf	0.063 in	1.6 mm	IP40	500000 Cycles	250 V	-25 °C	80 C	0.815 in	20.7 mm	0.025 in	0.6 mm	0.031 in	0.8 mm	SPST-NC	16 A 100 mA	50 gf
Omron Electronics Inc-EMC Div V-16G-1C24-K(R)	125 VDC	Chassis Mount	On-Mom	Round (Pin Plunger)	Quick Connect - 0.187" (4.7mm)	100000 Cycles	100 gf	0.047 in	1.2 mm	IP40	50000000 Cycles	250 V	-25 °C	80 C	0.579 in	14.7 mm	0.016 "	0.4 mm	0.04 in	1 mm	SPDT	16 A 100 mA	20 gf
Omron Electronics Inc-EMC Div V-16G-3C25(R)	125 VDC	Chassis Mount	Off-Mom	Round (Pin Plunger)	Quick Connect - 0.187" (4.7mm)	100000 Cycles	200 gf	0.047 in	1.2 mm	IP40	50000000 Cycles	250 V	-25 °C	80 C	0.579 in	14.7 mm	0.016 "	0.4 mm	0.04 in	1 mm	SPST-NO	16 A 100 mA	50 gf
Omron Electronics Inc-EMC Div V-16G-2C4-K(R)	125 VDC	Chassis Mount	On-Mom	Round (Pin Plunger)	Quick Connect - 0.250" (6.3mm)	100000 Cycles	100 gf	0.047 in	1.2 mm	IP40	50000000 Cycles	250 V	-25 °C	80 C	0.579 in	14.7 mm	0.016 "	0.4 mm	0.04 in	1 mm	SPST-NC	16 A 100 mA	20 gf
Omron Electronics Inc-EMC Div V-16G4-1C25-K(R)	125 VDC	Chassis Mount	On-Mom	Lever Simulated Roller	Quick Connect - 0.187" (4.7mm)	100000 Cycles	125 gf	0.157 in	4 mm	IP40	50000000 Cycles	250 V	-25 °C	80 C		18.7 mm	0.06 "	1.5 mm	0.062 in	1.6 mm	SPDT	16 A 100 mA	14 gf	0.738 in
Omron Electronics Inc-EMC Div V-16G-3C25-L(R)	125 VDC	Chassis Mount	Off-Mom	Round (Pin Plunger)	Quick Connect - 0.187" (4.7mm)	100000 Cycles	200 gf	0.047 in	1.2 mm	IP40	50000000 Cycles	250 V	-25 °C	80 C	0.579 in	14.7 mm	0.016 "	0.4 mm	0.04 in	1 mm	SPST-NO	16 A 100 mA	50 gf
Omron Electronics Inc-EMC Div V-16G-1C25 (R)	125 VDC	Chassis Mount	On-Mom	Round (Pin Plunger)	Quick Connect - 0.187" (4.7mm)	100000 Cycles	200 gf	0.047 in	1.2 mm	IP40	50000000 Cycles	250 V	-25 °C	80 C	0.579 in	14.7 mm	0.016 "	0.4 mm	0.04 in	1 mm	SPDT	16 A 100 mA	50 gf
Omron Electronics Inc-EMC Div V-16G-1C4-K(R)	125 VDC	Chassis Mount	On-Mom	Round (Pin Plunger)	Quick Connect - 0.250" (6.3mm)	100000 Cycles	100 gf	0.047 in	1.2 mm	IP40	50000000 Cycles	250 V	-25 °C	80 C	0.579 in	14.7 mm	0.016 "	0.4 mm	0.04 in	1 mm	SPDT	16 A 100 mA	20 gf
