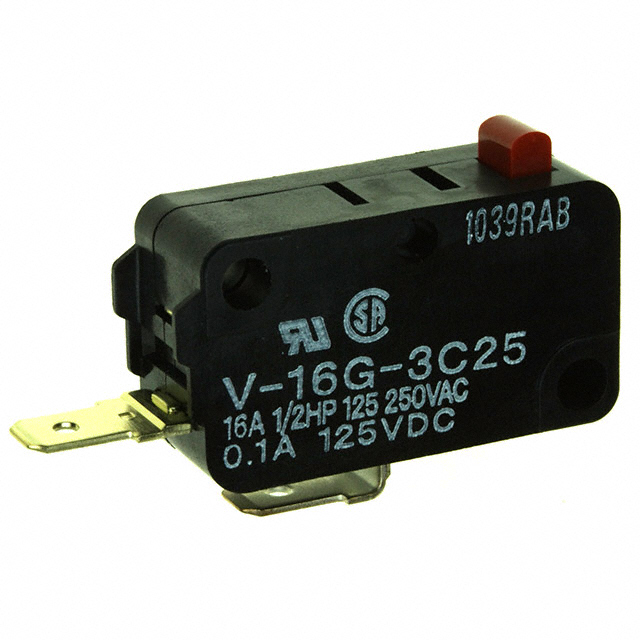

V-16G-3C25(R)

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACT SPST-NO 16A 250V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

V-16G-3C25(R)

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACT SPST-NO 16A 250V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V-16G-3C25(R)

Actuator Type	Round (Pin Plunger)
Circuit	SPST-NO
Current Rating (Amps)	100 mA, 16 A
Differential Travel	0.016 "
Differential Travel	0.4 mm
Electrical Life	100000 Cycles
Ingress Protection	IP40
Mechanical Life	50000000 Cycles
Mounting Type	Chassis Mount
Operating Force	200 gf
Operating Position	0.579 in
Operating Position	14.7 mm
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-25 °C
Overtravel	0.04 in
Overtravel	1 mm
Pretravel	0.047 in
Pretravel	1.2 mm
Release Force	50 gf
Switch Function	Off-Mom
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	250 V
Voltage Rating - DC	125 VDC

V-16 Series

Part	Voltage Rating - DC	Mounting Type	Switch Function	Actuator Type	Termination Style	Electrical Life	Operating Force	Pretravel	Pretravel	Ingress Protection	Mechanical Life	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Operating Position	Operating Position	Differential Travel	Differential Travel	Overtravel	Overtravel	Circuit	Current Rating (Amps)	Release Force	Operating Position [custom]
Omron Electronics Inc-EMC Div V-16-1C24(R)	125 VDC	Chassis Mount	On-Mom	Round (Pin Plunger)	Quick Connect - 0.187" (4.7mm)	100000 Cycles	100 gf	0.047 in	1.2 mm	IP40	50000000 Cycles	250 V	-25 °C	80 C	0.579 in	14.7 mm	0.016 "	0.4 mm	0.04 in	1 mm	SPDT	16 A 600 mA	20 gf
Omron Electronics Inc-EMC Div V-16G-1C24(R)	125 VDC	Chassis Mount	On-Mom	Round (Pin Plunger)	Quick Connect - 0.187" (4.7mm)	100000 Cycles	100 gf	0.047 in	1.2 mm	IP40	50000000 Cycles	250 V	-25 °C	80 C	0.579 in	14.7 mm	0.016 "	0.4 mm	0.04 in	1 mm	SPDT	16 A 100 mA	20 gf
Omron Electronics Inc-EMC Div V-16G523-2C25-K-1	125 VDC	Chassis Mount	On-Mom	Lever Roller	Quick Connect - 0.187" (4.7mm)	100000 Cycles	240 gf	0.063 in	1.6 mm	IP40	500000 Cycles	250 V	-25 °C	80 C	0.815 in	20.7 mm	0.025 in	0.6 mm	0.031 in	0.8 mm	SPST-NC	16 A 100 mA	50 gf
Omron Electronics Inc-EMC Div V-16G-1C24-K(R)	125 VDC	Chassis Mount	On-Mom	Round (Pin Plunger)	Quick Connect - 0.187" (4.7mm)	100000 Cycles	100 gf	0.047 in	1.2 mm	IP40	50000000 Cycles	250 V	-25 °C	80 C	0.579 in	14.7 mm	0.016 "	0.4 mm	0.04 in	1 mm	SPDT	16 A 100 mA	20 gf
Omron Electronics Inc-EMC Div V-16G-3C25(R)	125 VDC	Chassis Mount	Off-Mom	Round (Pin Plunger)	Quick Connect - 0.187" (4.7mm)	100000 Cycles	200 gf	0.047 in	1.2 mm	IP40	50000000 Cycles	250 V	-25 °C	80 C	0.579 in	14.7 mm	0.016 "	0.4 mm	0.04 in	1 mm	SPST-NO	16 A 100 mA	50 gf
Omron Electronics Inc-EMC Div V-16G-2C4-K(R)	125 VDC	Chassis Mount	On-Mom	Round (Pin Plunger)	Quick Connect - 0.250" (6.3mm)	100000 Cycles	100 gf	0.047 in	1.2 mm	IP40	50000000 Cycles	250 V	-25 °C	80 C	0.579 in	14.7 mm	0.016 "	0.4 mm	0.04 in	1 mm	SPST-NC	16 A 100 mA	20 gf
Omron Electronics Inc-EMC Div V-16G4-1C25-K(R)	125 VDC	Chassis Mount	On-Mom	Lever Simulated Roller	Quick Connect - 0.187" (4.7mm)	100000 Cycles	125 gf	0.157 in	4 mm	IP40	50000000 Cycles	250 V	-25 °C	80 C		18.7 mm	0.06 "	1.5 mm	0.062 in	1.6 mm	SPDT	16 A 100 mA	14 gf	0.738 in
Omron Electronics Inc-EMC Div V-16G-3C25-L(R)	125 VDC	Chassis Mount	Off-Mom	Round (Pin Plunger)	Quick Connect - 0.187" (4.7mm)	100000 Cycles	200 gf	0.047 in	1.2 mm	IP40	50000000 Cycles	250 V	-25 °C	80 C	0.579 in	14.7 mm	0.016 "	0.4 mm	0.04 in	1 mm	SPST-NO	16 A 100 mA	50 gf
Omron Electronics Inc-EMC Div V-16G-1C25 (R)	125 VDC	Chassis Mount	On-Mom	Round (Pin Plunger)	Quick Connect - 0.187" (4.7mm)	100000 Cycles	200 gf	0.047 in	1.2 mm	IP40	50000000 Cycles	250 V	-25 °C	80 C	0.579 in	14.7 mm	0.016 "	0.4 mm	0.04 in	1 mm	SPDT	16 A 100 mA	50 gf
Omron Electronics Inc-EMC Div V-16G-1C4-K(R)	125 VDC	Chassis Mount	On-Mom	Round (Pin Plunger)	Quick Connect - 0.250" (6.3mm)	100000 Cycles	100 gf	0.047 in	1.2 mm	IP40	50000000 Cycles	250 V	-25 °C	80 C	0.579 in	14.7 mm	0.016 "	0.4 mm	0.04 in	1 mm	SPDT	16 A 100 mA	20 gf

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 2.59

Description

General part information

V-16 Series

Switch SPST-NO Chassis Mount
