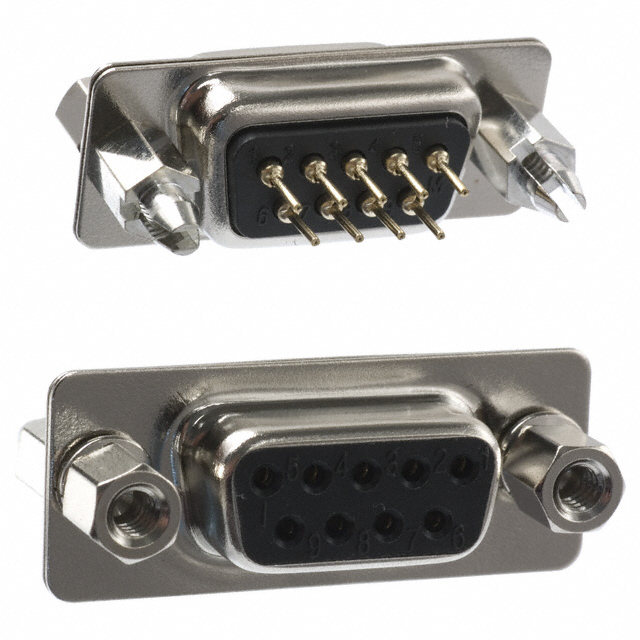

171-009-213R911 - 171-009-213R911

171-009-213R911

Active
MH Connectors

D SUB CONNECTOR, STANDARD, RECEPTACLE, 171 SERIES, 9 CONTACTS, DE, SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetBackshell Reference Guide+1
171-009-213R911 - 171-009-213R911

171-009-213R911

Active
MH Connectors

D SUB CONNECTOR, STANDARD, RECEPTACLE, 171 SERIES, 9 CONTACTS, DE, SOLDER

Deep-Dive with AI

DocumentsDatasheetBackshell Reference Guide+1

Technical Specifications

Parameters and characteristics for this part

Specification171-009-213R911
ColorBlack
Connector StyleD-Sub
Connector TypeReceptacle, Female Sockets
Contact FinishGold
Contact Finish ThicknessFlash
Contact FormStamped
Contact MaterialBrass
Contact TypeSignal
Current Rating (Amps)5 A
Dielectric MaterialPolyamide (PA9T), Nylon 9T
Flange FeatureBoard Side (4-40), Mating Side, Female Screwlock (4-40)
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Panel Mount
Number of Positions9
Number of Rows2
Shell Material, FinishNickel Plated, Steel
Shell Size, Connector Layout [custom]DE, E
Shell Size, Connector Layout [custom]1
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 4.82
10$ 3.69
25$ 3.32
40$ 3.15
80$ 2.92
240$ 2.60
480$ 2.42
960$ 2.26
2400$ 2.07
NewarkEach 1$ 3.46
10$ 2.94
25$ 2.76
50$ 2.66
100$ 2.54
250$ 2.35
500$ 2.24
1000$ 2.13

Description

General part information

171-009 Series

9 Position D-Sub Receptacle, Female Sockets Connector
