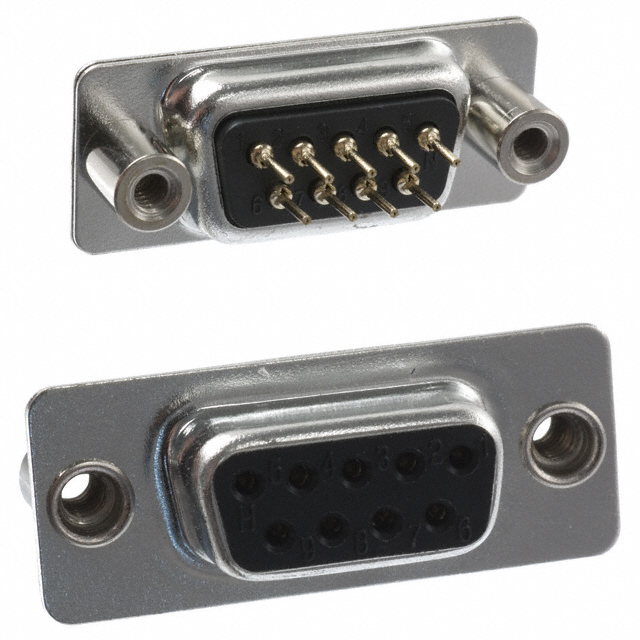

171-009-213R021 - 171-009-213R021

171-009-213R021

Active
MH Connectors

D SUB CONNECTOR, DB9, 9 CONTACTS, RECEPTACLE, SOLDER, DE, 171 SERIES, STEEL BODY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetBackshell Reference Guide+2
171-009-213R021 - 171-009-213R021

171-009-213R021

Active
MH Connectors

D SUB CONNECTOR, DB9, 9 CONTACTS, RECEPTACLE, SOLDER, DE, 171 SERIES, STEEL BODY

Deep-Dive with AI

DocumentsDatasheetBackshell Reference Guide+2

Technical Specifications

Parameters and characteristics for this part

Specification171-009-213R021
ColorBlack
Connector StyleD-Sub
Connector TypeReceptacle, Female Sockets
Contact FinishGold
Contact Finish ThicknessFlash
Contact FormStamped
Contact MaterialBrass
Contact TypeSignal
Current Rating (Amps)5 A
Dielectric MaterialPolyamide (PA9T), Nylon 9T
Flange FeatureBoard Side, 4-40
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Panel Mount
Number of Positions9
Number of Rows2
Shell Material, FinishNickel Plated, Steel
Shell Size, Connector Layout [custom]DE, E
Shell Size, Connector Layout [custom]1
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 3.80
10$ 2.90
25$ 2.61
40$ 2.48
80$ 2.30
230$ 2.05
440$ 1.92
945$ 1.77
2400$ 1.62
NewarkEach 100$ 1.83
250$ 1.73
500$ 1.64
1000$ 1.57

Description

General part information

171-009 Series

9 Position D-Sub Receptacle, Female Sockets Connector
