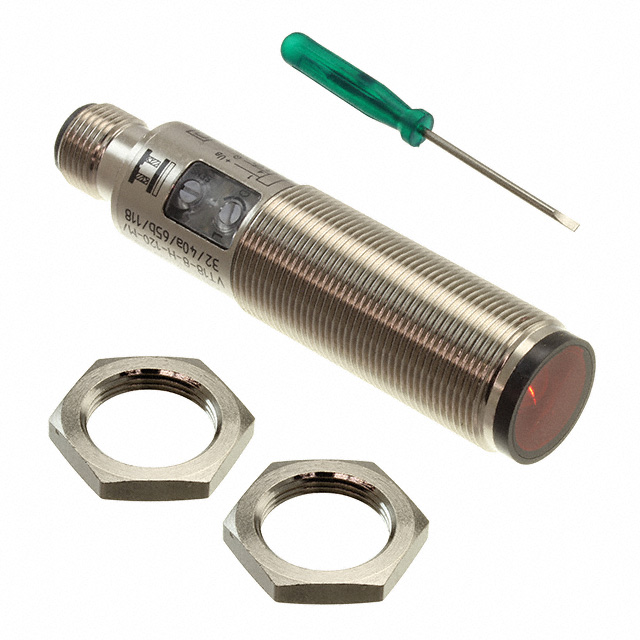

VT18-8-H-120-M/32/40A/65B/118

Obsolete

PEPPERL+FUCHS

PHOTO SEN 20-120MM BACK SUPPRESS

Search across all available documentation for this part.

Obsolete

PEPPERL+FUCHS

PHOTO SEN 20-120MM BACK SUPPRESS

Technical Specifications

Parameters and characteristics for this part

Part	Response Time	Output Configuration	Adjustment Type	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Connection Method	Light Source	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Method
PEPPERL+FUCHS VT18-8-H-120-M/32/40A/65B/118	1 ms	Light-On/Dark-On	Adjustable	IP67	70 °C	-25 °C	Connector M12	Red LED	0.787 "	120 mm	20 mm	4.724 in	30 VDC	10 VDC	Diffuse
PEPPERL+FUCHS VT18-8-400-M/32/40A/118	1 ms	PNP - Open Collector Light-ON\Dark-ON	Adjustable	IP67	70 °C	-25 °C	Connector M12	Red LED	0 "	400 mm	0 mm	15.748 in	30 VDC	10 VDC	Diffuse
PEPPERL+FUCHS VT18-8-400-M-LAS/40A/118/128	1 ms	Light-On/Dark-On	Adjustable	IP67	55 °C	-25 °C	Connector M12	Red Laser Diode (655nm)	0 "	400 mm	0 mm	15.748 in	30 VDC	10 VDC	Diffuse
PEPPERL+FUCHS VT18-8-400-M/40A/118/128	1 ms	Light-On/Dark-On	Adjustable	IP67	70 °C	-25 °C	Connector M12	Red LED	0 "	400 mm	0 mm	15.748 in	30 VDC	10 VDC	Diffuse

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 214.30

General part information

Diffuse Optical Sensor 0.787" ~ 4.724" (20mm ~ 120mm) Light-On/Dark-On
