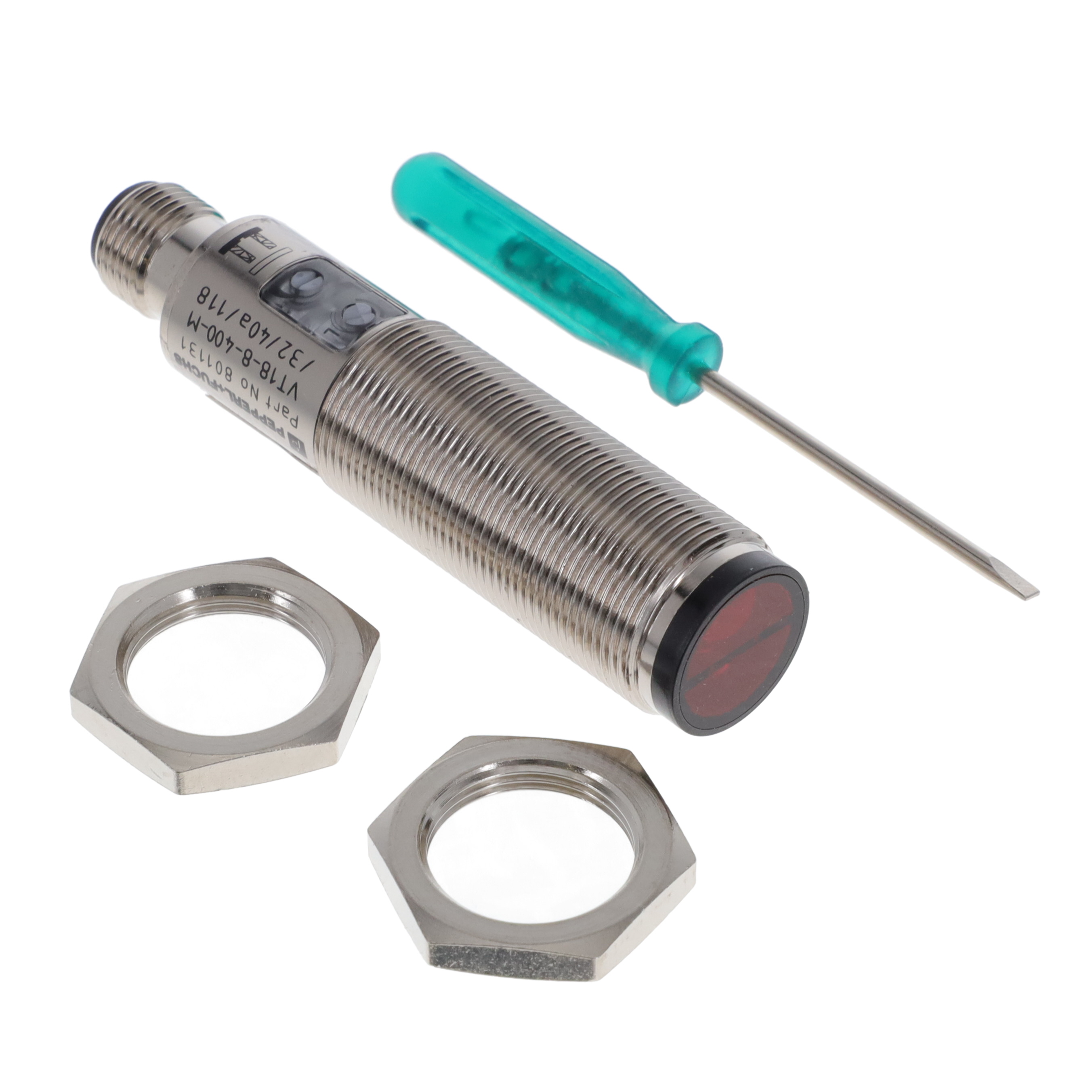

VT18-8-400-M/32/40A/118

Active

PEPPERL+FUCHS

PHOTOELECTRIC (AUTOMATION)

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

PHOTOELECTRIC (AUTOMATION)

Technical Specifications

Parameters and characteristics for this part

Specification	VT18-8-400-M/32/40A/118

Adjustment Type	Adjustable
Connection Method	Connector, M12
Ingress Protection	IP67
Light Source	Red LED
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Output Configuration	PNP - Open Collector, Light-ON\Dark-ON
Response Time	1 ms
Sensing Distance [Max]	400 mm
Sensing Distance [Max]	15.748 in
Sensing Distance [Min]	0 mm
Sensing Distance [Min]	0 "
Sensing Method	Diffuse
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Response Time	Output Configuration	Adjustment Type	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Connection Method	Light Source	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Method
PEPPERL+FUCHS VT18-8-H-120-M/32/40A/65B/118	1 ms	Light-On/Dark-On	Adjustable	IP67	70 °C	-25 °C	Connector M12	Red LED	0.787 "	120 mm	20 mm	4.724 in	30 VDC	10 VDC	Diffuse
PEPPERL+FUCHS VT18-8-400-M/32/40A/118	1 ms	PNP - Open Collector Light-ON\Dark-ON	Adjustable	IP67	70 °C	-25 °C	Connector M12	Red LED	0 "	400 mm	0 mm	15.748 in	30 VDC	10 VDC	Diffuse
PEPPERL+FUCHS VT18-8-400-M-LAS/40A/118/128	1 ms	Light-On/Dark-On	Adjustable	IP67	55 °C	-25 °C	Connector M12	Red Laser Diode (655nm)	0 "	400 mm	0 mm	15.748 in	30 VDC	10 VDC	Diffuse
PEPPERL+FUCHS VT18-8-400-M/40A/118/128	1 ms	Light-On/Dark-On	Adjustable	IP67	70 °C	-25 °C	Connector M12	Red LED	0 "	400 mm	0 mm	15.748 in	30 VDC	10 VDC	Diffuse

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diffuse Optical Sensor 0.000" ~ 15.748" (0mm ~ 400mm) PNP - Open Collector, Light-ON\Dark-ON
