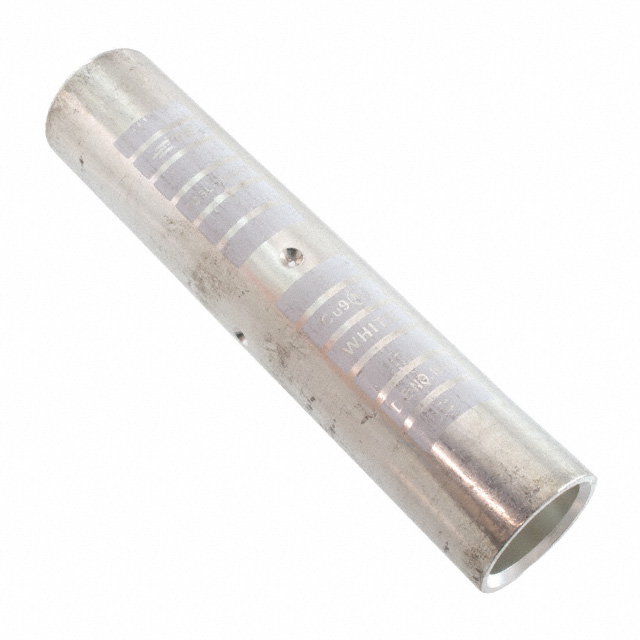

TCSL-1000-U

Obsolete

TE Energy & Utilities

COMPRESSION CONNECTORS

Search across all available documentation for this part.

Obsolete

TE Energy & Utilities

COMPRESSION CONNECTORS

Technical Specifications

Parameters and characteristics for this part

Specification	TCSL-1000-U

Color	White
Insulation	Non-Insulated
Number of Wire Entries	2
Terminal Type	Butt Splice, Inline, Individual Openings
Termination	Crimp
Wire Gauge	1000 MCM
Wire Gauge	1000 kcmil

Part	Termination	Number of Wire Entries	Color	Wire Gauge	Terminal Type	Insulation	Wire Gauge
TE Energy & Utilities TCSL-300-U	Crimp	2	White	300 MCM (kcmil)	Butt Splice Individual Openings Inline	Non-Insulated
TE Energy & Utilities TCSL-750-U	Crimp	2	Black	750 kcmil	Butt Splice Individual Openings Inline	Non-Insulated	750 MCM
TE Energy & Utilities TCSL-1/0-U	Crimp	2	Pink	44 AWG	Butt Splice Individual Openings Inline	Non-Insulated
TE Energy & Utilities TCSL-250-U	Crimp	2	Yellow	250 MCM	Butt Splice Individual Openings Inline	Non-Insulated	250 kcmil
TE Energy & Utilities TCSL-6-U	Crimp	2	Blue	6 AWG	Butt Splice Individual Openings Inline	Non-Insulated
TE Energy & Utilities TCSL-350-U	Crimp	2	Red	350 MCM (kcmil)	Butt Splice Individual Openings Inline	Non-Insulated
TE Energy & Utilities TCSL-1000-U	Crimp	2	White	1000 MCM	Butt Splice Individual Openings Inline	Non-Insulated	1000 kcmil
TE Energy & Utilities TCSL-2/0-U	Crimp	2	Black		Butt Splice Individual Openings Inline	Non-Insulated
TE Energy & Utilities TCSL-3/0-U	Crimp	2			Butt Splice Individual Openings Inline	Non-Insulated
TE Energy & Utilities TCSL-4/0-U	Crimp	2	Purple	4 aught AWG	Butt Splice Individual Openings Inline	Non-Insulated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Butt Splice, Inline, Individual Openings Connector Crimp 1000MCM (kcmil) White
