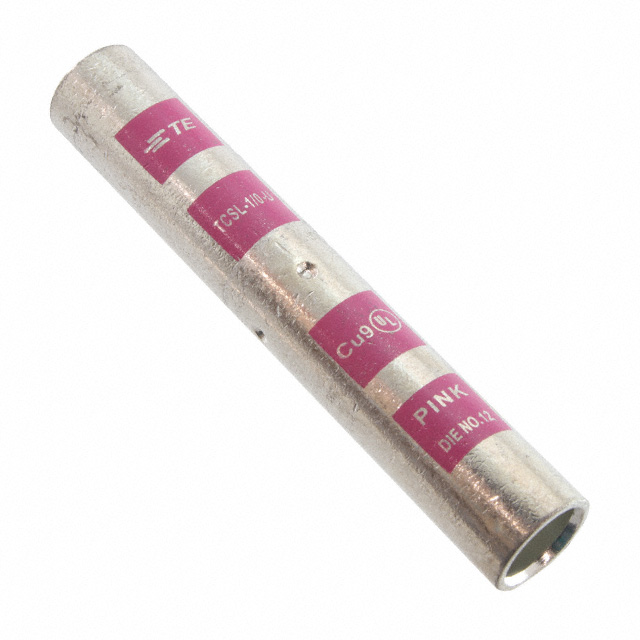

TCSL-1/0-U

Obsolete

TE Energy & Utilities

COMPRESSION CONNECTORS

Search across all available documentation for this part.

Obsolete

TE Energy & Utilities

COMPRESSION CONNECTORS

Technical Specifications

Parameters and characteristics for this part

Specification	TCSL-1/0-U

Color	Pink
Insulation	Non-Insulated
Number of Wire Entries	2
Terminal Type	Butt Splice, Inline, Individual Openings
Termination	Crimp
Wire Gauge	44 AWG

Part	Termination	Number of Wire Entries	Color	Wire Gauge	Terminal Type	Insulation	Wire Gauge
TE Energy & Utilities TCSL-300-U	Crimp	2	White	300 MCM (kcmil)	Butt Splice Individual Openings Inline	Non-Insulated
TE Energy & Utilities TCSL-750-U	Crimp	2	Black	750 kcmil	Butt Splice Individual Openings Inline	Non-Insulated	750 MCM
TE Energy & Utilities TCSL-1/0-U	Crimp	2	Pink	44 AWG	Butt Splice Individual Openings Inline	Non-Insulated
TE Energy & Utilities TCSL-250-U	Crimp	2	Yellow	250 MCM	Butt Splice Individual Openings Inline	Non-Insulated	250 kcmil
TE Energy & Utilities TCSL-6-U	Crimp	2	Blue	6 AWG	Butt Splice Individual Openings Inline	Non-Insulated
TE Energy & Utilities TCSL-350-U	Crimp	2	Red	350 MCM (kcmil)	Butt Splice Individual Openings Inline	Non-Insulated
TE Energy & Utilities TCSL-1000-U	Crimp	2	White	1000 MCM	Butt Splice Individual Openings Inline	Non-Insulated	1000 kcmil
TE Energy & Utilities TCSL-2/0-U	Crimp	2	Black		Butt Splice Individual Openings Inline	Non-Insulated
TE Energy & Utilities TCSL-3/0-U	Crimp	2			Butt Splice Individual Openings Inline	Non-Insulated
TE Energy & Utilities TCSL-4/0-U	Crimp	2	Purple	4 aught AWG	Butt Splice Individual Openings Inline	Non-Insulated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Butt Splice, Inline, Individual Openings Connector Crimp 1/0 AWG Pink
