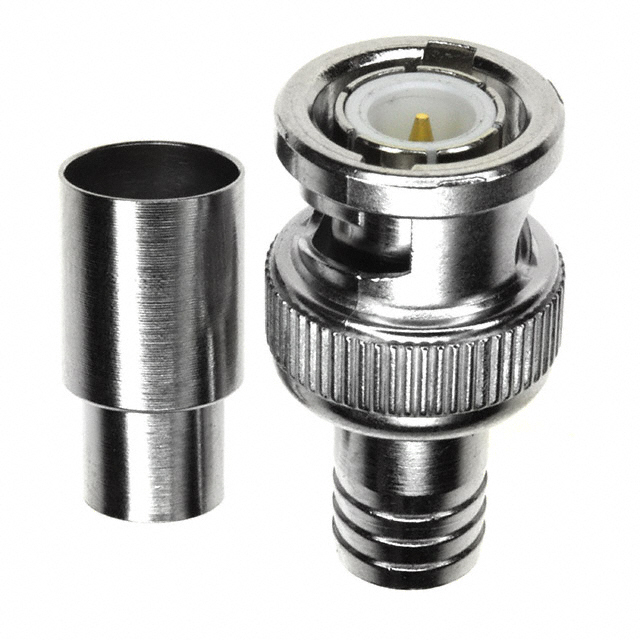

CP882

Active

Cinch Connectivity Solutions AIM-Cambridge

CONN BNC PLUG STR 50 OHM PUSH

Deep-Dive with AI

Search across all available documentation for this part.

CP882

Active

Cinch Connectivity Solutions AIM-Cambridge

CONN BNC PLUG STR 50 OHM PUSH

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CP882

Body Finish	Nickel
Body Material	Brass
Cable Group	62, RG-59
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Push On
Dielectric Material	Polymethylpentene (PMP)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Sleeve, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	500 V

- Series

Part	Contact Termination	Impedance	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Cable Group	Shield Termination	Center Contact Material	Fastening Type	Housing Color	Connector Type	Connector Style	Body Finish	Dielectric Material	Body Material	Center Contact Plating	Mounting Type	Frequency - Max [Max]	Number of Ports	Type Attributes	Height [z]	Height [z]	Features	Color	Material	Opening Size	Opening Size	Mating Cycles	Mounting Feature	Impedance	Center Gender	Conversion Type	Adapter Type	Convert From (Adapter End)	Convert To (Adapter End)	Adapter Series	Style	Includes
Cinch Connectivity Solutions AIM-Cambridge 28-91057	Crimp	75 Ohms	500 V	85 °C	-55 °C	AT&T 735A Belden 8218	Crimp	Brass	Bayonet Lock	Silver	Male Pin Plug	BNC	Nickel	Polytetrafluoroethylene (PTFE)	Brass	Gold	Free Hanging (In-Line)	2 GHz	1
Cinch Connectivity Solutions AIM-Cambridge 25-7250																	Fastener			Half	9.6 mm	0.378 "	Hardware Included	White	Polyethylene (PE)	5.4 mm	0.213 in
Cinch Connectivity Solutions AIM-Cambridge 25-7350	Solder Cup		500 V	85 °C	-55 °C		Solder	Bronze		Silver	Female Socket Jack	UHF	Nickel	Polyoxymethylene (POM) Acetal	Zinc	Nickel		500 MHz	1									500	Flange	Non-Constant
Cinch Connectivity Solutions AIM-Cambridge 26-8010		50 Ohms						Brass					Nickel	Polyoxymethylene (POM) Acetal	Brass	Nickel	Free Hanging (In-Line)														Female to Female	Same Series	Jack to Jack	Female Socket N Jack	Female Socket N Jack	N to N	Straight
Cinch Connectivity Solutions AIM-Cambridge 25-7200		75 Ohms						Phosphor Bronze					Nickel		Zinc	Tin		750 MHz											Bulkhead		Female to Female	Same Series	Jack to Jack	F Jack Female Socket	F Jack Female Socket	F to F	Straight
Cinch Connectivity Solutions AIM-Cambridge 25-7035		75 Ohms				RG-59TFE	Crimp			Silver	Male Pin Plug	F Type	Nickel		Brass		Free Hanging (In-Line)	750 MHz	1																			1 Connector 1 Sleeve
Cinch Connectivity Solutions AIM-Cambridge CPM8819	Crimp	50 Ohms	500 V	85 °C	-55 °C	188 316 RG-174	Crimp	Brass	Bayonet Lock	Silver	Male Pin Plug	BNC	Nickel	Polyoxymethylene (POM) Acetal	Zinc	Gold	Free Hanging (In-Line)	4 GHz	1									500										1 Bushing 1 Connector 1 Contact 1 Insert
Cinch Connectivity Solutions AIM-Cambridge 27-8100		75 Ohms						Brass	Bayonet Lock Threaded				Nickel	Polyoxymethylene (POM) Acetal	Brass	Gold	Free Hanging (In-Line)	500 MHz														Between Series	Plug to Jack	BNC Jack Female Socket	F Plug Male Pin	BNC to F	Straight
Cinch Connectivity Solutions AIM-Cambridge CP882	Push On	50 Ohms	500 V	85 °C	-55 °C	62 RG-59	Crimp	Brass	Bayonet Lock	Silver	Male Pin Plug	BNC	Nickel	Polymethylpentene (PMP)	Brass	Gold	Free Hanging (In-Line)	4 GHz	1									500										1 Connector 1 Sleeve
Cinch Connectivity Solutions AIM-Cambridge CPN8	Crimp Solder	50 Ohms	500 V	165 °C	-65 ░C	11 213 RG-8	Crimp	Brass		Silver	Male Pin Plug	N Type	Nickel		Brass	Gold	Free Hanging (In-Line)	11 GHz	1									500

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.85
		10	$ 2.42
		25	$ 2.27
		50	$ 2.16
		100	$ 2.06
		250	$ 1.93
		500	$ 1.84
		1000	$ 1.75
		2500	$ 1.64

Description

General part information

- Series

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Push On

Documents

Technical documentation and resources

No documents available
