25-7035
ActiveCinch Connectivity Solutions AIM-Cambridge
CONN F PLUG STR 75 OHM
Deep-Dive with AI
Search across all available documentation for this part.
25-7035
ActiveCinch Connectivity Solutions AIM-Cambridge

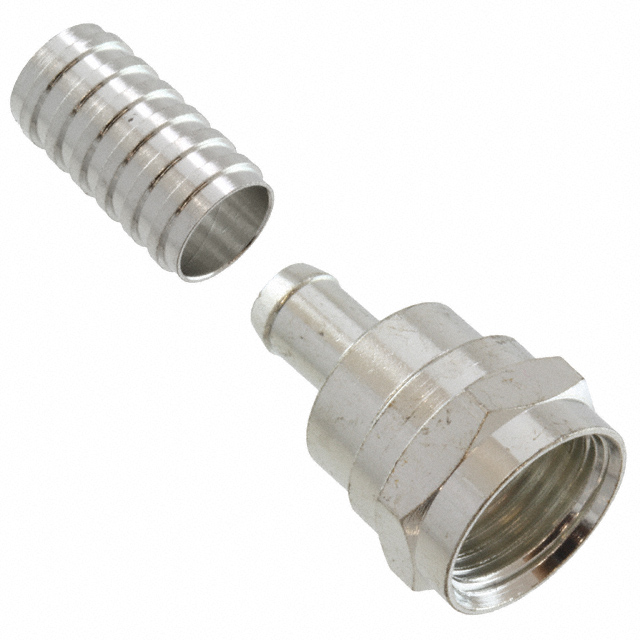

CONN F PLUG STR 75 OHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 25-7035 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | RG-59TFE |
| Connector Style | F Type |
| Connector Type | Male Pin, Plug |
| Frequency - Max [Max] | 750 MHz |
| Housing Color | Silver |
| Impedance | 75 Ohms |
| Includes | 1 Sleeve, 1 Connector |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
- Series
| Part | Contact Termination | Impedance | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Cable Group | Shield Termination | Center Contact Material | Fastening Type | Housing Color | Connector Type | Connector Style | Body Finish | Dielectric Material | Body Material | Center Contact Plating | Mounting Type | Frequency - Max [Max] | Number of Ports | Type Attributes | Height [z] | Height [z] | Features | Color | Material | Opening Size | Opening Size | Mating Cycles | Mounting Feature | Impedance | Center Gender | Conversion Type | Adapter Type | Convert From (Adapter End) | Convert To (Adapter End) | Adapter Series | Style | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cinch Connectivity Solutions AIM-Cambridge | Crimp | 75 Ohms | 500 V | 85 °C | -55 °C | AT&T 735A Belden 8218 | Crimp | Brass | Bayonet Lock | Silver | Male Pin Plug | BNC | Nickel | Polytetrafluoroethylene (PTFE) | Brass | Gold | Free Hanging (In-Line) | 2 GHz | 1 | |||||||||||||||||||
Cinch Connectivity Solutions AIM-Cambridge | Fastener | Half | 9.6 mm | 0.378 " | Hardware Included | White | Polyethylene (PE) | 5.4 mm | 0.213 in | |||||||||||||||||||||||||||||
Cinch Connectivity Solutions AIM-Cambridge | Solder Cup | 500 V | 85 °C | -55 °C | Solder | Bronze | Silver | Female Socket Jack | UHF | Nickel | Polyoxymethylene (POM) Acetal | Zinc | Nickel | 500 MHz | 1 | 500 | Flange | Non-Constant | ||||||||||||||||||||
Cinch Connectivity Solutions AIM-Cambridge | 50 Ohms | Brass | Nickel | Polyoxymethylene (POM) Acetal | Brass | Nickel | Free Hanging (In-Line) | Female to Female | Same Series | Jack to Jack | Female Socket N Jack | Female Socket N Jack | N to N | Straight | ||||||||||||||||||||||||
Cinch Connectivity Solutions AIM-Cambridge | 75 Ohms | Phosphor Bronze | Nickel | Zinc | Tin | 750 MHz | Bulkhead | Female to Female | Same Series | Jack to Jack | F Jack Female Socket | F Jack Female Socket | F to F | Straight | ||||||||||||||||||||||||
Cinch Connectivity Solutions AIM-Cambridge | 75 Ohms | RG-59TFE | Crimp | Silver | Male Pin Plug | F Type | Nickel | Brass | Free Hanging (In-Line) | 750 MHz | 1 | 1 Connector 1 Sleeve | ||||||||||||||||||||||||||
Cinch Connectivity Solutions AIM-Cambridge | Crimp | 50 Ohms | 500 V | 85 °C | -55 °C | 188 316 RG-174 | Crimp | Brass | Bayonet Lock | Silver | Male Pin Plug | BNC | Nickel | Polyoxymethylene (POM) Acetal | Zinc | Gold | Free Hanging (In-Line) | 4 GHz | 1 | 500 | 1 Bushing 1 Connector 1 Contact 1 Insert | |||||||||||||||||
Cinch Connectivity Solutions AIM-Cambridge | 75 Ohms | Brass | Bayonet Lock Threaded | Nickel | Polyoxymethylene (POM) Acetal | Brass | Gold | Free Hanging (In-Line) | 500 MHz | Between Series | Plug to Jack | BNC Jack Female Socket | F Plug Male Pin | BNC to F | Straight | |||||||||||||||||||||||
Cinch Connectivity Solutions AIM-Cambridge | Push On | 50 Ohms | 500 V | 85 °C | -55 °C | 62 RG-59 | Crimp | Brass | Bayonet Lock | Silver | Male Pin Plug | BNC | Nickel | Polymethylpentene (PMP) | Brass | Gold | Free Hanging (In-Line) | 4 GHz | 1 | 500 | 1 Connector 1 Sleeve | |||||||||||||||||
Cinch Connectivity Solutions AIM-Cambridge | Crimp Solder | 50 Ohms | 500 V | 165 °C | -65 ░C | 11 213 RG-8 | Crimp | Brass | Silver | Male Pin Plug | N Type | Nickel | Brass | Gold | Free Hanging (In-Line) | 11 GHz | 1 | 500 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 0.53 | |
Description
General part information
- Series
F Type Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line)
