Technical Specifications
Parameters and characteristics for this part
| Specification | M20-7831542 |
|---|---|
| Applications | Industrial, General Purpose, Telecommunications |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | Flash |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.335 " |
| Insulation Height | 8.51 mm |
| Insulation Material | Nylon 6T, Polyamide (PA6T) |
| Mated Stacking Heights | 12.63 mm, 11.04 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 30 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 1000 VDC |
M20-783 Series
| Part | Connector Type | Applications | Contact Shape | Voltage Rating | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Contact Type | Number of Rows | Contact Length - Post | Contact Length - Post | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Style | Insulation Height | Insulation Height | Insulation Color | Mounting Type | Contact Material | Fastening Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Positions | Material Flammability Rating | Mated Stacking Heights | Contact Finish - Post | Termination | Insulation Material | Number of Positions | Contact Finish Thickness - Mating | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Receptacle | General Purpose Industrial Telecommunications | Square | 1000 VDC | All | 0.1 in | 2.54 mm | Female Socket | 2 | 0.118 in | 3 mm | 3 A | -40 °C | 105 ░C | Board to Board Cable | 0.335 " | 8.51 mm | Black | Through Hole | Phosphor Bronze | Push-Pull | 2.54 mm | 0.1 in | 30 | UL94 V-0 | 11.04 mm 12.63 mm | Tin | Solder | Nylon 6T Polyamide (PA6T) | |||
Harwin Inc. | Receptacle | General Purpose Industrial Telecommunications | Square | 1000 VDC | All | 0.1 in | 2.54 mm | Female Socket | 2 | 0.118 in | 3 mm | 3 A | -40 °C | 105 ░C | Board to Board Cable | 0.335 " | 8.51 mm | Black | Through Hole | Phosphor Bronze | Push-Pull | 2.54 mm | 0.1 in | UL94 V-0 | 11.04 mm 12.63 mm | Tin | Solder | Nylon 6T Polyamide (PA6T) | 16 | |||
Harwin Inc. | Receptacle | General Purpose Industrial Telecommunications | Square | 1000 VDC | All | 0.1 in | 2.54 mm | Female Socket | 2 | 0.118 in | 3 mm | 3 A | -40 °C | 105 ░C | Board to Board Cable | 0.335 " | 8.51 mm | Black | Through Hole | Phosphor Bronze | Push-Pull | 2.54 mm | 0.1 in | 40 | UL94 V-0 | 11.04 mm 12.63 mm | Tin | Solder | Nylon 6T Polyamide (PA6T) | Flash | Gold | |
Harwin Inc. | Receptacle | General Purpose Industrial Telecommunications | Square | 1000 VDC | All | 0.1 in | 2.54 mm | Female Socket | 2 | 0.118 in | 3 mm | 3 A | -40 °C | 105 ░C | Board to Board Cable | 0.335 " | 8.51 mm | Black | Through Hole | Phosphor Bronze | Push-Pull | 2.54 mm | 0.1 in | 18 | UL94 V-0 | 11.04 mm 12.63 mm | Tin | Solder | Nylon 6T Polyamide (PA6T) | Flash | Gold | |
Harwin Inc. | Receptacle | General Purpose Industrial Telecommunications | Square | 1000 VDC | All | 0.1 in | 2.54 mm | Female Socket | 2 | 0.118 in | 3 mm | 3 A | -40 °C | 105 ░C | Board to Board Cable | 0.335 " | 8.51 mm | Black | Through Hole | Phosphor Bronze | Push-Pull | 2.54 mm | 0.1 in | 10 | UL94 V-0 | 11.04 mm 12.63 mm | Tin | Solder | Nylon 6T Polyamide (PA6T) | Flash | Gold | |
Harwin Inc. | Receptacle | General Purpose Industrial Telecommunications | Square | 1000 VDC | All | 0.1 in | 2.54 mm | Female Socket | 2 | 0.118 in | 3 mm | 3 A | -40 °C | 105 ░C | Board to Board Cable | 0.335 " | 8.51 mm | Black | Through Hole | Phosphor Bronze | Push-Pull | 2.54 mm | 0.1 in | 8 | UL94 V-0 | 11.04 mm 12.63 mm | Tin | Solder | Nylon 6T Polyamide (PA6T) | |||
Harwin Inc. | Receptacle | General Purpose Industrial Telecommunications | Square | 1000 VDC | All | 0.1 in | 2.54 mm | Female Socket | 2 | 0.118 in | 3 mm | 3 A | -40 °C | 105 ░C | Board to Board Cable | 0.335 " | 8.51 mm | Black | Through Hole | Phosphor Bronze | Push-Pull | 2.54 mm | 0.1 in | 26 | UL94 V-0 | 11.04 mm 12.63 mm | Tin | Solder | Nylon 6T Polyamide (PA6T) | |||
Harwin Inc. | Receptacle | General Purpose Industrial Telecommunications | Square | 1000 VDC | All | 0.1 in | 2.54 mm | Female Socket | 2 | 0.118 in | 3 mm | 3 A | -40 °C | 105 ░C | Board to Board Cable | 0.335 " | 8.51 mm | Black | Through Hole | Phosphor Bronze | Push-Pull | 2.54 mm | 0.1 in | 24 | UL94 V-0 | 11.04 mm 12.63 mm | Tin | Solder | Nylon 6T Polyamide (PA6T) | Flash | Gold | |
Harwin Inc. | Receptacle | General Purpose Industrial Telecommunications | Square | 1000 VDC | All | 0.1 in | 2.54 mm | Female Socket | 2 | 0.118 in | 3 mm | 3 A | -40 °C | 105 ░C | Board to Board Cable | 0.335 " | 8.51 mm | Black | Through Hole | Phosphor Bronze | Push-Pull | 2.54 mm | 0.1 in | 30 | UL94 V-0 | 11.04 mm 12.63 mm | Tin | Solder | Nylon 6T Polyamide (PA6T) | Flash | Gold | |
Harwin Inc. | Receptacle | General Purpose Industrial Telecommunications | Square | 1000 VDC | All | 0.1 in | 2.54 mm | Female Socket | 2 | 0.118 in | 3 mm | 3 A | -40 °C | 105 ░C | Board to Board Cable | 0.335 " | 8.51 mm | Black | Through Hole | Phosphor Bronze | Push-Pull | 2.54 mm | 0.1 in | 12 | UL94 V-0 | 11.04 mm 12.63 mm | Tin | Solder | Nylon 6T Polyamide (PA6T) | Flash | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M20-783 Series

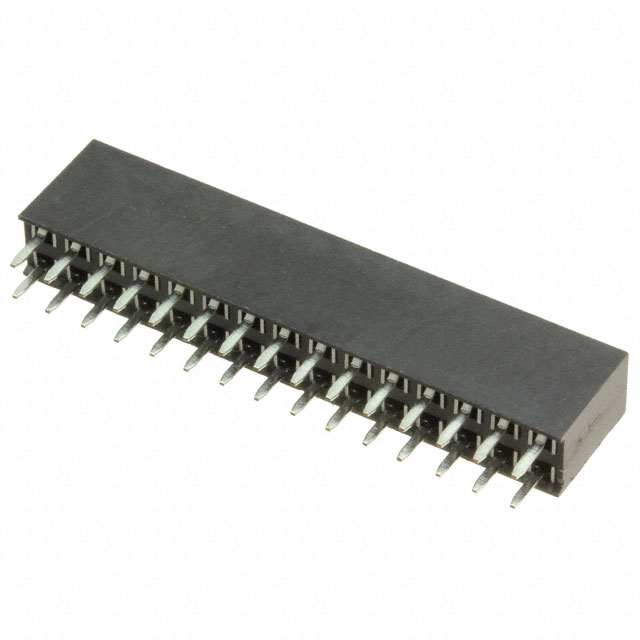

30 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
