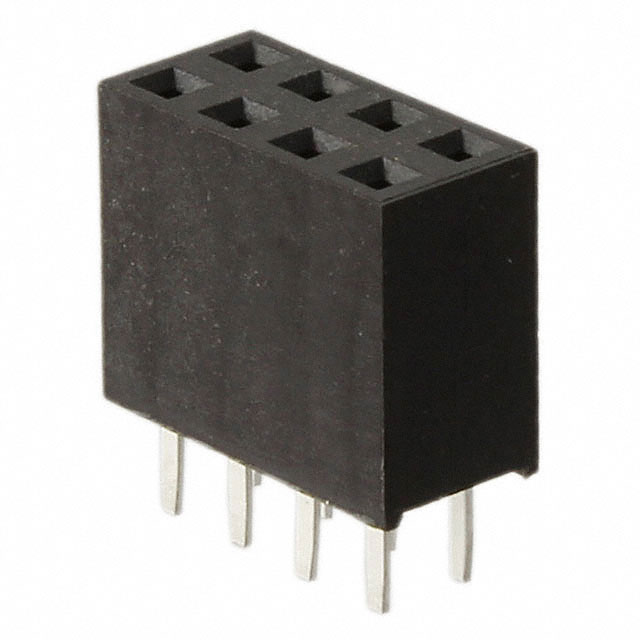

M20-7830446

Active

Harwin Inc.

BOARD-TO-BOARD CONNECTOR, M20 SERIES, THROUGH HOLE, RECEPTACLE, 8, 2.54 MM, TIN PLATED CONTACTS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM20-003 M20 Series Spec Sheet +4

M20-7830446

Active

Harwin Inc.

BOARD-TO-BOARD CONNECTOR, M20 SERIES, THROUGH HOLE, RECEPTACLE, 8, 2.54 MM, TIN PLATED CONTACTS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM20-003 M20 Series Spec Sheet +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M20-7830446

Applications	Industrial, General Purpose, Telecommunications
Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Mated Stacking Heights	12.63 mm, 11.04 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	1000 VDC

M20-783 Series

Part	Connector Type	Applications	Contact Shape	Voltage Rating	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Type	Number of Rows	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Style	Insulation Height	Insulation Height	Insulation Color	Mounting Type	Contact Material	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Material Flammability Rating	Mated Stacking Heights	Contact Finish - Post	Termination	Insulation Material	Number of Positions	Contact Finish Thickness - Mating	Contact Finish - Mating
Harwin Inc. M20-7831546	Receptacle	General Purpose Industrial Telecommunications	Square	1000 VDC	All	0.1 in	2.54 mm	Female Socket	2	0.118 in	3 mm	3 A	-40 °C	105 ░C	Board to Board Cable	0.335 "	8.51 mm	Black	Through Hole	Phosphor Bronze	Push-Pull	2.54 mm	0.1 in	30	UL94 V-0	11.04 mm 12.63 mm	Tin	Solder	Nylon 6T Polyamide (PA6T)
Harwin Inc. M20-7830846	Receptacle	General Purpose Industrial Telecommunications	Square	1000 VDC	All	0.1 in	2.54 mm	Female Socket	2	0.118 in	3 mm	3 A	-40 °C	105 ░C	Board to Board Cable	0.335 "	8.51 mm	Black	Through Hole	Phosphor Bronze	Push-Pull	2.54 mm	0.1 in		UL94 V-0	11.04 mm 12.63 mm	Tin	Solder	Nylon 6T Polyamide (PA6T)	16
Harwin Inc. M20-7832042	Receptacle	General Purpose Industrial Telecommunications	Square	1000 VDC	All	0.1 in	2.54 mm	Female Socket	2	0.118 in	3 mm	3 A	-40 °C	105 ░C	Board to Board Cable	0.335 "	8.51 mm	Black	Through Hole	Phosphor Bronze	Push-Pull	2.54 mm	0.1 in	40	UL94 V-0	11.04 mm 12.63 mm	Tin	Solder	Nylon 6T Polyamide (PA6T)		Flash	Gold
Harwin Inc. M20-7830942	Receptacle	General Purpose Industrial Telecommunications	Square	1000 VDC	All	0.1 in	2.54 mm	Female Socket	2	0.118 in	3 mm	3 A	-40 °C	105 ░C	Board to Board Cable	0.335 "	8.51 mm	Black	Through Hole	Phosphor Bronze	Push-Pull	2.54 mm	0.1 in	18	UL94 V-0	11.04 mm 12.63 mm	Tin	Solder	Nylon 6T Polyamide (PA6T)		Flash	Gold
Harwin Inc. M20-7830542	Receptacle	General Purpose Industrial Telecommunications	Square	1000 VDC	All	0.1 in	2.54 mm	Female Socket	2	0.118 in	3 mm	3 A	-40 °C	105 ░C	Board to Board Cable	0.335 "	8.51 mm	Black	Through Hole	Phosphor Bronze	Push-Pull	2.54 mm	0.1 in	10	UL94 V-0	11.04 mm 12.63 mm	Tin	Solder	Nylon 6T Polyamide (PA6T)		Flash	Gold
Harwin Inc. M20-7830446	Receptacle	General Purpose Industrial Telecommunications	Square	1000 VDC	All	0.1 in	2.54 mm	Female Socket	2	0.118 in	3 mm	3 A	-40 °C	105 ░C	Board to Board Cable	0.335 "	8.51 mm	Black	Through Hole	Phosphor Bronze	Push-Pull	2.54 mm	0.1 in	8	UL94 V-0	11.04 mm 12.63 mm	Tin	Solder	Nylon 6T Polyamide (PA6T)
Harwin Inc. M20-7831346	Receptacle	General Purpose Industrial Telecommunications	Square	1000 VDC	All	0.1 in	2.54 mm	Female Socket	2	0.118 in	3 mm	3 A	-40 °C	105 ░C	Board to Board Cable	0.335 "	8.51 mm	Black	Through Hole	Phosphor Bronze	Push-Pull	2.54 mm	0.1 in	26	UL94 V-0	11.04 mm 12.63 mm	Tin	Solder	Nylon 6T Polyamide (PA6T)
Harwin Inc. M20-7831242	Receptacle	General Purpose Industrial Telecommunications	Square	1000 VDC	All	0.1 in	2.54 mm	Female Socket	2	0.118 in	3 mm	3 A	-40 °C	105 ░C	Board to Board Cable	0.335 "	8.51 mm	Black	Through Hole	Phosphor Bronze	Push-Pull	2.54 mm	0.1 in	24	UL94 V-0	11.04 mm 12.63 mm	Tin	Solder	Nylon 6T Polyamide (PA6T)		Flash	Gold
Harwin Inc. M20-7831542	Receptacle	General Purpose Industrial Telecommunications	Square	1000 VDC	All	0.1 in	2.54 mm	Female Socket	2	0.118 in	3 mm	3 A	-40 °C	105 ░C	Board to Board Cable	0.335 "	8.51 mm	Black	Through Hole	Phosphor Bronze	Push-Pull	2.54 mm	0.1 in	30	UL94 V-0	11.04 mm 12.63 mm	Tin	Solder	Nylon 6T Polyamide (PA6T)		Flash	Gold
Harwin Inc. M20-7830642	Receptacle	General Purpose Industrial Telecommunications	Square	1000 VDC	All	0.1 in	2.54 mm	Female Socket	2	0.118 in	3 mm	3 A	-40 °C	105 ░C	Board to Board Cable	0.335 "	8.51 mm	Black	Through Hole	Phosphor Bronze	Push-Pull	2.54 mm	0.1 in	12	UL94 V-0	11.04 mm 12.63 mm	Tin	Solder	Nylon 6T Polyamide (PA6T)		Flash	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.57
		54	$ 1.28
		108	$ 1.22
		540	$ 1.02
		1026	$ 0.87
		5022	$ 0.77
		10044	$ 0.75
Newark	Each	1	$ 1.63
		10	$ 1.43
		100	$ 1.27
		250	$ 1.15
		500	$ 1.06
		1000	$ 0.98
		2500	$ 0.92
		5000	$ 0.86

Description

General part information

M20-783 Series

8 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin
