2PH1-02-UA
ActiveAdam Tech

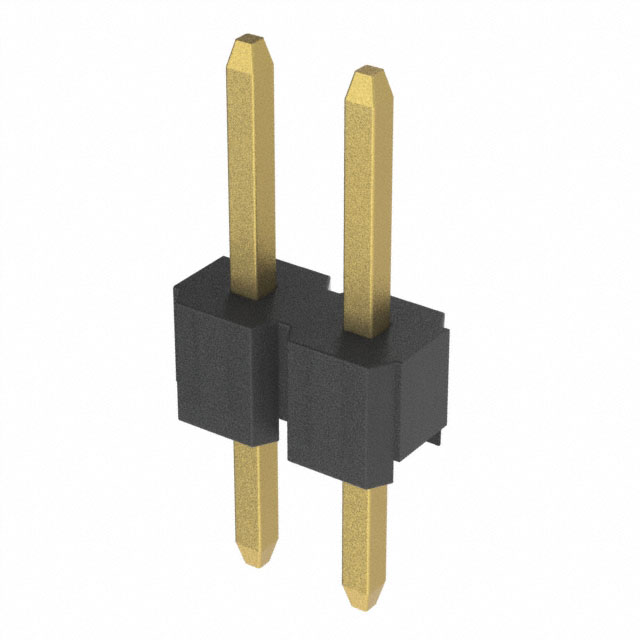

CONN UNSHROUDED HEADER HDR 2 POS 2MM SOLDER ST TOP ENTRY THRU-HOLE BAG
Deep-Dive with AI
Search across all available documentation for this part.
2PH1-02-UA
ActiveAdam Tech
CONN UNSHROUDED HEADER HDR 2 POS 2MM SOLDER ST TOP ENTRY THRU-HOLE BAG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2PH1-02-UA |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Length - Mating | 0.154 in |
| Contact Length - Mating | 3.91 mm |
| Contact Length - Post | 2.79 mm |
| Contact Length - Post [x] | 0.11 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.079 in |
| Insulation Height | 2 mm |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Overall Contact Length | 8.7 mm |
| Overall Contact Length | 0.343 in |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Shrouding | Unshrouded |
| Termination | Solder |
| Voltage Rating | 250 VAC |
2PH1 Series
| Part | Insulation Material | Termination | Contact Length - Post [x] | Contact Length - Post | Voltage Rating | Contact Finish - Post | Material Flammability Rating | Shrouding | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions Loaded | Connector Type | Pitch - Mating [x] | Pitch - Mating [x] | Fastening Type | Number of Rows | Contact Material | Contact Shape | Overall Contact Length | Overall Contact Length | Contact Finish - Mating | Number of Positions | Mounting Type | Insulation Height | Insulation Height | Contact Length - Mating | Contact Length - Mating | Contact Type | Contact Finish Thickness - Post | Insulation Color | Contact Finish Thickness - Mating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Adam Tech | Polybutylene Terephthalate (PBT) | Solder | 0.11 in | 2.79 mm | 250 VAC | Gold | UL94 V-0 | Unshrouded | 105 ░C | -55 °C | All | Header | 0.079 in | 2 mm | Push-Pull | 1 | Brass | Square | 8.7 mm | 0.343 in | Gold | 6 | Through Hole | 0.079 in | 2 mm | 0.154 in | 3.91 mm | Male Pin | Flash | Black | Flash | |
Adam Tech | Thermoplastic | Solder | 250 VAC | Gold | UL94 V-0 | Unshrouded | 105 ░C | -40 °C | All | Header | 0.079 in | 2 mm | Push-Pull | 1 | Brass | Square | Gold | Surface Mount | 0.079 in | 2 mm | 0.157 in | 4 mm | Male Pin | Flash | Black | Flash | 16 | |||||
Adam Tech | Thermoplastic | Solder | 250 VAC | Gold | UL94 V-0 | Unshrouded | 105 ░C | -40 °C | All | Header | 0.079 in | 2 mm | Push-Pull | 1 | Brass | Square | Gold | 6 | Surface Mount | 0.079 in | 2 mm | 0.157 in | 4 mm | Male Pin | Flash | Black | Flash | |||||
Adam Tech | Polybutylene Terephthalate (PBT) | Solder | 0.11 in | 2.79 mm | 250 VAC | Gold | UL94 V-0 | Unshrouded | 105 ░C | -55 °C | All | Header | 0.079 in | 2 mm | Push-Pull | 1 | Brass | Square | 8.7 mm | 0.343 in | Gold | 9 | Through Hole | 0.079 in | 2 mm | 0.154 in | 3.91 mm | Male Pin | Flash | Black | Flash | |
Adam Tech | Polybutylene Terephthalate (PBT) | Solder | 0.11 in | 2.79 mm | 250 VAC | Gold | UL94 V-0 | Unshrouded | 105 ░C | -55 °C | All | Header | 0.079 in | 2 mm | Push-Pull | 1 | Brass | Square | 8.7 mm | 0.343 in | Gold | 2 | Through Hole | 0.079 in | 2 mm | 0.154 in | 3.91 mm | Male Pin | Flash | Black | Flash | |
Adam Tech | Thermoplastic | Solder | 250 VAC | Gold | UL94 V-0 | Unshrouded | 105 ░C | -40 °C | All | Header | 0.079 in | 2 mm | Push-Pull | 1 | Brass | Square | Gold | Surface Mount | 0.079 in | 2 mm | 0.157 in | 4 mm | Male Pin | Flash | Black | Flash | 16 | |||||
Adam Tech | Polybutylene Terephthalate (PBT) | Solder | 0.11 in | 2.79 mm | 250 VAC | Gold | UL94 V-0 | Unshrouded | 105 ░C | -55 °C | All | Header | 0.079 in | 2 mm | Push-Pull | 1 | Brass | Square | 8.7 mm | 0.343 in | Gold | 13 | Through Hole | 0.079 in | 2 mm | 0.154 in | 3.91 mm | Male Pin | Flash | Black | Flash | |
Adam Tech | Polybutylene Terephthalate (PBT) | Solder | 0.11 in | 2.79 mm | 250 VAC | Gold | UL94 V-0 | Unshrouded | 105 ░C | -55 °C | All | Header | 0.079 in | 2 mm | Push-Pull | 1 | Brass | Square | 8.7 mm | 0.343 in | Gold | 12 | Through Hole | 0.079 in | 2 mm | 0.154 in | 3.91 mm | Male Pin | Flash | Black | Flash | |
Adam Tech | Thermoplastic | Solder | 250 VAC | Gold | UL94 V-0 | Unshrouded | 105 ░C | -40 °C | All | Header | 0.079 in | 2 mm | Push-Pull | 1 | Brass | Square | Gold | 10 | Surface Mount | 0.079 in | 2 mm | 0.157 in | 4 mm | Male Pin | Flash | Black | Flash | |||||
Adam Tech | Thermoplastic | Solder | 250 VAC | Gold | UL94 V-0 | Unshrouded | 105 ░C | -40 °C | All | Header | 0.079 in | 2 mm | Push-Pull | 1 | Brass | Square | Gold | 2 | Surface Mount | 0.079 in | 2 mm | 0.157 in | 4 mm | Male Pin | Flash | Black | Flash |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.10 | |
| 10 | $ 0.05 | |||
| 100 | $ 0.04 | |||
| 500 | $ 0.03 | |||
| 1000 | $ 0.03 | |||
| 5000 | $ 0.02 | |||
| 10000 | $ 0.02 | |||
Description
General part information
2PH1 Series
Connector Header Through Hole 2 position 0.079" (2.00mm)
