2PH1-16-UA-SMT-B

Active

Adam Tech

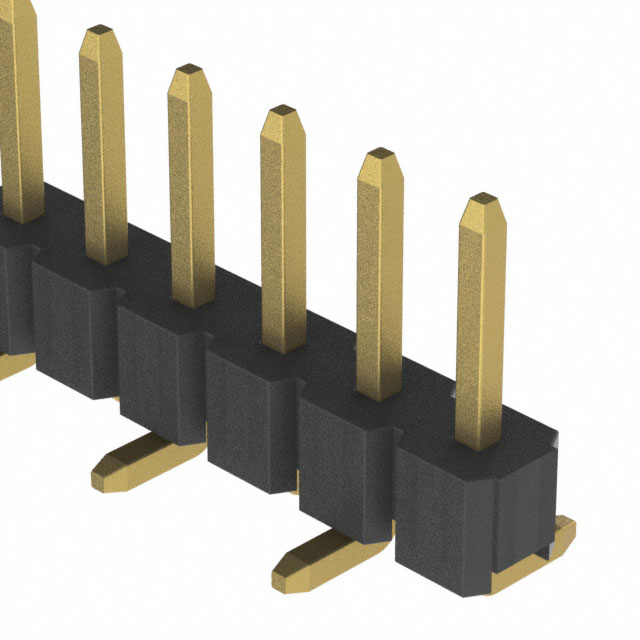

CONN HEADER SMD 16POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

2PH1-16-UA-SMT-B

Active

Adam Tech

CONN HEADER SMD 16POS 2MM

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2PH1-16-UA-SMT-B

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	4 mm
Contact Length - Mating	0.157 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.079 in
Insulation Height	2 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	250 VAC

2PH1 Series

Part	Insulation Material	Termination	Contact Length - Post [x]	Contact Length - Post	Voltage Rating	Contact Finish - Post	Material Flammability Rating	Shrouding	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Connector Type	Pitch - Mating [x]	Pitch - Mating [x]	Fastening Type	Number of Rows	Contact Material	Contact Shape	Overall Contact Length	Overall Contact Length	Contact Finish - Mating	Number of Positions	Mounting Type	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Contact Type	Contact Finish Thickness - Post	Insulation Color	Contact Finish Thickness - Mating	Number of Positions
Adam Tech 2PH1-06-UA	Polybutylene Terephthalate (PBT)	Solder	0.11 in	2.79 mm	250 VAC	Gold	UL94 V-0	Unshrouded	105 ░C	-55 °C	All	Header	0.079 in	2 mm	Push-Pull	1	Brass	Square	8.7 mm	0.343 in	Gold	6	Through Hole	0.079 in	2 mm	0.154 in	3.91 mm	Male Pin	Flash	Black	Flash
Adam Tech 2PH1-16-UA-SMT-B	Thermoplastic	Solder			250 VAC	Gold	UL94 V-0	Unshrouded	105 ░C	-40 °C	All	Header	0.079 in	2 mm	Push-Pull	1	Brass	Square			Gold		Surface Mount	0.079 in	2 mm	0.157 in	4 mm	Male Pin	Flash	Black	Flash	16
Adam Tech 2PH1-06-UA-SMT-A	Thermoplastic	Solder			250 VAC	Gold	UL94 V-0	Unshrouded	105 ░C	-40 °C	All	Header	0.079 in	2 mm	Push-Pull	1	Brass	Square			Gold	6	Surface Mount	0.079 in	2 mm	0.157 in	4 mm	Male Pin	Flash	Black	Flash
Adam Tech 2PH1-09-UA	Polybutylene Terephthalate (PBT)	Solder	0.11 in	2.79 mm	250 VAC	Gold	UL94 V-0	Unshrouded	105 ░C	-55 °C	All	Header	0.079 in	2 mm	Push-Pull	1	Brass	Square	8.7 mm	0.343 in	Gold	9	Through Hole	0.079 in	2 mm	0.154 in	3.91 mm	Male Pin	Flash	Black	Flash
Adam Tech 2PH1-02-UA	Polybutylene Terephthalate (PBT)	Solder	0.11 in	2.79 mm	250 VAC	Gold	UL94 V-0	Unshrouded	105 ░C	-55 °C	All	Header	0.079 in	2 mm	Push-Pull	1	Brass	Square	8.7 mm	0.343 in	Gold	2	Through Hole	0.079 in	2 mm	0.154 in	3.91 mm	Male Pin	Flash	Black	Flash
Adam Tech 2PH1-16-UA-SMT-A	Thermoplastic	Solder			250 VAC	Gold	UL94 V-0	Unshrouded	105 ░C	-40 °C	All	Header	0.079 in	2 mm	Push-Pull	1	Brass	Square			Gold		Surface Mount	0.079 in	2 mm	0.157 in	4 mm	Male Pin	Flash	Black	Flash	16
Adam Tech 2PH1-13-UA	Polybutylene Terephthalate (PBT)	Solder	0.11 in	2.79 mm	250 VAC	Gold	UL94 V-0	Unshrouded	105 ░C	-55 °C	All	Header	0.079 in	2 mm	Push-Pull	1	Brass	Square	8.7 mm	0.343 in	Gold	13	Through Hole	0.079 in	2 mm	0.154 in	3.91 mm	Male Pin	Flash	Black	Flash
Adam Tech 2PH1-12-UA	Polybutylene Terephthalate (PBT)	Solder	0.11 in	2.79 mm	250 VAC	Gold	UL94 V-0	Unshrouded	105 ░C	-55 °C	All	Header	0.079 in	2 mm	Push-Pull	1	Brass	Square	8.7 mm	0.343 in	Gold	12	Through Hole	0.079 in	2 mm	0.154 in	3.91 mm	Male Pin	Flash	Black	Flash
Adam Tech 2PH1-10-UA-SMT-A	Thermoplastic	Solder			250 VAC	Gold	UL94 V-0	Unshrouded	105 ░C	-40 °C	All	Header	0.079 in	2 mm	Push-Pull	1	Brass	Square			Gold	10	Surface Mount	0.079 in	2 mm	0.157 in	4 mm	Male Pin	Flash	Black	Flash
Adam Tech 2PH1-02-UA-SMT-B	Thermoplastic	Solder			250 VAC	Gold	UL94 V-0	Unshrouded	105 ░C	-40 °C	All	Header	0.079 in	2 mm	Push-Pull	1	Brass	Square			Gold	2	Surface Mount	0.079 in	2 mm	0.157 in	4 mm	Male Pin	Flash	Black	Flash
