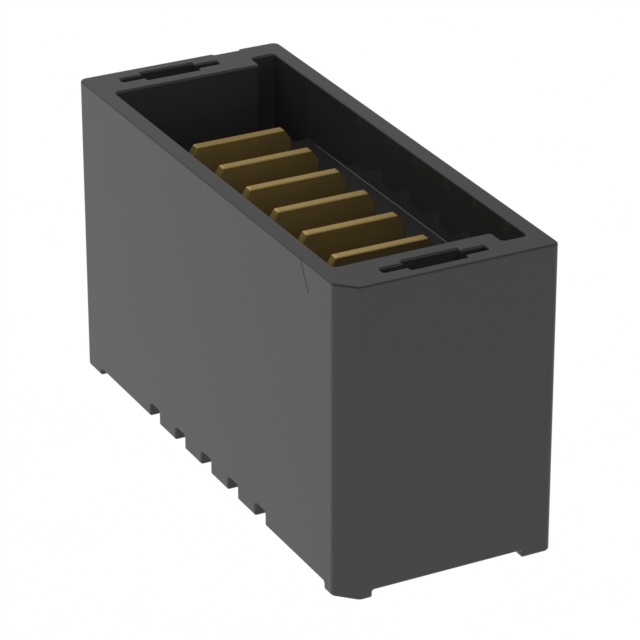

UMPT-06-07.5-L-V-S-TR

Active

Samtec Inc.

CONN HDR 6POS 2.00MM SMD SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UMPT-06-07.5-L-V-S-TR

Active

Samtec Inc.

CONN HDR 6POS 2.00MM SMD SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UMPT-06-07.5-L-V-S-TR

Color	Black
Connector Type	Male Blades, Header
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	6
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Solder
Voltage Rating	650 V

UMPT-06 Series

Part	Contact Material	Pitch [x]	Pitch [x]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Features	Material - Insulation	Color	Number of Positions	Termination	Number of Rows	Mounting Type	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type
Samtec Inc. UMPT-06-01-L-RA-WT-TR	Copper Alloy	0.079 in	2 mm	Gold	10 Áin	0.25 Ám	Header Male Blades	Solder Retention	Liquid Crystal Polymer (LCP)	Black	6	Solder	1	Surface Mount Right Angle
Samtec Inc. UMPT-06-02.5-L-V-S-TR	Copper Alloy	0.079 in	2 mm	Gold	10 Áin	0.25 Ám	Header Male Blades		Liquid Crystal Polymer (LCP)	Black	6	Solder	1	Surface Mount	650 V	-55 °C	125 °C
Samtec Inc. UMPT-06-01-L-RA-WT-M-TR	Copper Alloy	0.079 in	2 mm	Gold	10 Áin	0.25 Ám	Header Male Blades	Solder Retention	Liquid Crystal Polymer (LCP)	Black	6	Solder	1	Surface Mount Right Angle				Latch Lock
Samtec Inc. UMPT-06-07.5-L-V-S-W-TR	Copper Alloy	0.079 in	2 mm	Gold	10 Áin	0.25 Ám	Header Male Blades	Solder Retention	Liquid Crystal Polymer (LCP)	Black	6	Solder	1	Surface Mount	650 V	-55 °C	125 °C
Samtec Inc. UMPT-06-07.5-L-V-S-TR	Copper Alloy	0.079 in	2 mm	Gold	10 Áin	0.25 Ám	Header Male Blades		Liquid Crystal Polymer (LCP)	Black	6	Solder	1	Surface Mount	650 V	-55 °C	125 °C
Samtec Inc. UMPT-06-02.5-L-V-S-W-P-TR	Copper Alloy	0.079 in	2 mm	Gold	10 Áin	0.25 Ám	Header Male Blades	Solder Retention	Liquid Crystal Polymer (LCP)	Black	6	Solder	1	Surface Mount	650 V	-55 °C	125 °C	Latch Lock
Samtec Inc. UMPT-06-06.5-L-V-S-W-TR	Copper Alloy	0.079 in	2 mm	Gold	10 Áin	0.25 Ám	Header Male Blades	Solder Retention	Liquid Crystal Polymer (LCP)	Black	6	Solder	1	Surface Mount	650 V	-55 °C	125 °C
Samtec Inc. UMPT-06-01-S-RA-WT-TR	Copper Alloy	0.079 in	2 mm	Gold	30 Áin	0.76 Ám	Header Male Blades	Solder Retention	Liquid Crystal Polymer (LCP)	Black	6	Solder	1	Surface Mount Right Angle
Samtec Inc. UMPT-06-02.5-L-V-S-W-TR	Copper Alloy	0.079 in	2 mm	Gold	10 Áin	0.25 Ám	Header Male Blades	Solder Retention	Liquid Crystal Polymer (LCP)	Black	6	Solder	1	Surface Mount	650 V	-55 °C	125 °C
Samtec Inc. UMPT-06-02.5-L-V-S-W-M-TR	Copper Alloy	0.079 in	2 mm	Gold	10 Áin	0.25 Ám	Header Male Blades	Solder Retention	Liquid Crystal Polymer (LCP)	Black	6	Solder	1	Surface Mount	650 V	-55 °C	125 °C	Latch Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 5.70
		25	$ 5.15
		50	$ 4.79
	Tape & Reel (TR)	150	$ 4.76

Description

General part information

UMPT-06 Series

6 Position Header, Male Blades Connector Solder 0.079" (2.00mm) Surface Mount
