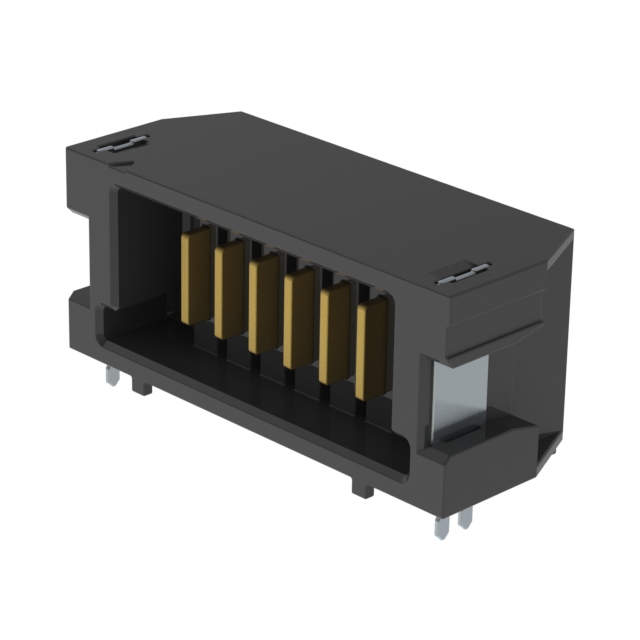

UMPT-06-01-L-RA-WT-M-TR

Active

Samtec Inc.

CONN HDR 6POS 2.00MM R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UMPT-06-01-L-RA-WT-M-TR

Active

Samtec Inc.

CONN HDR 6POS 2.00MM R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UMPT-06-01-L-RA-WT-M-TR

Color	Black
Connector Type	Male Blades, Header
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Fastening Type	Latch Lock
Features	Solder Retention
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount, Right Angle
Number of Positions	6
Number of Rows	1
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Solder

UMPT-06 Series

Part	Contact Material	Pitch [x]	Pitch [x]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Features	Material - Insulation	Color	Number of Positions	Termination	Number of Rows	Mounting Type	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type
Samtec Inc. UMPT-06-01-L-RA-WT-TR	Copper Alloy	0.079 in	2 mm	Gold	10 Áin	0.25 Ám	Header Male Blades	Solder Retention	Liquid Crystal Polymer (LCP)	Black	6	Solder	1	Surface Mount Right Angle
Samtec Inc. UMPT-06-02.5-L-V-S-TR	Copper Alloy	0.079 in	2 mm	Gold	10 Áin	0.25 Ám	Header Male Blades		Liquid Crystal Polymer (LCP)	Black	6	Solder	1	Surface Mount	650 V	-55 °C	125 °C
Samtec Inc. UMPT-06-01-L-RA-WT-M-TR	Copper Alloy	0.079 in	2 mm	Gold	10 Áin	0.25 Ám	Header Male Blades	Solder Retention	Liquid Crystal Polymer (LCP)	Black	6	Solder	1	Surface Mount Right Angle				Latch Lock
Samtec Inc. UMPT-06-07.5-L-V-S-W-TR	Copper Alloy	0.079 in	2 mm	Gold	10 Áin	0.25 Ám	Header Male Blades	Solder Retention	Liquid Crystal Polymer (LCP)	Black	6	Solder	1	Surface Mount	650 V	-55 °C	125 °C
Samtec Inc. UMPT-06-07.5-L-V-S-TR	Copper Alloy	0.079 in	2 mm	Gold	10 Áin	0.25 Ám	Header Male Blades		Liquid Crystal Polymer (LCP)	Black	6	Solder	1	Surface Mount	650 V	-55 °C	125 °C
Samtec Inc. UMPT-06-02.5-L-V-S-W-P-TR	Copper Alloy	0.079 in	2 mm	Gold	10 Áin	0.25 Ám	Header Male Blades	Solder Retention	Liquid Crystal Polymer (LCP)	Black	6	Solder	1	Surface Mount	650 V	-55 °C	125 °C	Latch Lock
Samtec Inc. UMPT-06-06.5-L-V-S-W-TR	Copper Alloy	0.079 in	2 mm	Gold	10 Áin	0.25 Ám	Header Male Blades	Solder Retention	Liquid Crystal Polymer (LCP)	Black	6	Solder	1	Surface Mount	650 V	-55 °C	125 °C
Samtec Inc. UMPT-06-01-S-RA-WT-TR	Copper Alloy	0.079 in	2 mm	Gold	30 Áin	0.76 Ám	Header Male Blades	Solder Retention	Liquid Crystal Polymer (LCP)	Black	6	Solder	1	Surface Mount Right Angle
Samtec Inc. UMPT-06-02.5-L-V-S-W-TR	Copper Alloy	0.079 in	2 mm	Gold	10 Áin	0.25 Ám	Header Male Blades	Solder Retention	Liquid Crystal Polymer (LCP)	Black	6	Solder	1	Surface Mount	650 V	-55 °C	125 °C
Samtec Inc. UMPT-06-02.5-L-V-S-W-M-TR	Copper Alloy	0.079 in	2 mm	Gold	10 Áin	0.25 Ám	Header Male Blades	Solder Retention	Liquid Crystal Polymer (LCP)	Black	6	Solder	1	Surface Mount	650 V	-55 °C	125 °C	Latch Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 6.38
		25	$ 5.76
		50	$ 5.38
	Tape & Reel (TR)	125	$ 5.38

Description

General part information

UMPT-06 Series

6 Position Header, Male Blades Connector Solder 0.079" (2.00mm) Surface Mount, Right Angle

Documents

Technical documentation and resources
